Grizzly G0776 - Section 8: Wiring - Control Panel and Power Wiring; Control Panel Wiring Diagram; Power Connection Wiring Diagram

-94-
Model G0776 (Mfd. Since 7/14)
3
Power
Light
Emergency
Stop
1
2
NC
LA125H-
BE102C
X1X2
AD62-
22D/S
3
4
NO
Ground
LA125H-
BE101C
240VAC
3A
240VAC 3A
AC-15 DC-13
220V-4.5A 220V-0.3A
Coolant Pump
ON/OFF Switch
Jog Button
Control Panel
(As Viewed from Behind)
14
4
0
2
2
2
1
1
PE
Minger
Minger
Minger
DELIXI LAY3
1
4
2
3
1

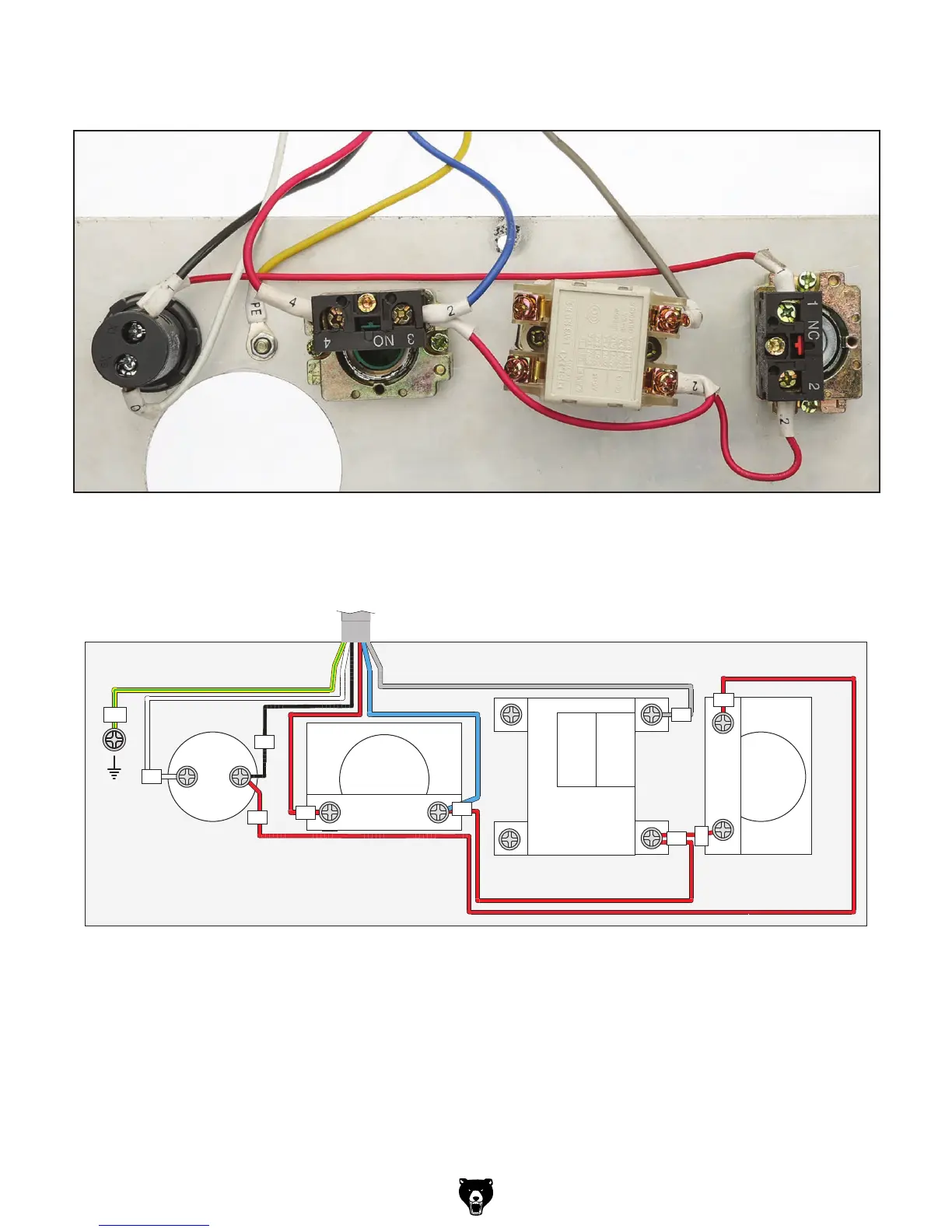

Control Panel Wiring
Figure 154. Control panel wiring.
To Electrical Cabinet
Page 91
