-66-
Model G0776 (Mfd. Since 7/14)
Lubrication
Use the information in the charts below as a daily
guide for lubrication tasks. We recommend using
Grizzly T23962 (ISO 68) or T23963 (ISO 32) lubri-
cants (see Accessories, Page 60) for most of the
lubrication tasks.
NOTICE
The recommended lubrication is based on
light-to-medium usage. Keeping in mind
that lubrication helps to protect the value
and operation of the lathe, these lubrication
tasks may need to be performed more fre-
quently than recommended here, depend-
ing on usage.
Failure to follow reasonable lubrication
practices as instructed in this manual could
lead to premature failure of lathe compo-
nents and will void the warranty.
Headstock
Oil Type .... Grizzly T23963 or ISO 32 Equivalent
Oil Amount .......................................... 2.3 Quarts
Check/Add Frequency ................................. Daily
Change ................. Every 1000 Operating Hours
The headstock gearing is lubricated by an oil bath
that distributes the lubricant with the motion of the
gears, much like an automotive manual transmis-
sion. Change the oil after the first 300 hours of
use, then every 1000 hours.
Checking Oil Level
The headstock reservoir has the proper amount of
oil when the oil level in the sight glass is approxi-
mately halfway. The oil sight glass is located
on the right side of the headstock, as shown in
Figure 115.

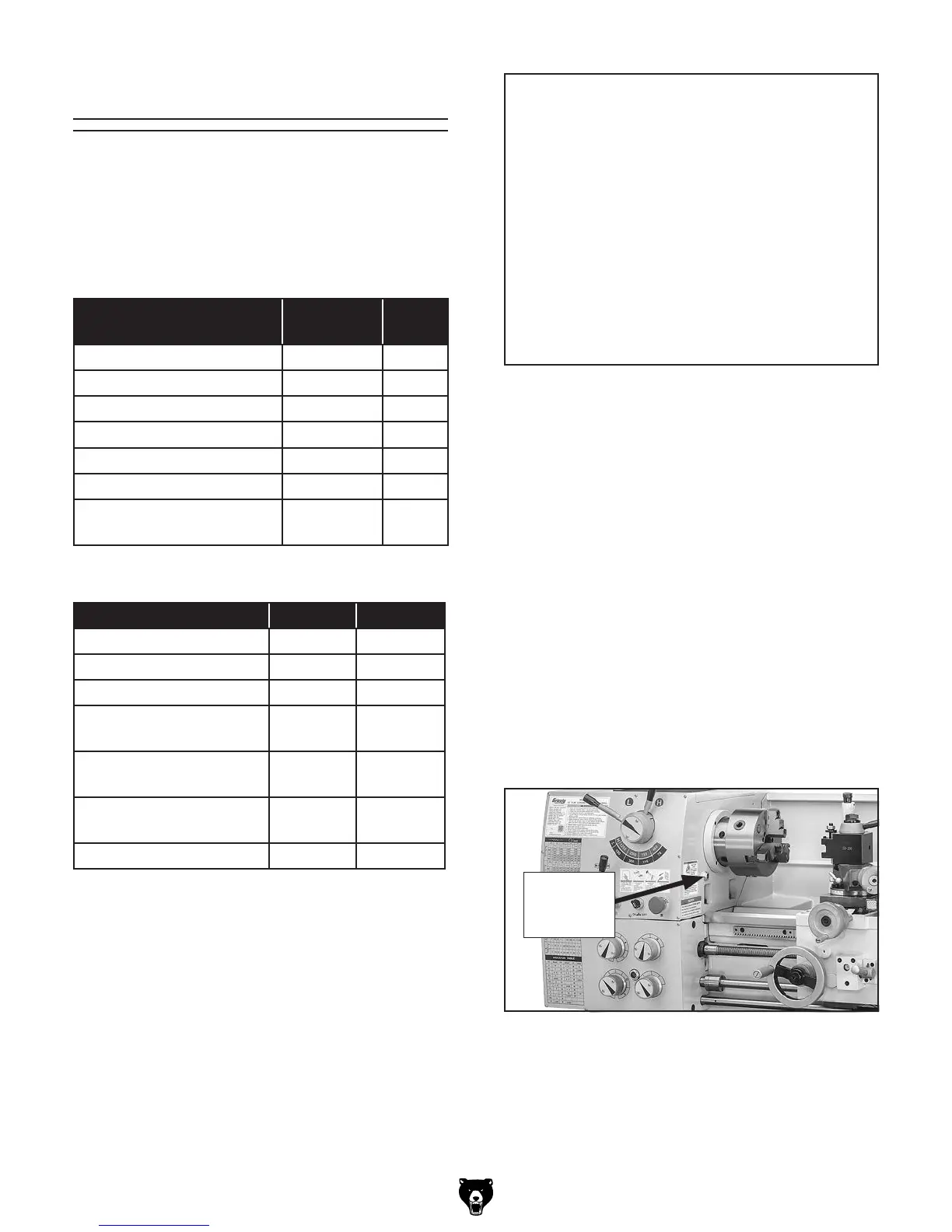

Figure 115. Location of headstock oil sight
glass.
Headstock
Oil Sight
Glass
Lubrication Task Frequency
Page
Ref.
Headstock Daily
63
Quick-Change Gearbox Daily
67
Apron Daily
68
Bedways Daily
70
Longitudinal Leadscrew Daily
70
Ball Oilers Daily
68
End Gears
Every 1000
Hours
69
Lubrication Frequency
Lubrication Task Oil Type Amount
Headstock ISO 32
2.3 Qt.
Quick-Change Gearbox ISO 68
0.68 Qt.
Apron ISO 68
0.23 Qt.
Bedways ISO 68
As
Needed
Longitudinal Leadscrew ISO 68
As
Needed
Ball Oilers ISO 32
1–2
Squirts
End Gears NLGI #2
Dab
Lubrication Amount & Type
Items Needed Qty
Hex Wrench 6mm .............................................. 1
Open-End Wrench 13mm .................................. 1
Open-End Wrench 14mm .................................. 1
Open-End Wrench 24mm .................................. 1
5 Gallon Catch Pan ........................................... 1
Pump-Type Oil Can w/Plastic Cone Tip ............ 1
(see H7616 in Accessories section)
