Model G0776 (Mfd. Since 7/14)
-37-
Graduated Dial
Increments ................................................. 0.001"
One Full Revolution ................................... 0.10 0"
Increments on Quill
Inch ................................. 0"-4" in
1
⁄8" Increments
Metric ....................0–102mm in 1mm Increments
Tailstock Quill Specs
Positioning Tailstock
1. Rotate tailstock lock lever clockwise (facing
machine) to unlock tailstock from bedways.
2.
Slide tailstock to desired position by pushing
it along the bedways.
3.
Rotate tailstock lock lever counterclockwise
to lock tailstock against bedways.
Using Quill
1. Rotate quill lock lever clockwise to loosen
quill.
2.
Turn quill handwheel clockwise to move quill
toward spindle or counterclockwise to move it
away from spindle.
3.
Rotate quill lock lever counterclockwise to
secure quill.
Installing Tooling

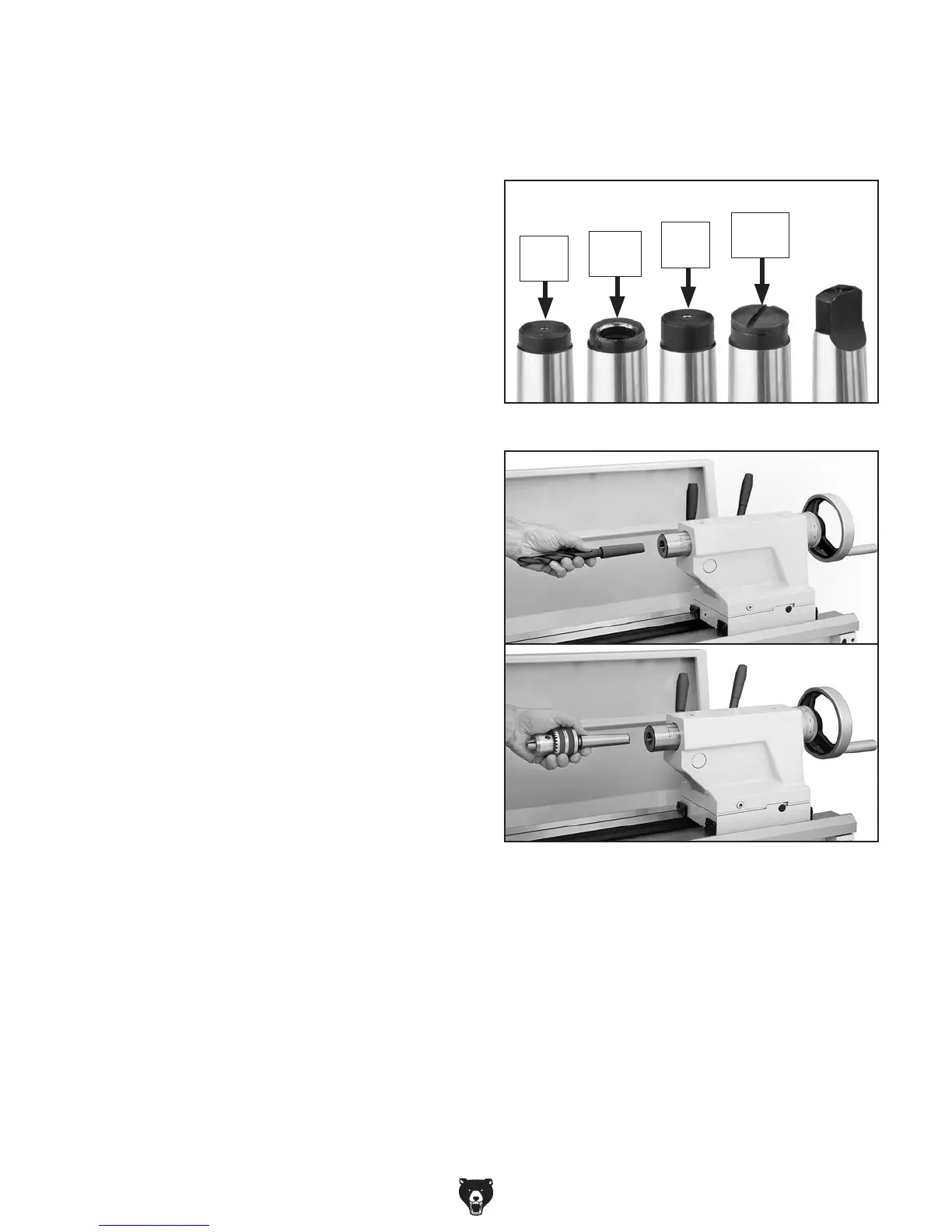

Figure 38. Example photos of inserting tools into
the tailstock.
Tang
Figure 37. Types of tapered arbors and tooling.
Screw
End
Solid
End
Open
End
Solid
End
This tailstock uses a quill that accepts tapered
arbors and drill bits (see the
Figures below for
examples).
