Model G0776 (Mfd. Since 7/14)
Carriage
F. Quick-Change Tool Post: Allows the opera-
tor to quickly load and unload tools.
G. Compound Rest Handwheel: Moves tool
toward and away from workpiece at preset
angle.
H. Carriage Lock: Secures carriage in place for
greater rigidity when it should not move.
I. Thread Dial: Indicates when to engage the
half nut during inch threading operations.
J. Spindle Lever: Starts, stops, and reverses
direction of spindle rotation.
K. Half Nut Lever: Engages/disengages half
nut for threading operations.
L. Carriage Handwheel: Moves carriage along
the bed.
M. Cross Slide Handwheel: Moves cross slide
toward and away from workpiece.
N. Feed Selection Lever: Selects power feed
for carriage or cross slide.
Tailstock
O. Quill Lock Lever: Secures quill in position.
P. Tailstock Lock Lever: Secures tailstock in
position along the bedway.
Q. Graduated Scale: Indicates quill movement
in increments of 0.001" with one full revolu-
tion equaling 0.100" of quill travel.
R. Quill: Holds centers and tooling.
S. Tailstock Offset Screws: Adjusts tailstock
offset left or right from spindle centerline
(1 of 2).
T. Quill Handwheel: Moves quill toward or
away from spindle.
U. Offset Scale: Indicates relative distance of
tailstock offset from spindle centerline.
V. Offset Locking Set Screw: Locks tailstock
in position left or right of spindle centerline.

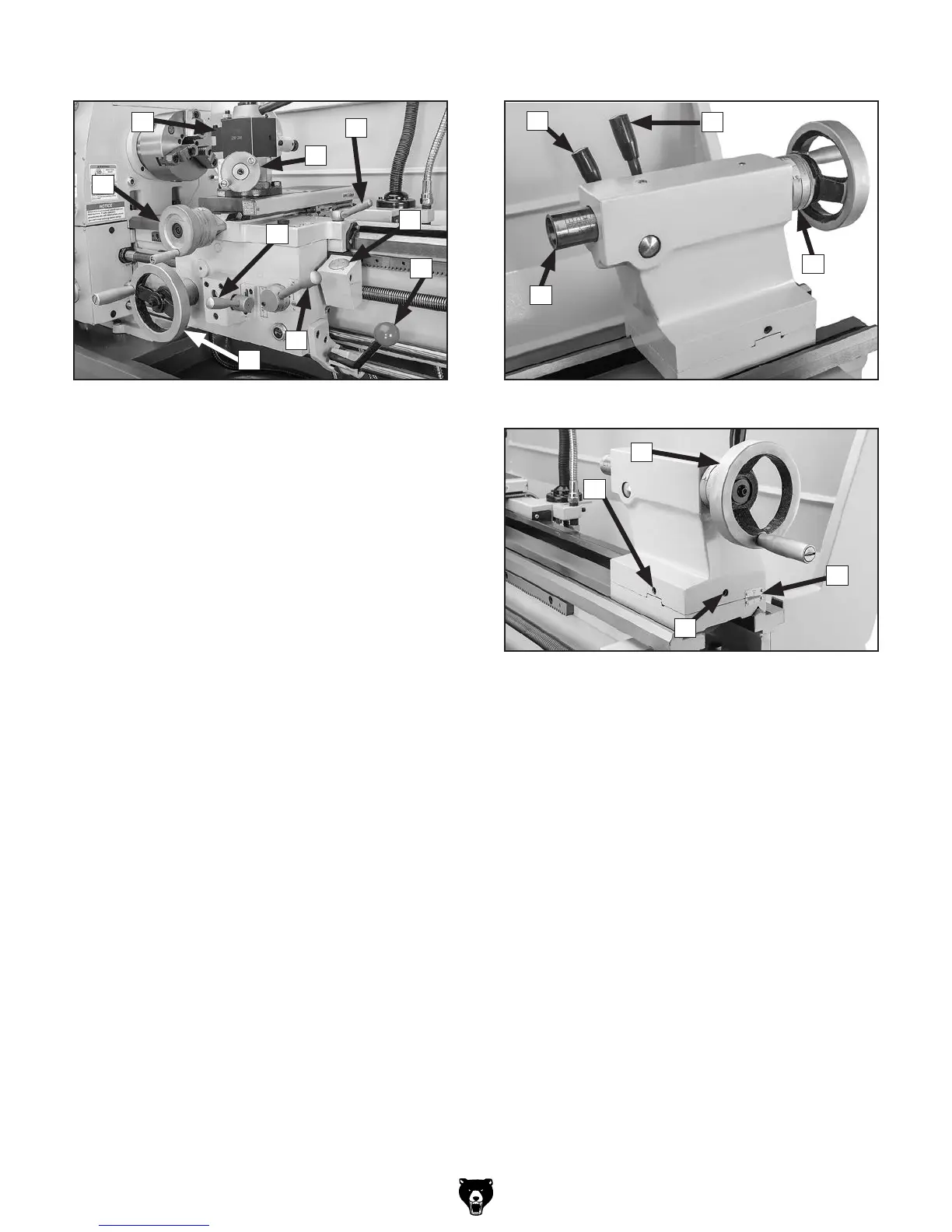

Figure 3. Carriage controls.
F
G
H
I
J
K
L
M
N
Figure 4. Tailstock controls.
O
P
Q
R
Figure 5. Additional tailstock controls.
S
T
U
V
