10. Standard control panel
The pumps are fitted with this control panel as
standard.

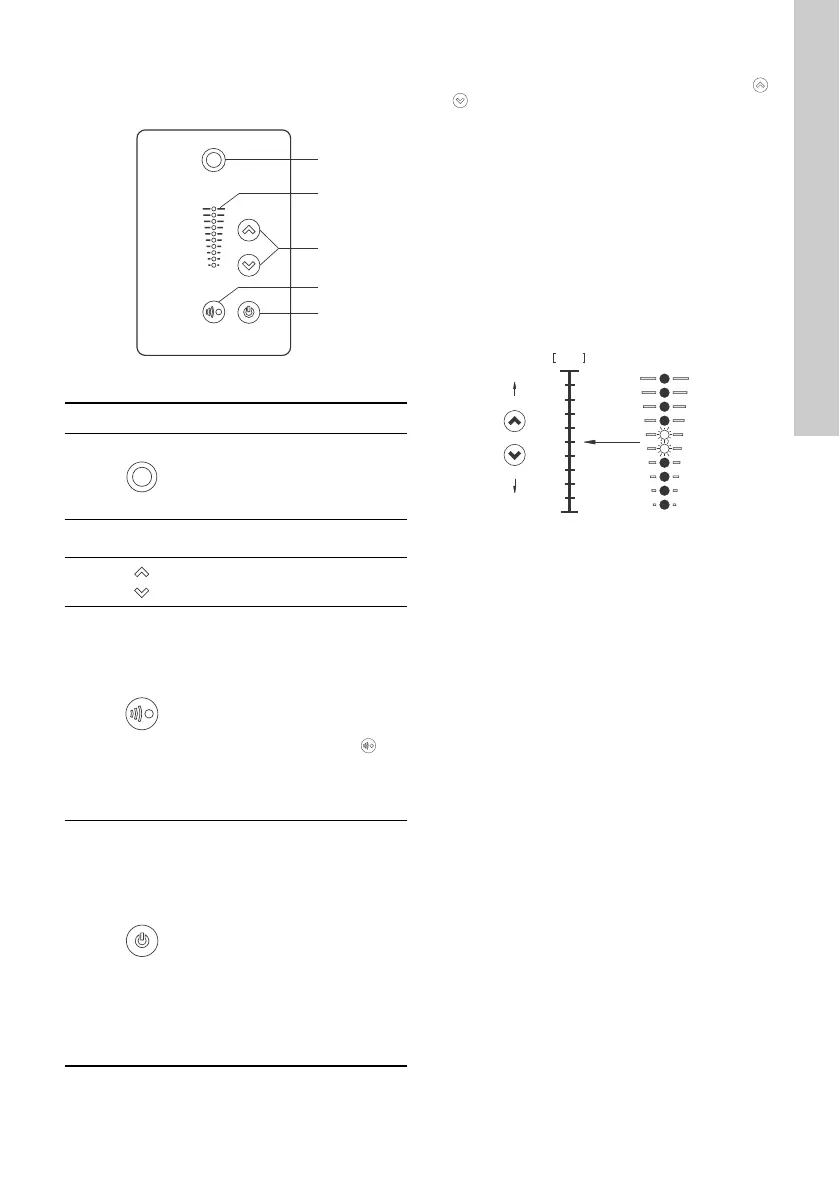

Fig. 17 Standard control panel
10.1 Setpoint setting
Set the desired setpoint of the pump by pressing
or . The green light fields on the control panel
indicate the setpoint set.
10.1.1 Pump in constant pressure control mode
The following example applies to a pump in an
application where a pressure sensor gives a
feedback to the pump. If the sensor is retrofitted to
the pump, you must set it up manually as the pump
does not automatically register a connected sensor.
See section 13.6 Analog inputs.
Figure 18 shows that the light fields 5 and 6 are
activated, indicating a desired setpoint of 3 bar with
a sensor measuring range from 0 to 6 bar. The
setting range is equal to the sensor measuring
range.
Fig. 18 Setpoint set to 3 bar, constant pressure
control
TM05 4848 3512
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the
pump.
For further information, see
section 16. Grundfos Eye.
2-
Light fields for indication of
setpoint.
3
Up and down. Changes the
setpoint.
4
Allows radio communication with
Grundfos GO and other products
of the same type.
When you try to establish radio
communication between the
pump and Grundfos GO or
another pump, the green indicator
light in Grundfos Eye on the pump
flashes continuously. Press on
the pump control panel to allow
radio communication with
Grundfos GO and other products
of the same type.
5
Makes the pump ready for
operation or starts and stops the
pump.
Start
If you press the button when the
pump is stopped, the pump only
starts if no other functions with
higher priority have been
enabled. See section 15. Priority
of settings.
Stop
If you press the button when the
pump is running, the pump always
stops. The "Stop" text next to the
button is on.
TM05 4894 3512
