11. Advanced control panel
The pumps can be fitted with the advanced control
panel as an option.

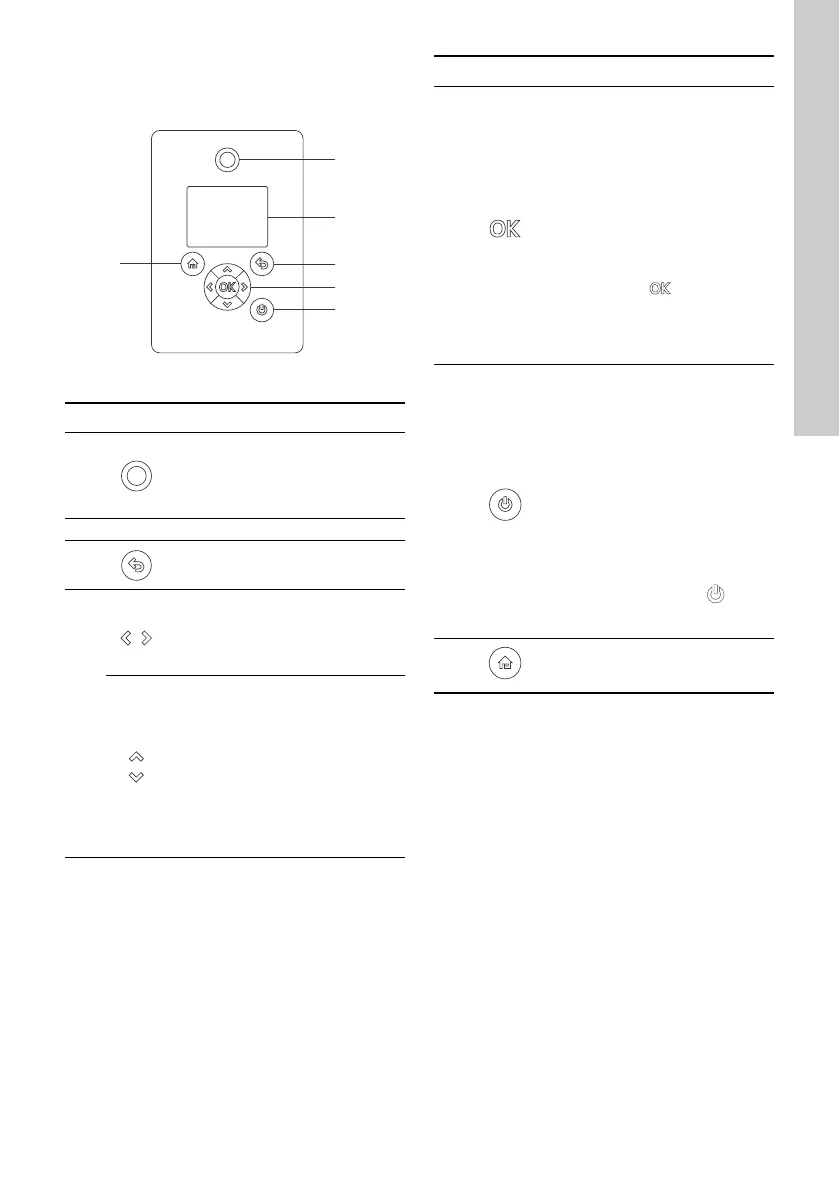

Fig. 22 Advanced control panel
TM05 4849 1013
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the
pump.
For further information, see section
16. Grundfos Eye.
2 - Graphical colour display.
3 Goes one step back.
4
Navigates between main menus,
displays and digits.
When you change the menu, the
display always shows the top
display of the new menu.
Navigates between submenus.
Changes value settings.
Note: If you have disabled the
possibility to make settings with the
Enable/disable settings function,
then you can enable it again
temporarily by pressing these
buttons simultaneously for at least
5 seconds. See section
13.30 "Buttons on product"
(Enable/disable settings).
4
Saves changed values, resets
alarms and expands the value field.
Enables radio communication with
Grundfos GO and other products of
the same type.
When you try to establish radio
communication between the pump
and Grundfos GO or another pump,
the green indicator light in Grundfos
Eye flashes. A note also appears in
the pump display stating that a
wireless device wants to connect to
the pump. Press on the pump
control panel to allow radio
communication with Grundfos GO
and other products of the same
type.
5
Makes the pump ready for
operation/starts and stops the
pump.
Start:
If you press the button when the
pump is stopped, the pump only
starts if no other functions with
higher priority have been enabled.
See section 15. Priority of settings.
Stop:
If you press the button when the
pump is running, the pump is
always stopped. When you stop the
pump via this button, the
icon
appears in the bottom of the
display.
6 Goes to the Home menu.
Pos. Symbol Description
