Grundfos CME User Manual

English (GB)
28
13. Description of functions
13.1 Setpoint
You can set the setpoint for all control modes when
you have selected the desired control mode. See
section 13.5 "Control mode".
Factory setting
See section 24. Factory settings.
13.2 Operating mode
Possible operating modes:
• Normal
The pump runs according to the selected control
mode.
•Stop
The pump stops.
•Min.
You can use the minimum curve mode in periods
in which a minimum flow is required. When
operating according to the minimum curve, the
pump is operating like an uncontrolled pump.
•Max.
You can use the maximum curve mode in periods
in which a maximum flow is required. When
operating according to the maximum curve, the
pump is operating like an uncontrolled pump.
• Manual
The pump is operating at a manually set speed.
In Manual the setpoint via bus is over-ruled. See
section 13.3 Set manual speed.
• "User-defined speed"
The motor is operating at a speed set by the
user. See section 13.4 "Set user-defined speed".

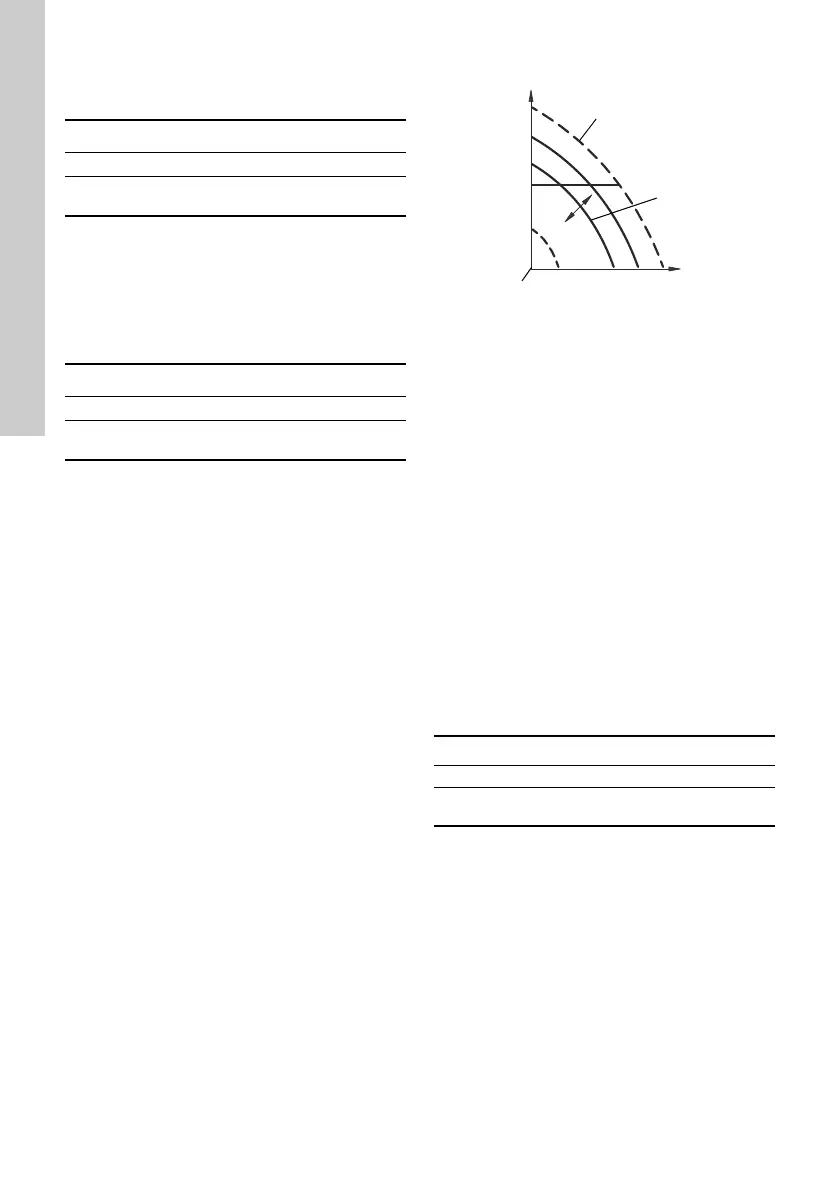

All operating modes are illustrated in fig. 25.
Fig. 25 Operating modes
Factory setting
See section 24. Factory settings.
13.3 Set manual speed
This menu is only available in the advanced control
panel. With Grundfos GO, you set the speed via the
Setpoint menu.
You can set the pump speed in % of the maximum
speed. When you have set the operating mode to
Manual, the pump starts running at the set speed.
The speed can then be changed manually via
Grundfos GO or via the advanced control panel.
Factory setting
See section 24. Factory settings.
13.4 "Set user-defined speed"
You can set the motor speed in % of the maximum
speed. When you have set the operating mode to
"User-defined speed", the motor runs at the set
speed.
13.5 "Control mode"
Possible control modes:
• "Constant pressure" (Const. pressure)
• "Constant temperature" (Const. temp.)
• "Constant differential pressure" (Con. diff. press.)
• "Constant differential temperature" (Con. diff.
temp.)
• "Constant flow rate" (Const. flow rate)
• "Constant level" (Const. level)
• "Constant other value" (Const. other val.)
• "Constant curve" (Const. curve.")
Factory setting
See section 24. Factory settings.
Pump variant Setpoint
CME ●
CRE, CRIE, CRNE,
SPKE, MTRE
●
Pump variant Operating mode
CME ●
CRE, CRIE, CRNE,
SPKE, MTRE
●
TM06 4024 1515
Pump variant Control mode
CME ●
CRE, CRIE, CRNE,
SPKE, MTRE
●
Q
H
Q
H
Max.
Min.
Normal
Normal
Manual
Stop

Grundfos CME Specifications

General

Liquid temperature range	0 °C to +60 °C
Maximum operating pressure	10 bar
Series	CME
Frequency	50/60 Hz
Max Pressure	10 bar
Pump Type	Centrifugal
Material	Stainless steel
Applications	pressure boosting, irrigation
Pumped liquid	Clean water
Approvals	CE
Max Liquid Temperature	60°C
Power Supply	1-phase or 3-phase
