16. Grundfos Eye

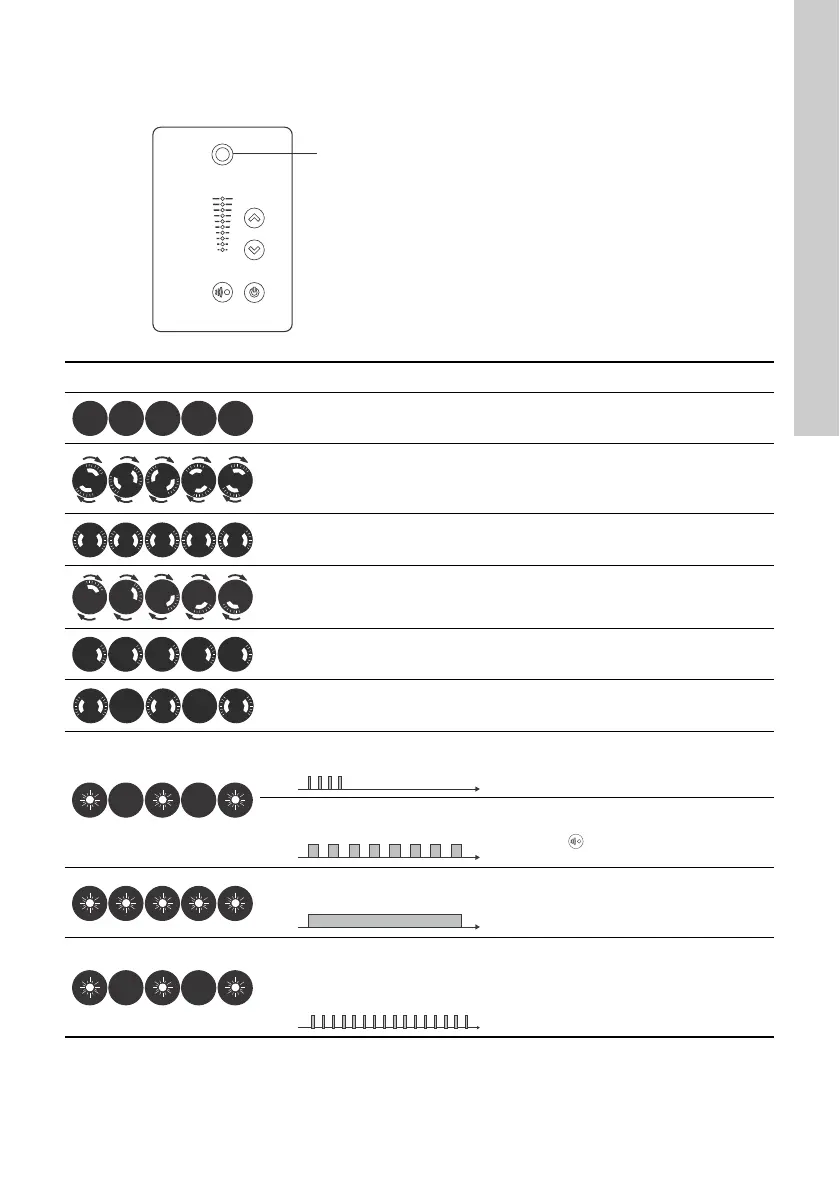

The operating condition of the pump is indicated by
Grundfos Eye on the control panel. See fig. 57, A.
Fig. 57 Grundfos Eye
TM05 5993 4312
A
Grundfos Eye Indication Description
No lights are on.
The power is off.
The pump is not running.
The two opposite green indicator lights
are rotating in the direction of rotation
of the pump when seen from the
non-drive end.
The power is on.
The pump is running.
The two opposite green indicator lights
are permanently on.
The power is on.
The pump is not running.
One yellow indicator light is rotating in
the direction of rotation of the pump
when seen from the non-drive end.
Warning.
The pump is running.
One yellow indicator light is
permanently on.
Warning.
The pump is stopped.
The two opposite red indicator lights
flash simultaneously.
Alarm.
The pump is stopped.
The green indicator light in the middle
flashes quickly four times.
This is a feedback signal which the
pump gives in order to ensure
identification of itself.
The green indicator light in the middle
flashes continuously.
Grundfos GO or another pump is
trying to communicate with the pump.
Press on the pump control panel
to allow communication.
The green indicator light in the middle
is permanently on.
Remote control with Grundfos GO via
radio.
The pump is communicating with
Grundfos GO via radio connection.
The green indicator light in the middle
flashes quickly while Grundfos Go is
exchanging data with the pump. It takes
a few seconds.
Remote control with Grundfos GO via
infrared light.
The pump is receiving data from
Grundfos GO via infrared
communication.
