20
Switch model Available power source Connection procedure reference
RPS (RPS1600-A)
Connecting the DC power cord for the
fixed DC power module
S5560S-28F-SI
S5560S-28DP-SI
S5130S-28F-SI
• AC power source
• 240 VDC high-voltage
power source
Connecting the power cord for a
PSR75-12A power module
Other switch models AC power source
Connecting the AC power cord for the
fixed AC power module
Connecting the AC power cord for the fixed AC power
module
1. Connect the female connector of the AC power cord to the AC-input power receptacle on the
switch. See Figure 24.
2. Use a cable tie to secure the power cord to the handle near the AC-input power receptacle. See
Figure 25.
3. Connect the other end of the power cord to an AC power source.

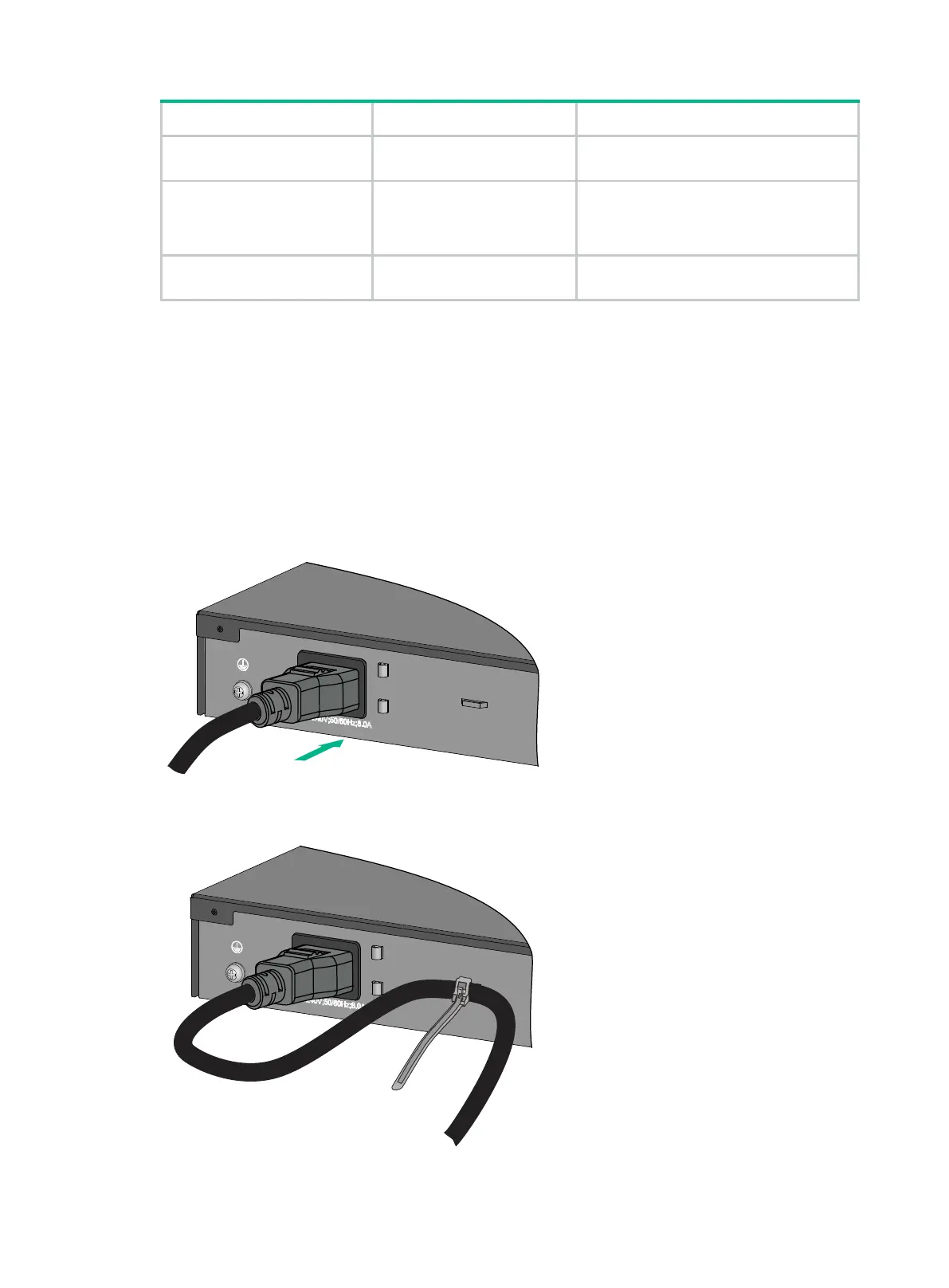

Figure 24 Connecting the AC power cord for the fixed AC power module (1)
Figure 25 Connecting the AC power cord for the fixed AC power module (2)
