S5560S-28F-SI

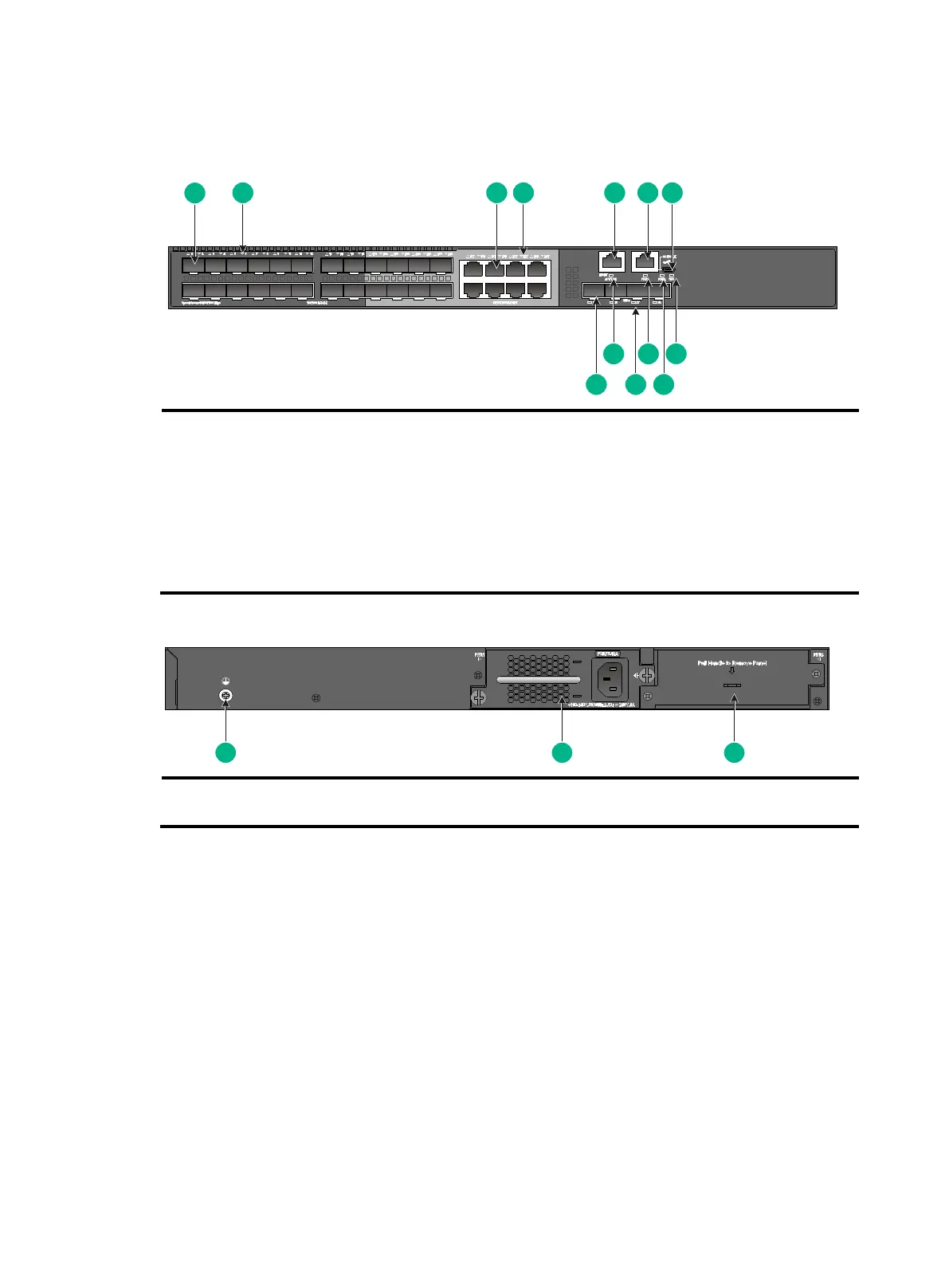

Figure 48 Front panel
(1) SFP port
(2) SFP port LED
(3) 10/100/1000BASE-T autosensing Ethernet port
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) Management Ethernet port
(6) Console port (CONSOLE)
(7) Micro USB console port
(8) System status LED (SYS)
(9) Power module 2 status LED (PWR2)
(10) Power module 1 status LED (PWR1)
(11) SFP+ port LED
(12) Management Ethernet port LED (ACT/LINK)
(13) SFP+ port
Figure 49 Rear panel
(1) Grounding screw
(2) Power module slot 1 (PWR1)
(3) Power module slot 2 (PWR2)
An S5560S-28F-SI switch comes with power module slot 1 installed with a PSR75-12A power
module and power module slot 2 installed with a filler panel. For information about installing and
removing a power module, see "Installing and removing a power module."
