H3C S5000V3-EI User Manual

55
S5110V2-28P-SI

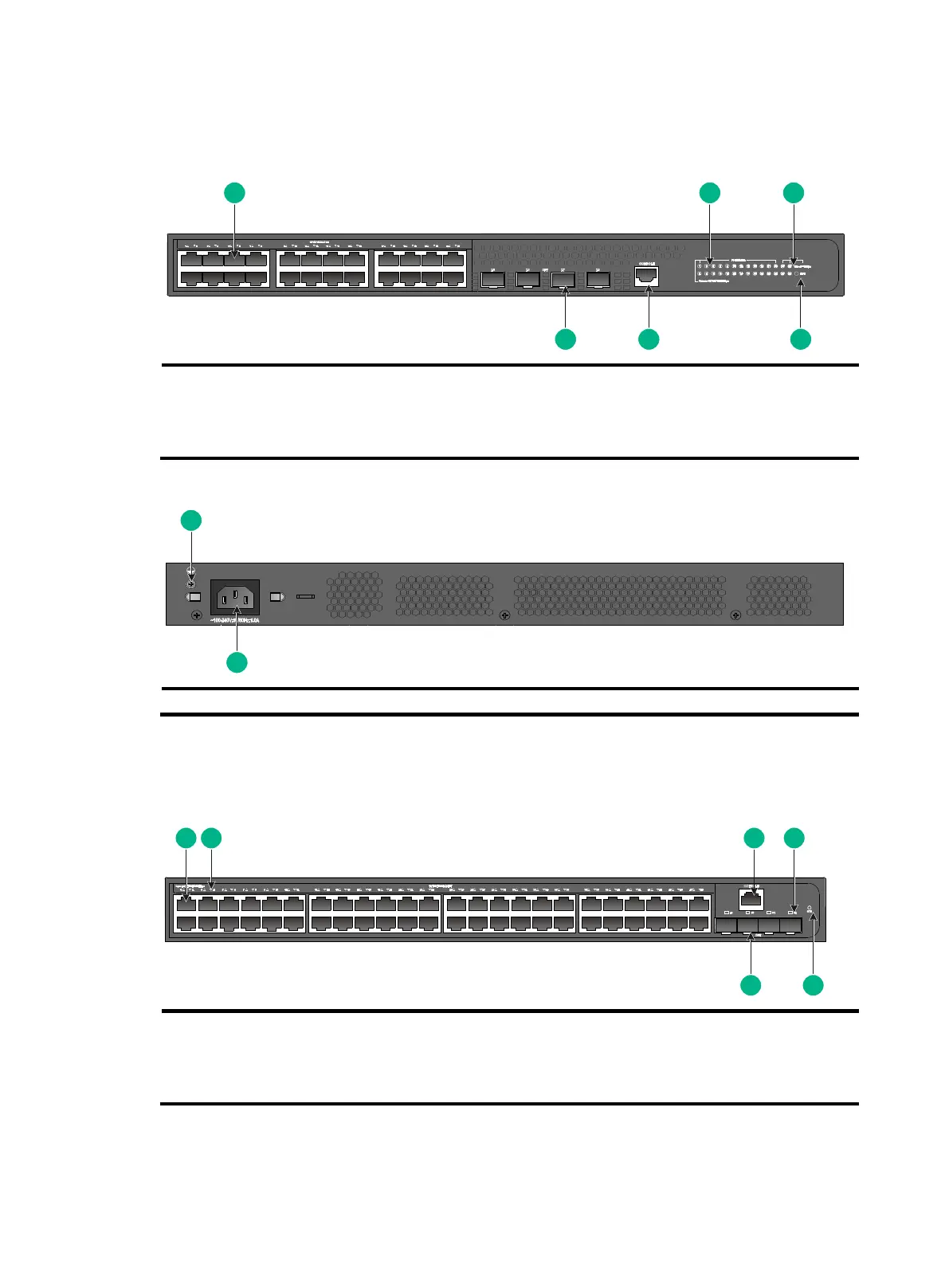

Figure 82 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Console port (CONSOLE)
(6) SFP port
Figure 83 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5110V2-52P-SI
Figure 84 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) SFP port LED
(5) System status LED (SYS)
(6) SFP port
1
5
2
3
6
4
2
1
1
2
3
6
5
4
