H3C S5000V3-EI User Manual

47
S5130S-28S-PWR-LI

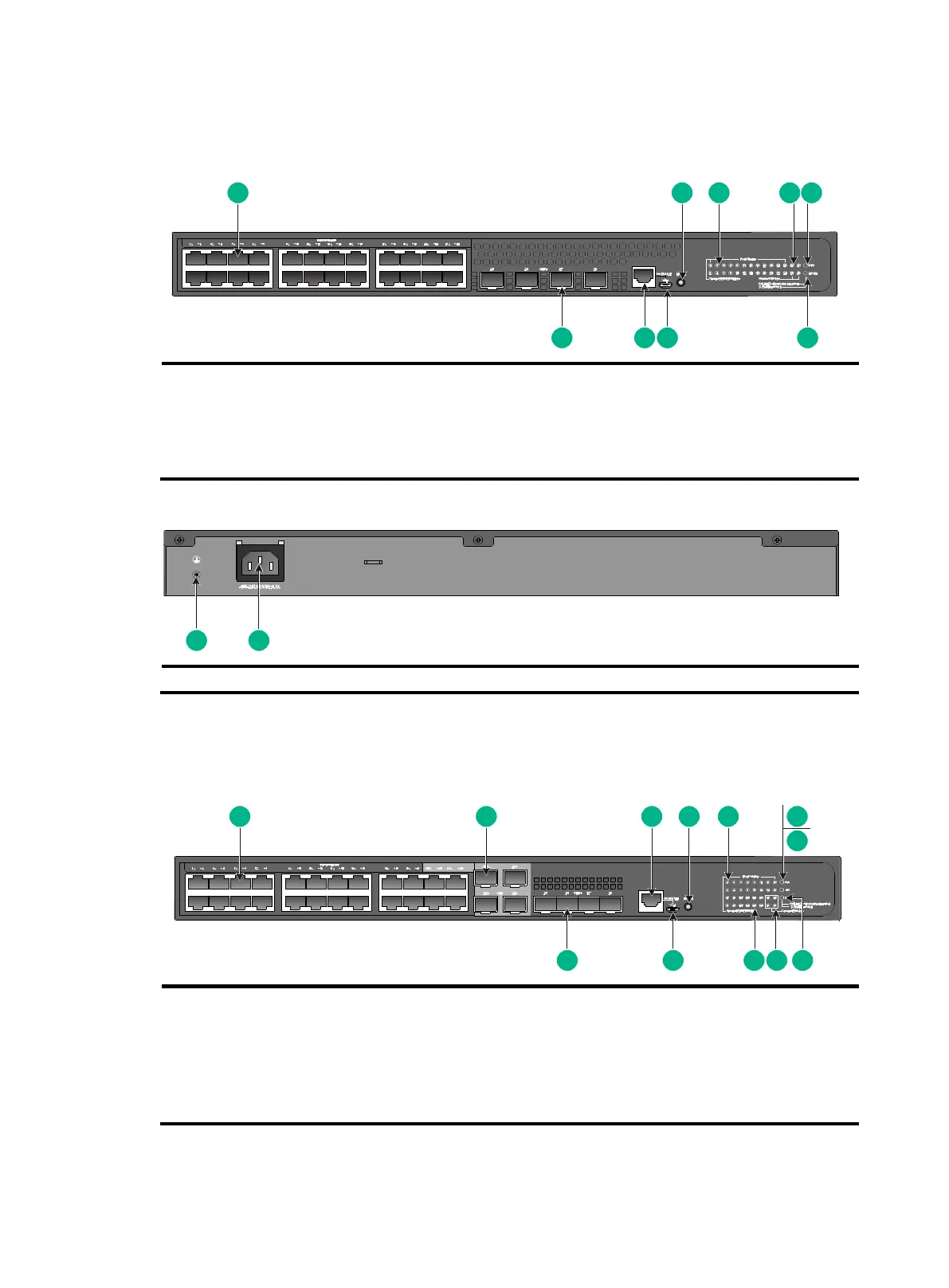

Figure 58 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Mode button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP+ port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Micro USB console port
(8) Console port (CONSOLE)
(9) SFP+ port
Figure 59 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28S-HPWR-LI
Figure 60 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP port
(3) Console port (CONSOLE)
(4) Mode button
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) RPS status LED (RPS)
(8) Mode LED (MODE)
(9) SFP+ port LED
(10) SFP port LED
(11) Micro USB console port
(12) SFP+ port
1
7
9
3 4
8
6
2
5
1 2
1
12
4
6
3
9
5
7
8
2
10
11
