S5024PV3-EI-HPWR

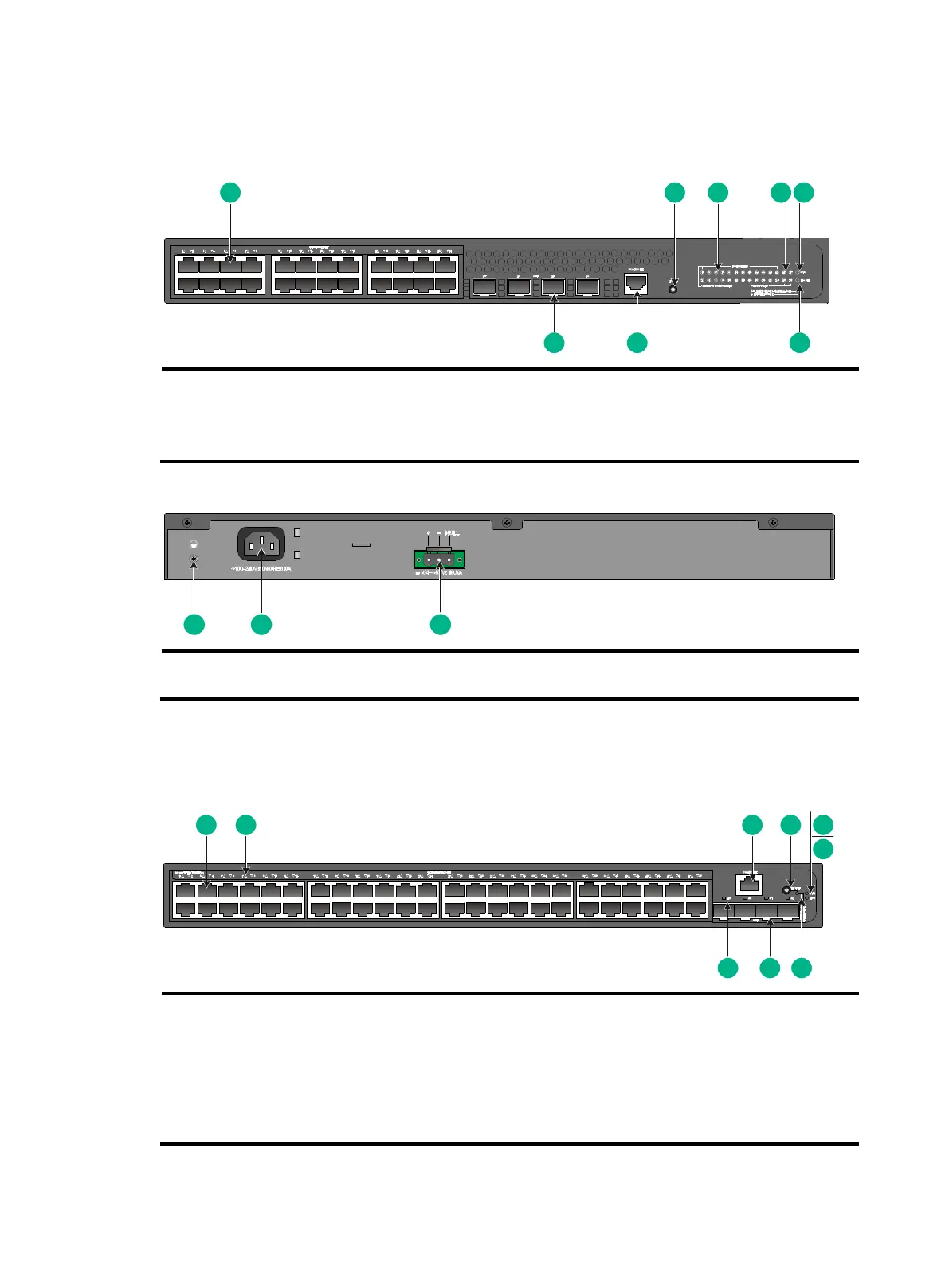

Figure 94 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Mode button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Console port (CONSOLE)
(8) SFP port
Figure 95 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5048PV3-EI-PWR
Figure 96 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) Mode button
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port
(9) SFP port LED
1
7
3
8
6
2 4 5
1 2 3
1
3 4
6
2
5
7
8
9
