H3C S5000V3-EI User Manual

51
S5120V2-52P-SI & S5120V2-52P-LI

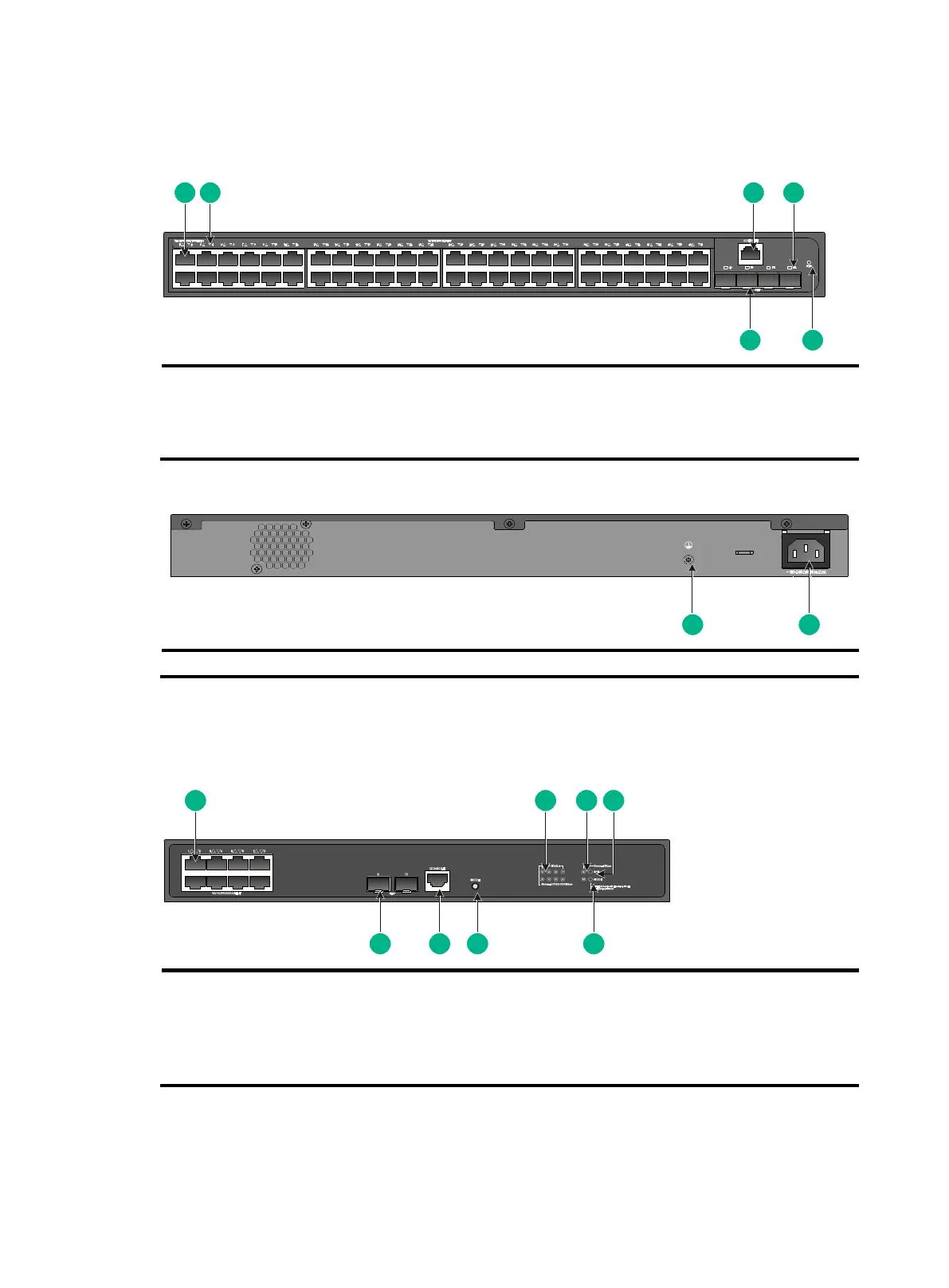

Figure 70 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) SFP port LED
(5) System status LED (SYS)
(6) SFP port
Figure 71 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5120V2-10P-PWR-LI
Figure 72 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Mode LED (MODE)
(6) Mode button
(7) Console port (CONSOLE)
(8) SFP port
1
2 3
6 5
4
1
2
1 3
2
568
4
7
