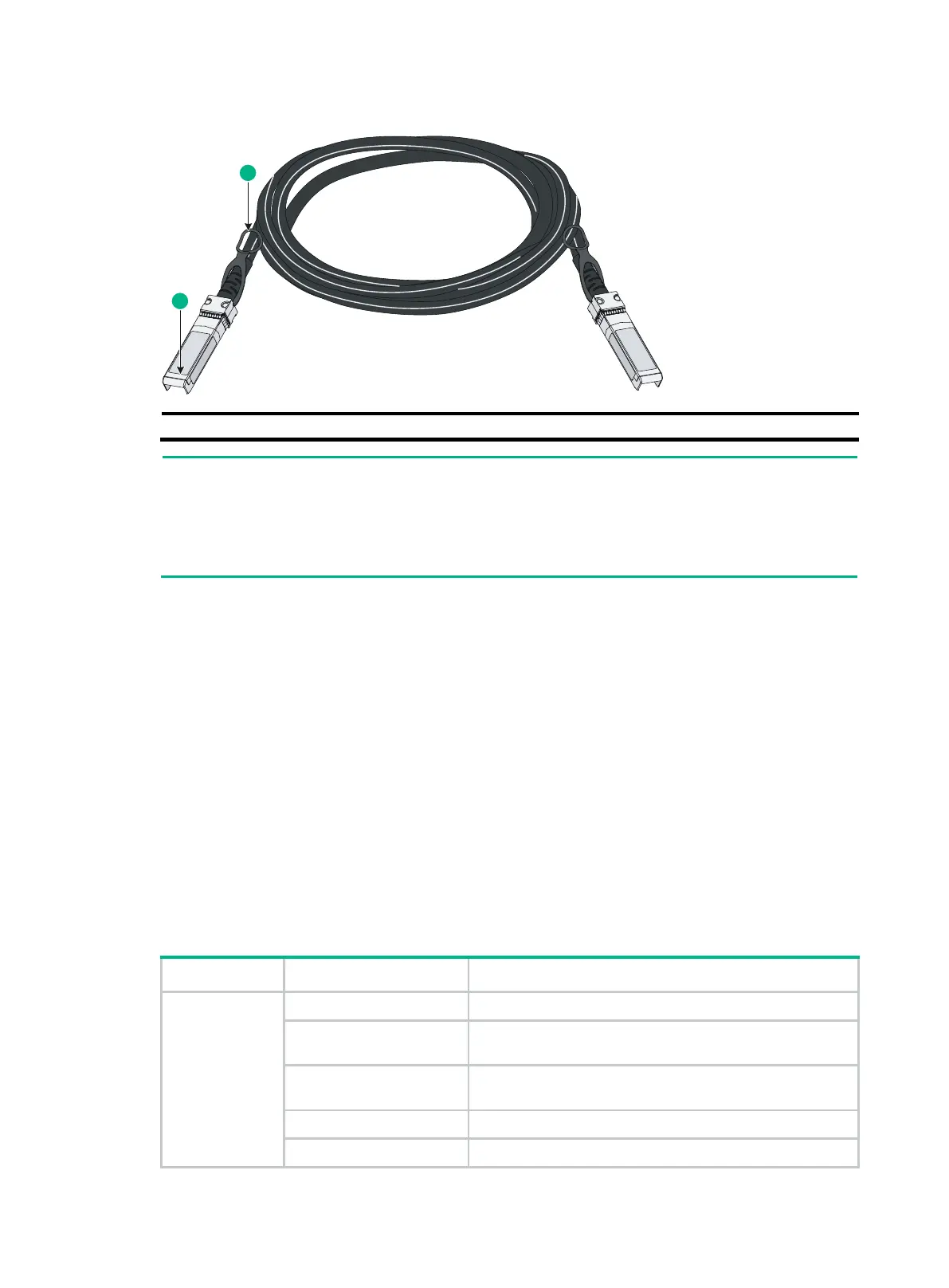

Figure 118 10-GE SFP+ cable
As a best practice, use H3C transceiver modules and cables for the switch.
H3C transceiver modules and cables are subject to change over time. For the most up-to-date list of H3C
transceiver modules and cables, contact your H3C sales representative or technical support engineer.
• For the specifications of H3C transceiver modules and cables, see H3C Transceiver Modules User Guide.
Combo interface
The S5130S-28S-HPWR-LI, S5120V2-28P-HPWR-LI, and S3100V3-28TP-PWR-SI switches each
provide four combo interfaces on the front panel. The S5120V2-12TP-HPWR-LI and S5024FV3-EI
switches each provide two combo interfaces on the front panel. The S5560S-28F-SI,
S5560S-28DP-SI, and S5130S-28F-SI switches each provide eight combo interfaces on the front
panel. Each combo interface contains an SFP port and a 10/100/1000BASE-T autosensing Ethernet
port. Only one of the two ports is active at a time.
LEDs
System status LED
The system status LED shows the operating status of the switch.
Table 32 System status LED description
LED mark Status Description
SYS
Steady yellow Boot ROM booting stage.
Steady green
Linux kernel booting stage, or the switch has started up
correctly.
Flashing green (1 Hz)
Software image loading and decompressing stage, or
software booting stage.
Steady red The switch has failed POST or the switch is faulty.
Off The switch is powered off or has not started up correctly.
