S5120V2-28P-HPWR-LI

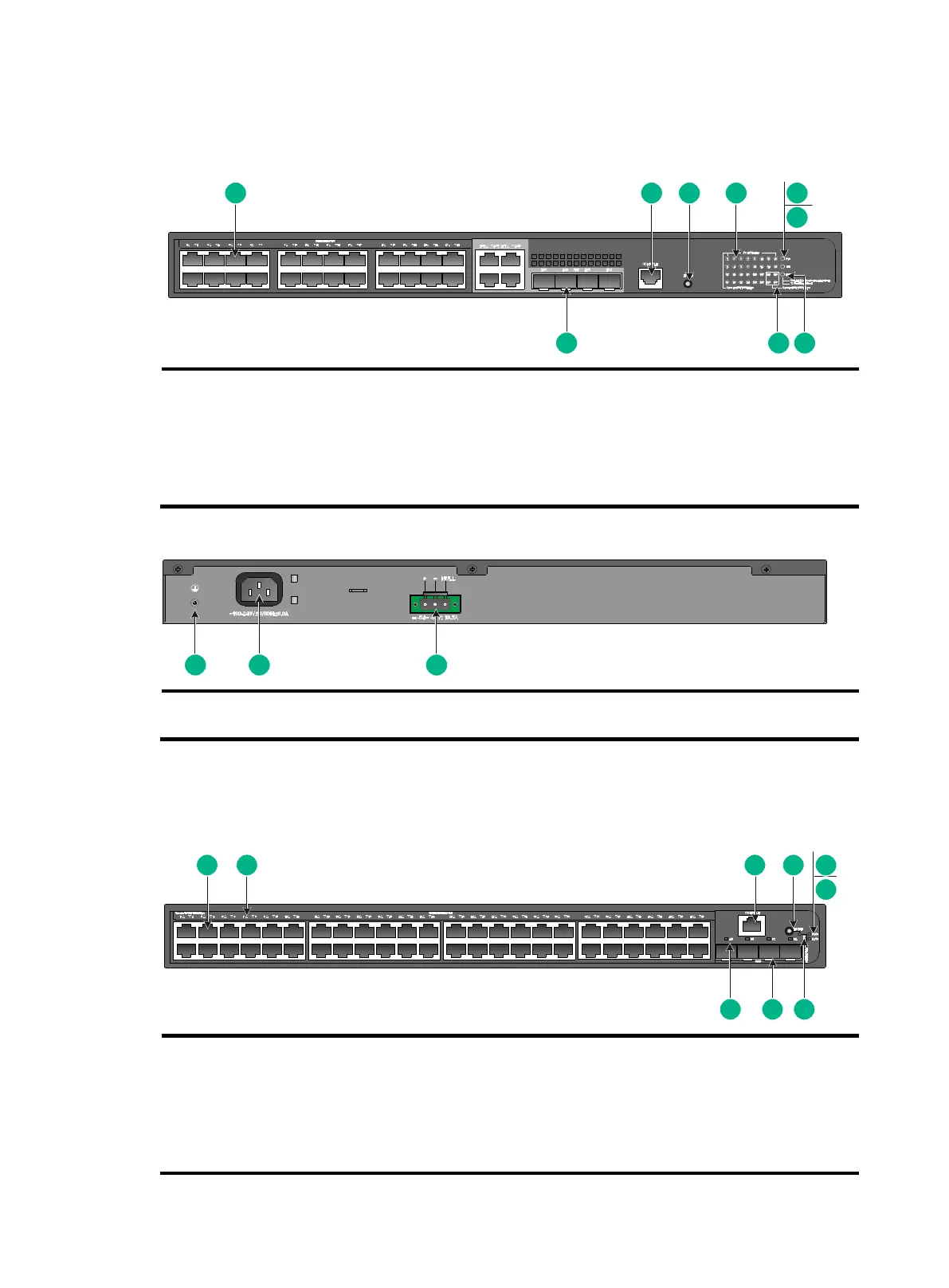

Figure 76 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Console port (CONSOLE)
(3) Mode button
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port LED
(9) SFP port
Figure 77 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5120V2-52P-PWR-LI
Figure 78 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) Mode button
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port
(9) SFP port LED
1
9
3
5
2
8
4
6
7
1
2
3
1
3 4
6
2 5
789
