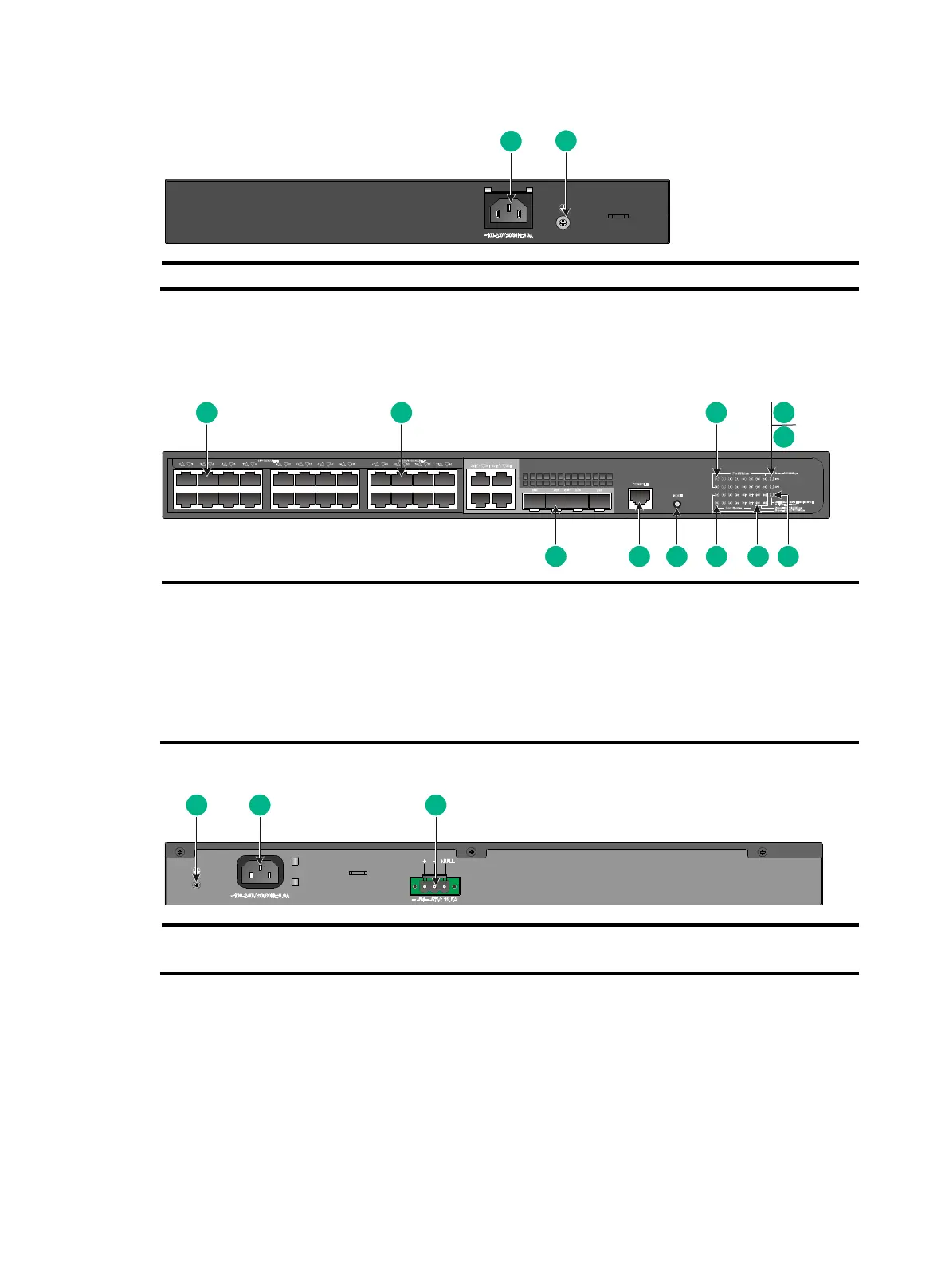

Figure 115 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S3100V3-28TP-PWR-SI
Figure 116 Front panel
(1) 10/100BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port
(3) 10/100BASE-T autosensing Ethernet port LED
(4) System status LED (SYS)
(5) RPS status LED (RPS)
(6) Mode LED (MODE)
(7) SFP port LED
(8) 10/100/1000BASE-T autosensing Ethernet port LED
(9) Mode button
(10) Console port (CONSOLE)
(11) SFP port
Figure 117 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
1
2
1
3
4
5
2
9
6
10
11
7
8
2
1
3
