See Table2-2 for the distance requirement between the two holes.

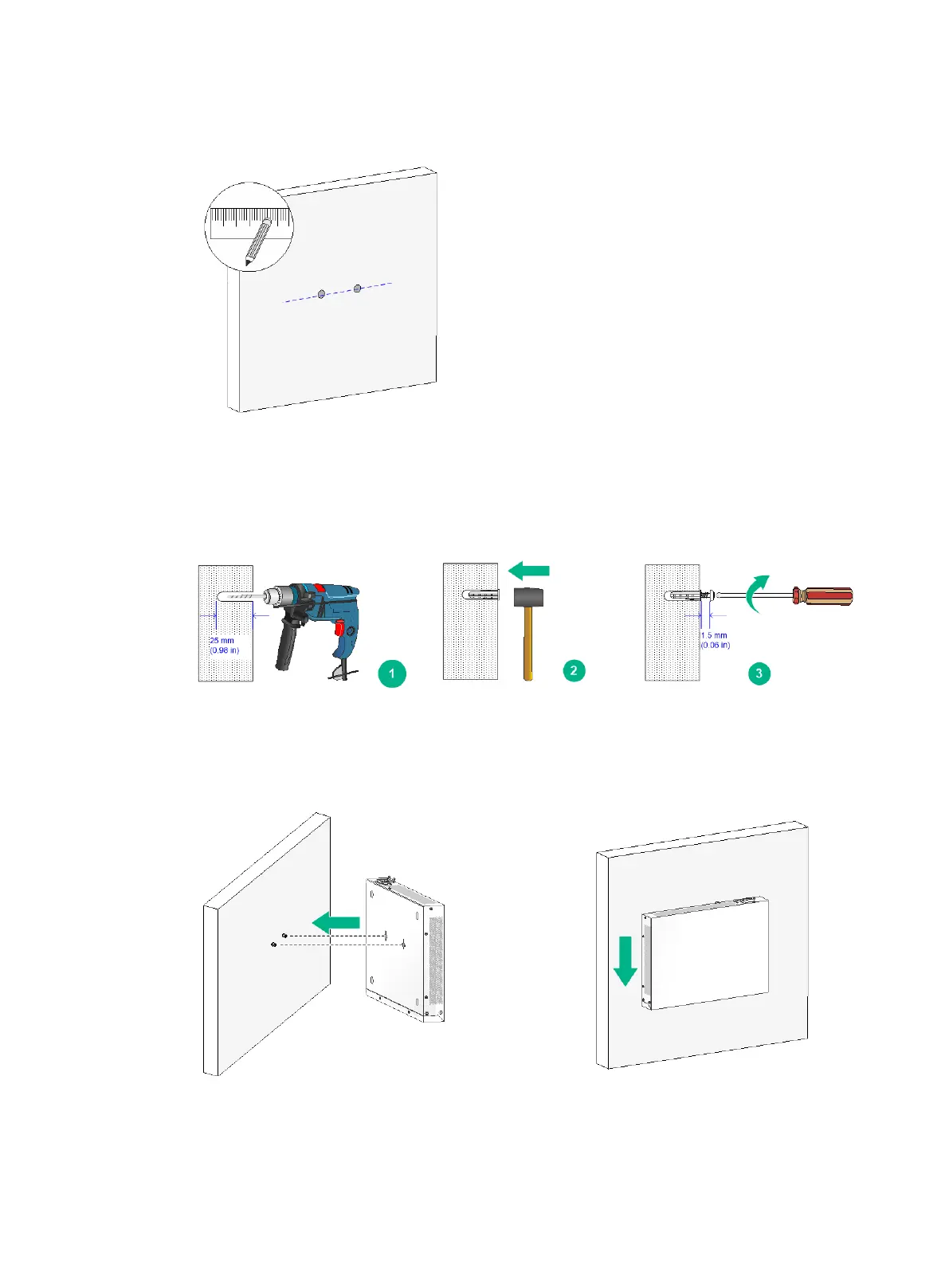

Figure2-11 Installing the switch on a wall (1)
2. Drill two holes with a diameter of 6 mm (0.24 in) (7 mm/0.28 in for an S5130S-16S-PWR-EI
switch) and a depth of 25 mm (0.98 in) at the marked locations. Hammer the screw anchors into
the wall and use a Phillips screwdriver to fasten the screw into the screw anchor. Leave 1.5 mm
(0.06 in) between the screw head and the wall for hanging the switch.
Figure2-12 Installing the switch on a wall (2)
3. Align the installation holes in the switch rear with the screws on the wall and hang the switch on
the screws. Make sure the port side faces down and the left and right sides are perpendicular to
the ground.
Figure2-13 Installing the switch on a wall (3)

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
