H3C S5130S-EI series Installation Guide

2-23

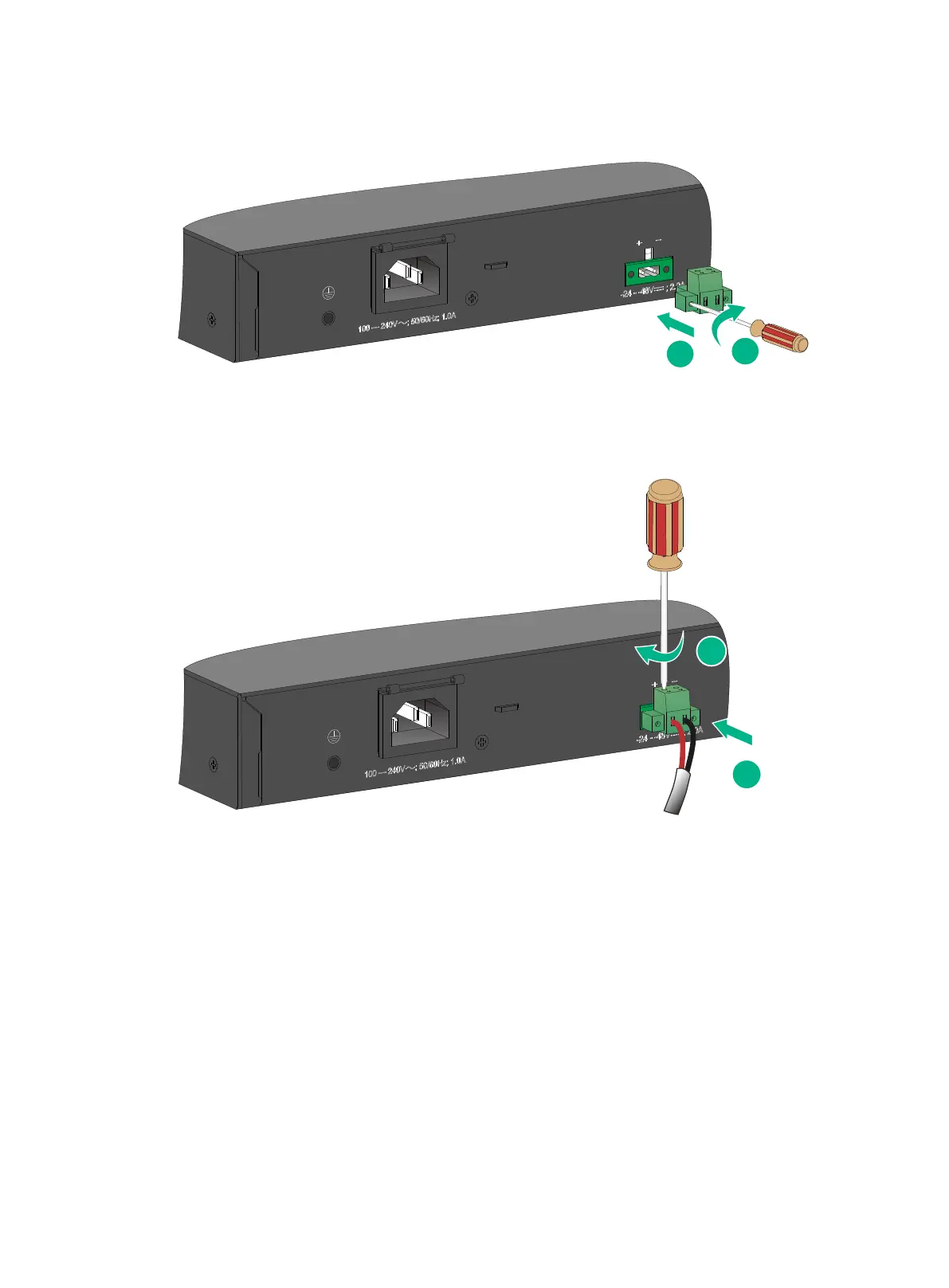

Figure2-26 Attaching the terminal block to the fixed DC power supply
Figure2-27 Securing the DC power cord to the terminal block
Connecting the power cord for a PSR75-12A/PSR150-A1
power supply
1. Pull the bail latch leftward, as shown in Figure2-28.
2. Connect the plug of the power cord to the power receptacle on the switch. See Figure2-29.
3. Pull the bail latch rightward to secure the plug to the power receptacle. See Figure2-29.
4. Connect the other end of the power cord to a power source.
5. For a PSR150-A1 power supply, connect the power cord to an AC power source. For a
PSR75-12A power supply, connect the power cord to an AC power source or a 240V
high-voltage DC power source.
1
2
1
2

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
