10
c. Use M4 screws to attach the mounting bracket to the chassis.
d. Repeat the proceeding two steps to attach the other mounting bracket to the chassis.

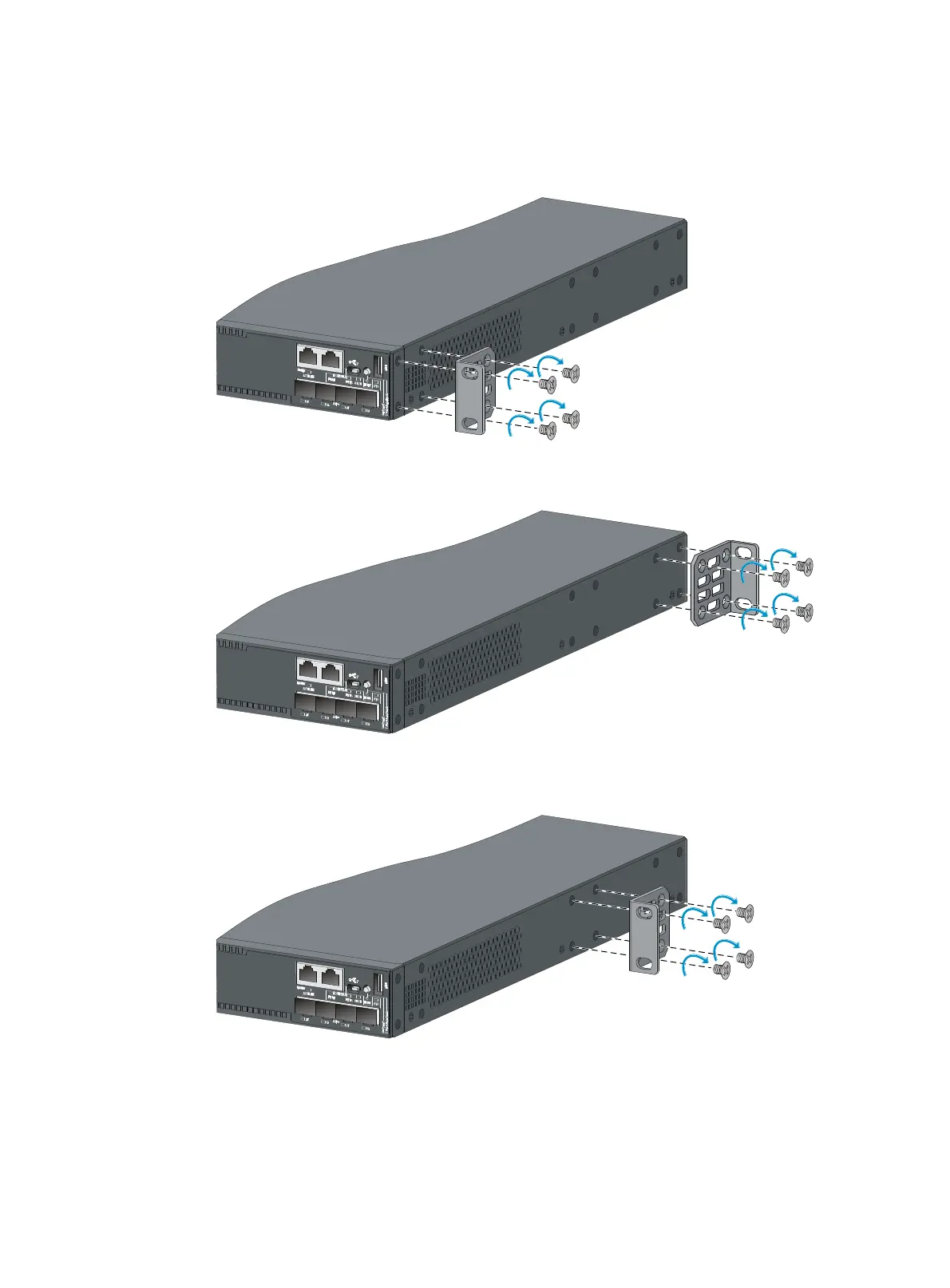

Figure 8 Attaching the front mounting bracket to the port side
Figure 9 Attaching the front mounting bracket to the power module side
Figure 10 Attaching the front mounting bracket to the middle installation position
4. Mount the chassis in the rack:
a. One person supports the chassis bottom with one hand, holds the front part of the chassis with
the other hand, and pushes the chassis into the rack gently
b. The other person uses M6 screws and cage nuts (user supplied) to attach the switch to the rack.
