S5560-54S-EI

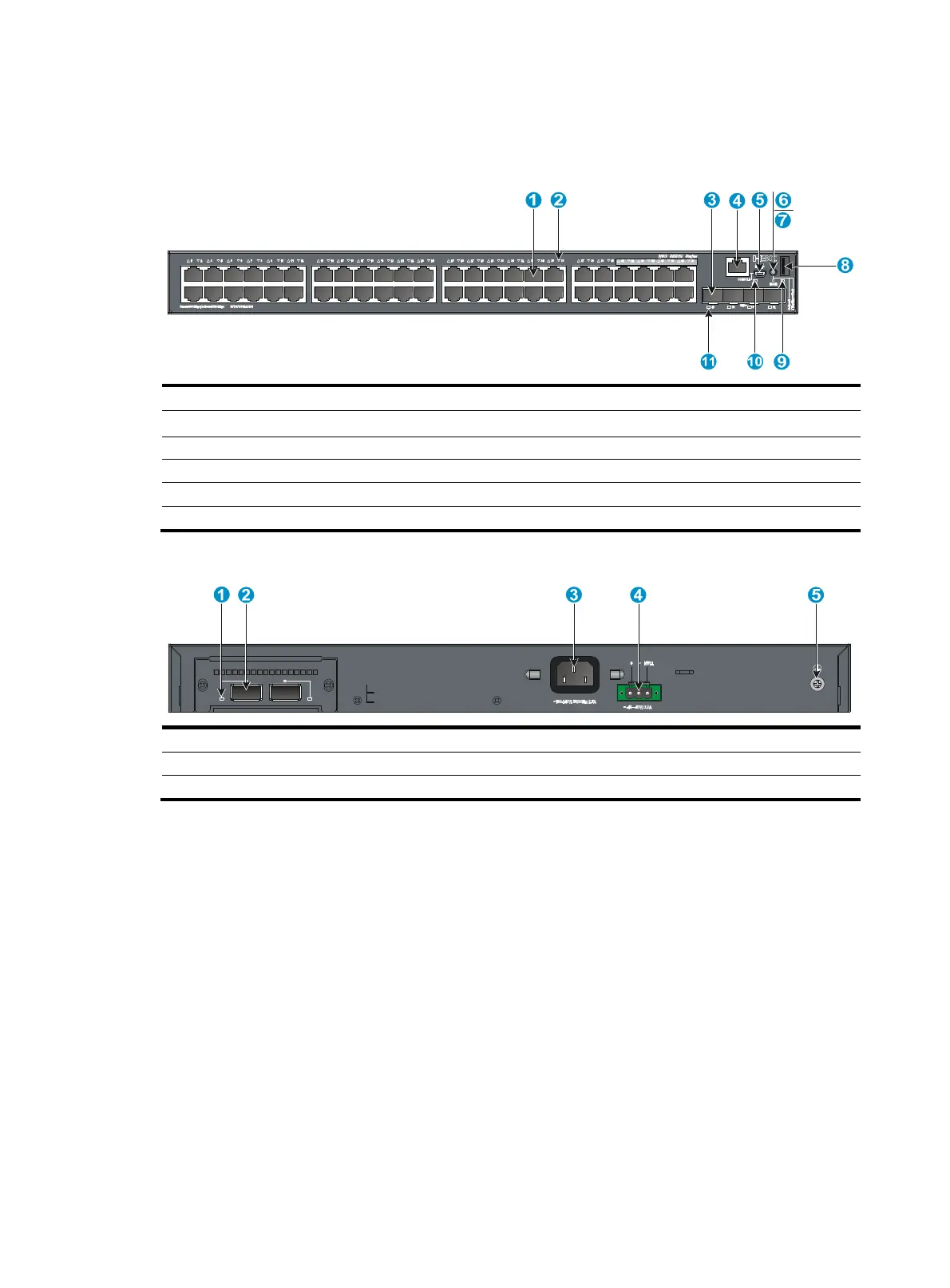

Figure 64 S5560-54S-EI front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port
(4) Console port (CONSOLE)
(5) Mini USB console port (6) Port LED mode switchin
button
(7) LED for the port LED mode (MODE)
(8) USB port
(9) System status LED (SYS) (10) RPS status LED (RPS)
(11) SFP+ port LED
Figure 65 S5560-54S-EI rear panel
(1) QSFP+ port LED
(2) QSFP+
port
(3)
C-input power receptacle (4) RPS receptacle
(5) Grounding screw
