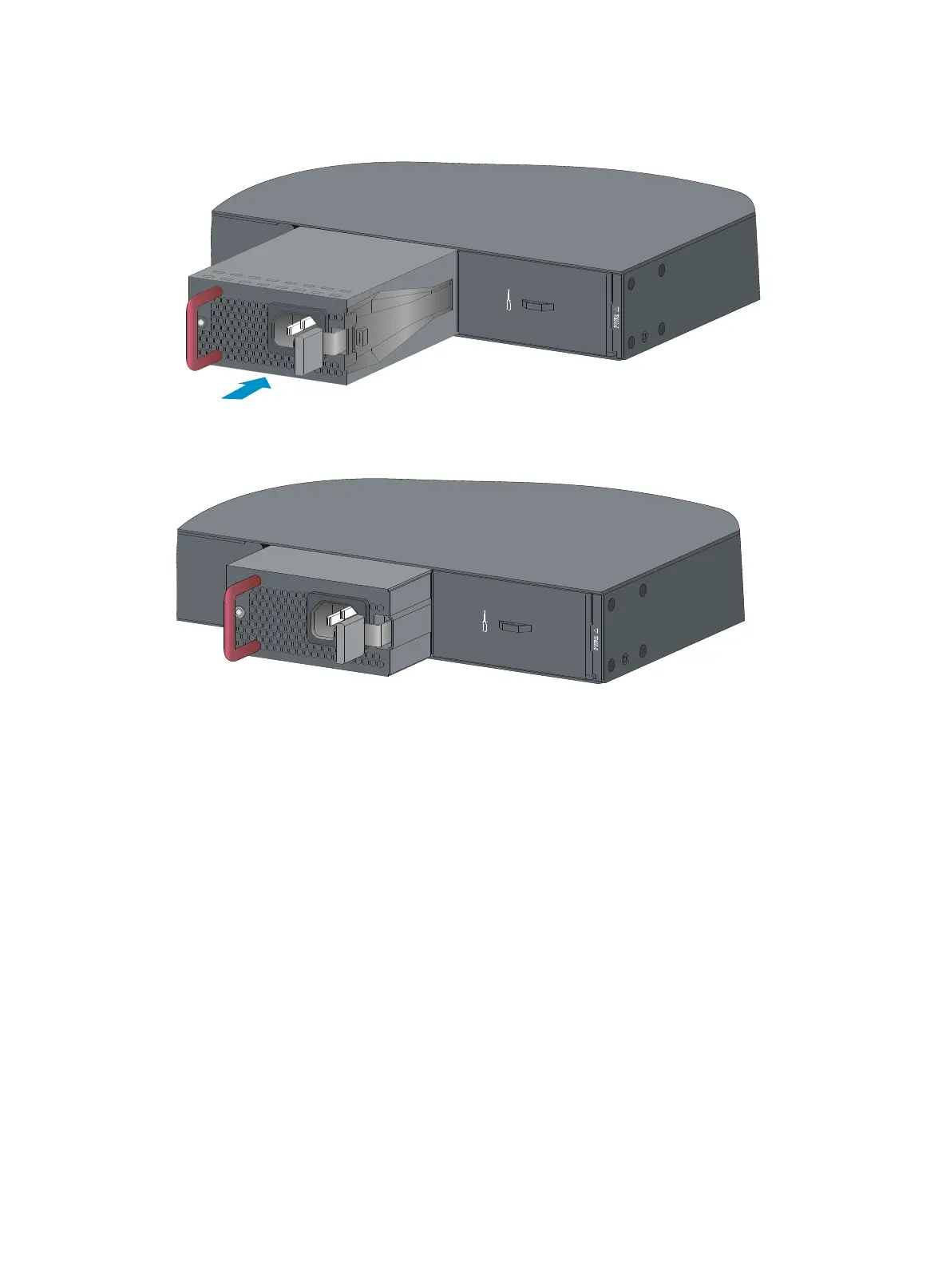

Figure 37 Installing a power module
Figure 38 PSR1110-56A installed in the chassis
Removing a PSR360-56A/PSR720-56A/PSR1110-56A power
module
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Disconnect the power cord.
3. Press the latch towards the handle, and pull the power module along the guide rails until it is
part-way out.
4. Grasp the handle of the power module with one hand, support the bottom with the other hand, and
pull the power module slowly along the guide rails out of the slot.
Put away the removed power module in an antistatic bag or the power module package bag for
future use.
5. Install the filler panel to prevent dust and ensure good ventilation if no power module is installed
in the slot.
