Appendix A Chassis views and technical
specifications
Chassis views
S5560-30S-EI

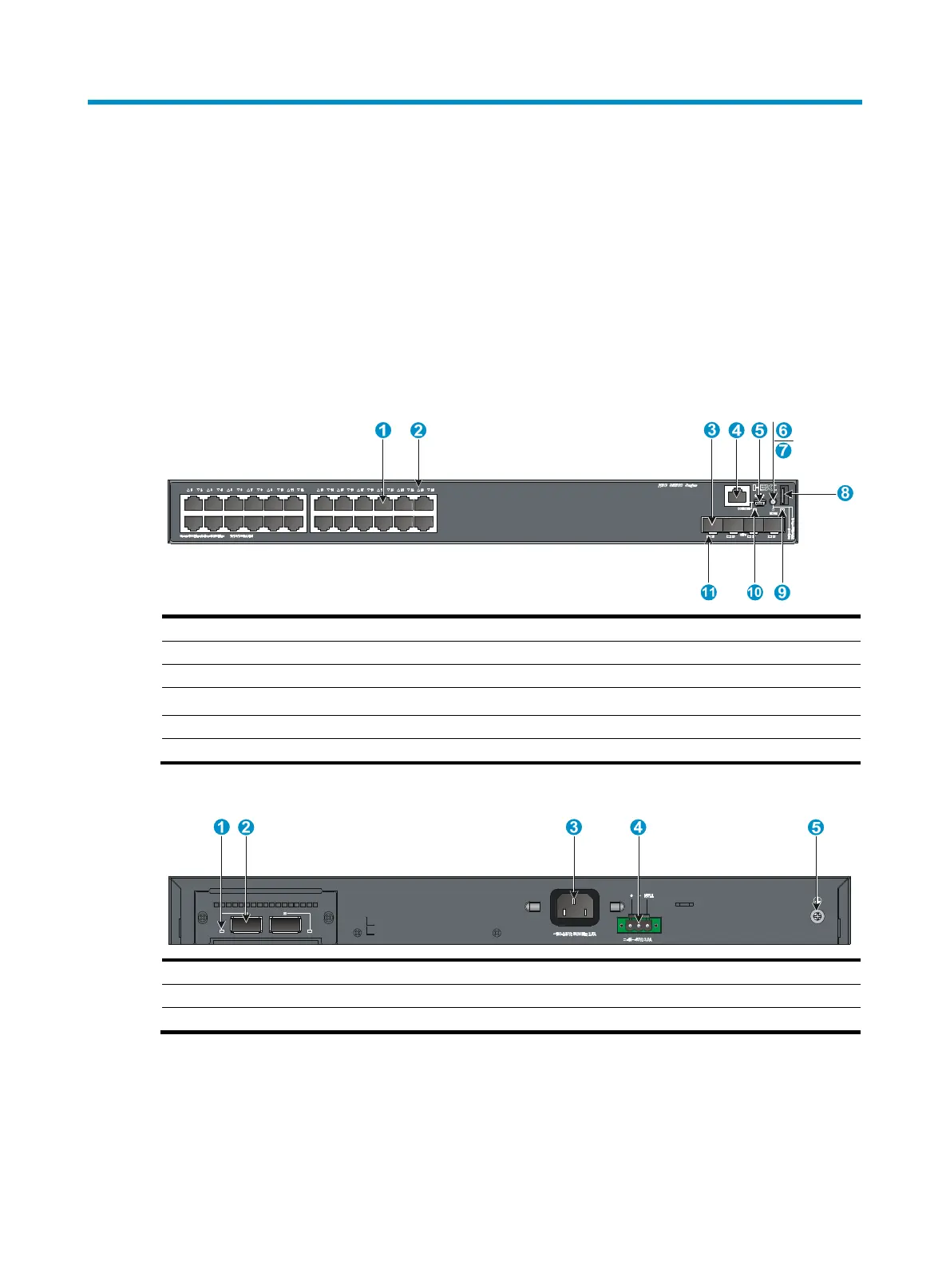

Figure 62 S5560-30S-EI front panel
(1) 10/100/1000BASE-T autosensin
g
Ethernet port (2) 10/100/1000BASE-T autosensin
g
Ethernet port LED
(3) SFP+ port (4) Console port (CONSOLE)
(5) Mini USB console port (6) Port LED mode switchin
g
button
(7) LED for the port LED mode (MODE) (8) USB port
(9) System status LED (SYS) (10) RPS status LED (RPS)
(11) SFP+ port LED
Figure 63 S5560-30S-EI rear panel
(1) QSFP+ port LED (2) QSFP+ port
(3)
A
C-input power receptacle (4) RPS receptacle
(5) Grounding screw
