12

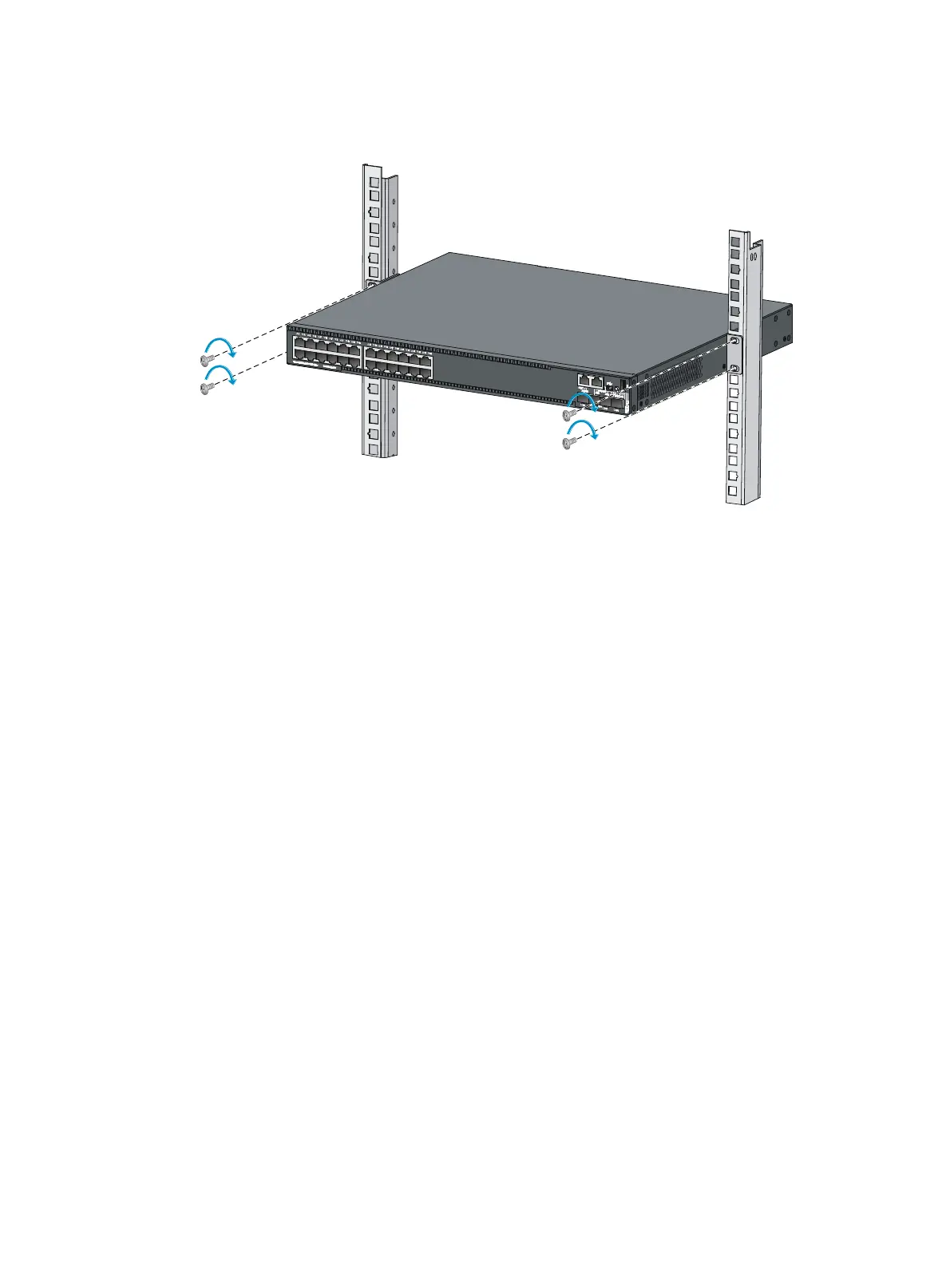

Figure 13 Mounting the switch in the rack (front mounting brackets at the middle installation
position)
Rack-mounting by using front and rear mounting brackets
(S5560-30C-PWR-EI, S5560-54C-PWR-EI, and
S5560-54QS-EI)
This mounting method is applicable to only the S5560-30C-PWR-EI, S5560-54C-PWR-EI, and
S5560-54QS-EI switches. You can install the front mounting brackets at the port-side or power-side
mounting position as needed. The following takes port-side mounting as an example. The power-side
mounting is similar.
This task requires two people.
To install the switch in a 19-inch rack by using the front and rear mounting brackets:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Attach the front mounting brackets and load-bearing screws to the chassis:
a. Unpack the front mounting brackets and the M4 screws for attaching the brackets to the switch
chassis.
b. Align the round holes in the wide flange of one front mounting bracket with the screw holes in
the port-side mounting position on one side of the chassis (see Figure 14 and Figure 15).
c. Use M4 screws (supplied with the switch) to attach the mounting bracket to the chassis.
d. Repeat the proceeding two steps to attach the other mounting bracket to the chassis.
e. Unpack the load-bearing screws.
f. Install the load-bearing screws. Attach the load-bearing screw to one of the two installation
positions as red-marked in Figure 14 and Figure 15.
