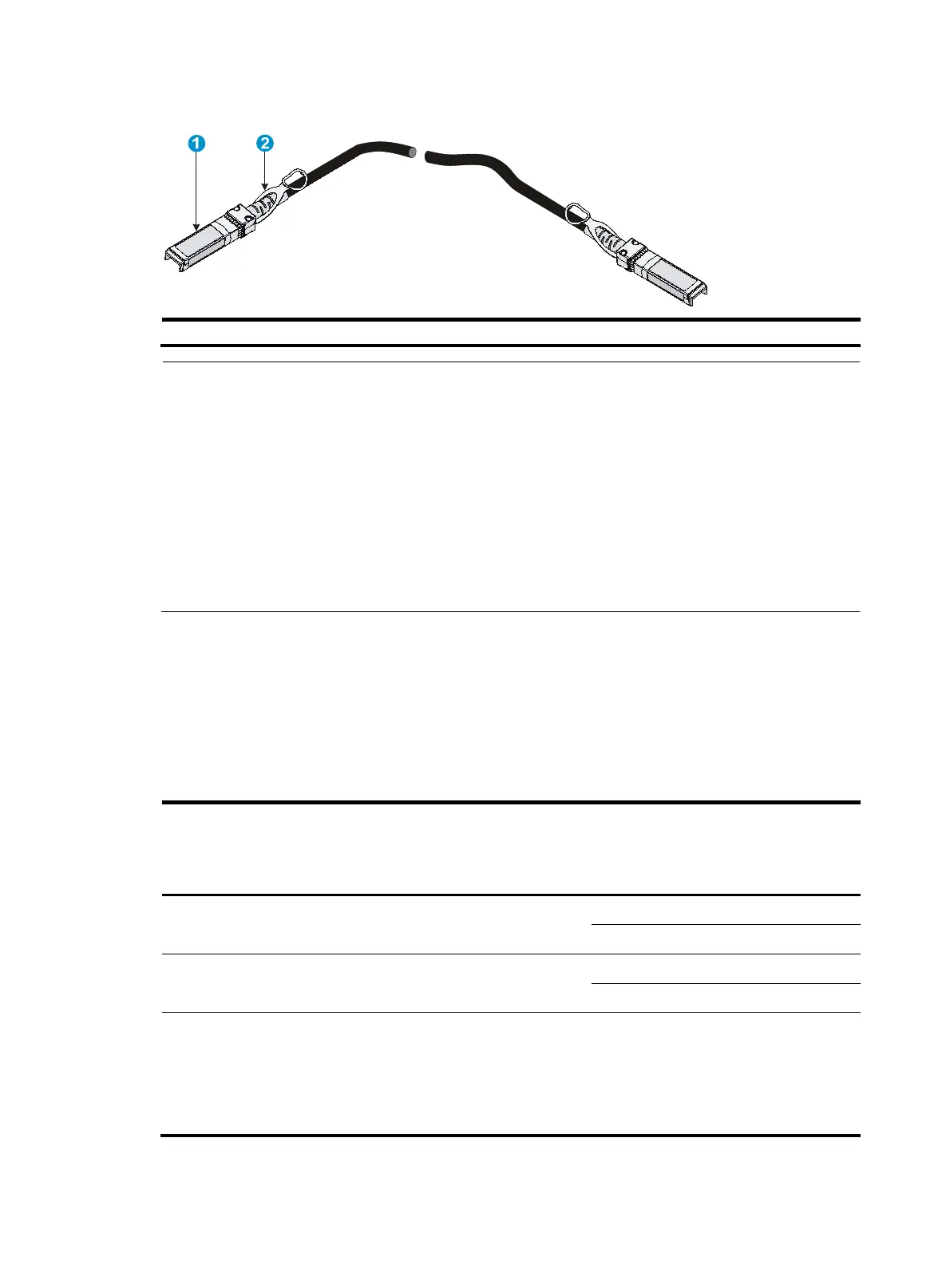

Figure 80 SFP+ cable
(1) Connector (2) Pull latch
NOTE:
• The fixed SFP+ ports on the switch do not support the SFP-XG-LH40-SM1550, SFP-XG-LH80-SM1550,
SFP-XG-LH80-SM1550-D, and SFP-XG-LX220-MM1310 transceiver modules.
• The LSWM2SP8P interface card does not support the SFP-XG-LX220-MM1310 transceiver module.
• As a best practice, use only H3C SFP/SFP+ transceiver modules and cables for the SFP+ ports.
• The H3C SFP/SFP+ transceiver modules and cables available for the SFP+ ports are subject to chan
g
e
over time. For the most recent list of SFP/SFP+ transceiver modules and cables, contact your H3C
Support or marketing staff.
• For the specifications of H3C SFP/SFP+ transceiver modules and cables, see H3C Transceiver Module
s
User Guide .
QSFP+ port
The S5560-30S-EI, S5560-54S-EI, and S5560-54QS-EI switches and the LSWM2QP2P interface card
provide QSFP+ ports. You can install the QSFP+ transceiver modules in Table 26, t
he QSFP+ cables
in Table 27, and the QSFP+ to SFP+ c
ables in Table 28 in the QSFP+ ports.
Table 26 QSFP+ transceiver modules available for the QSFP+ ports
QSFP+ transceiver
module
Central
wavelength
(nm)
Connector
Fiber type
and
diameter
(μm)
Modal
bandwidth
(MHz × km)
Max transmission
distance
QSFP-40G-SR4-MM
850
850 MPO
Multi-mode,
50/125
2000 100 m (328.08 ft)
4700 150 m (492.12 ft)
QSFP-40G-CSR4-M
M850
850 MPO
Multi-mode,
50/125
2000 300 m (984.25 ft)
4700 400 m (1312.33 ft)
QSFP-40G-LR4-WD
M1300
Four lanes:
• 1271.
• 1291.
• 1311.
• 13 31.
LC
Single-mode
, 9/125
N/A 10 km (6.21 miles)
