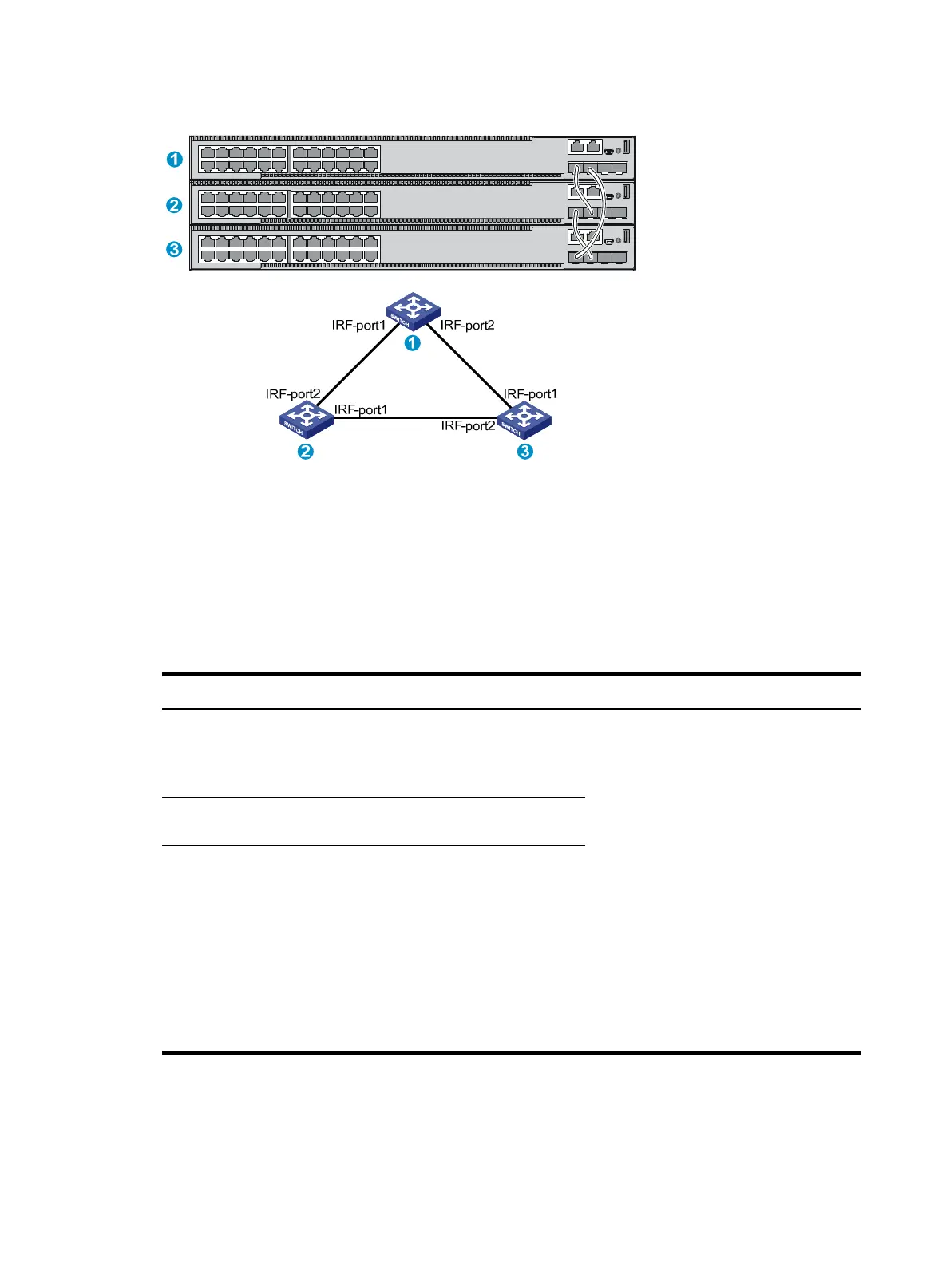

Figure 58 IRF fabric in ring topology
Identifying physical IRF ports on the member switches
Identify the physical IRF ports on the member switches according to your topology and connection
scheme.
Table 7 sho
ws the physical ports that can be used for IRF connection and the port use restrictions.
Table 7 Physical IRF port requirements
Chassis Candidate physical IRF ports Requirements
• S5560-30S-EI
• S5560-54S-EI
• Four fixed SFP+ ports on the front
panel
• Two fixed QSFP+ ports on the rear
panel
• All physical ports to be bound to an
IRF port must have the same data
rate.
• For the S5560-54QS-EI, SFP+ ports
49 to 52 form a group. When an
SFP+ port is bound to an IRF port,
other SFP+ ports in the same port
group cannot be used as service
ports, and vice versa. Each QSFP+
port is a group.
• For other models, physical ports on
different interface cards can be
bound to the same IRF port.
• If a QSFP+ port is split into four
virtual SFP+ ports, the QSFP+ port
cannot be used as a physical IRF
port.
S5560-54QS-EI
Four fixed SFP+ ports and two fixed
QSFP+ ports on the front panel
• S5560-30F-EI
• S5560-30C-EI
• S5560-34C-EI
• S5560-54C-EI
• S5560-30C-PWR
-EI
• S5560-54C-PW
R-EI
• Four fixed SFP+ ports on the front
panel
• 1/10 GE Ethernet ports on the
interface card on the rear panel
Planning the cabling scheme
Use twisted pair cables, SFP+/QSFP+ cables, or SFP+/QSFP+ transceiver modules and fibers to
connect the IRF member switches. If the IRF member switches are far away from one another, choose
