4. Connect the two wires at the other end of the power cord to a –48 VDC power source or an
external RPS power source.

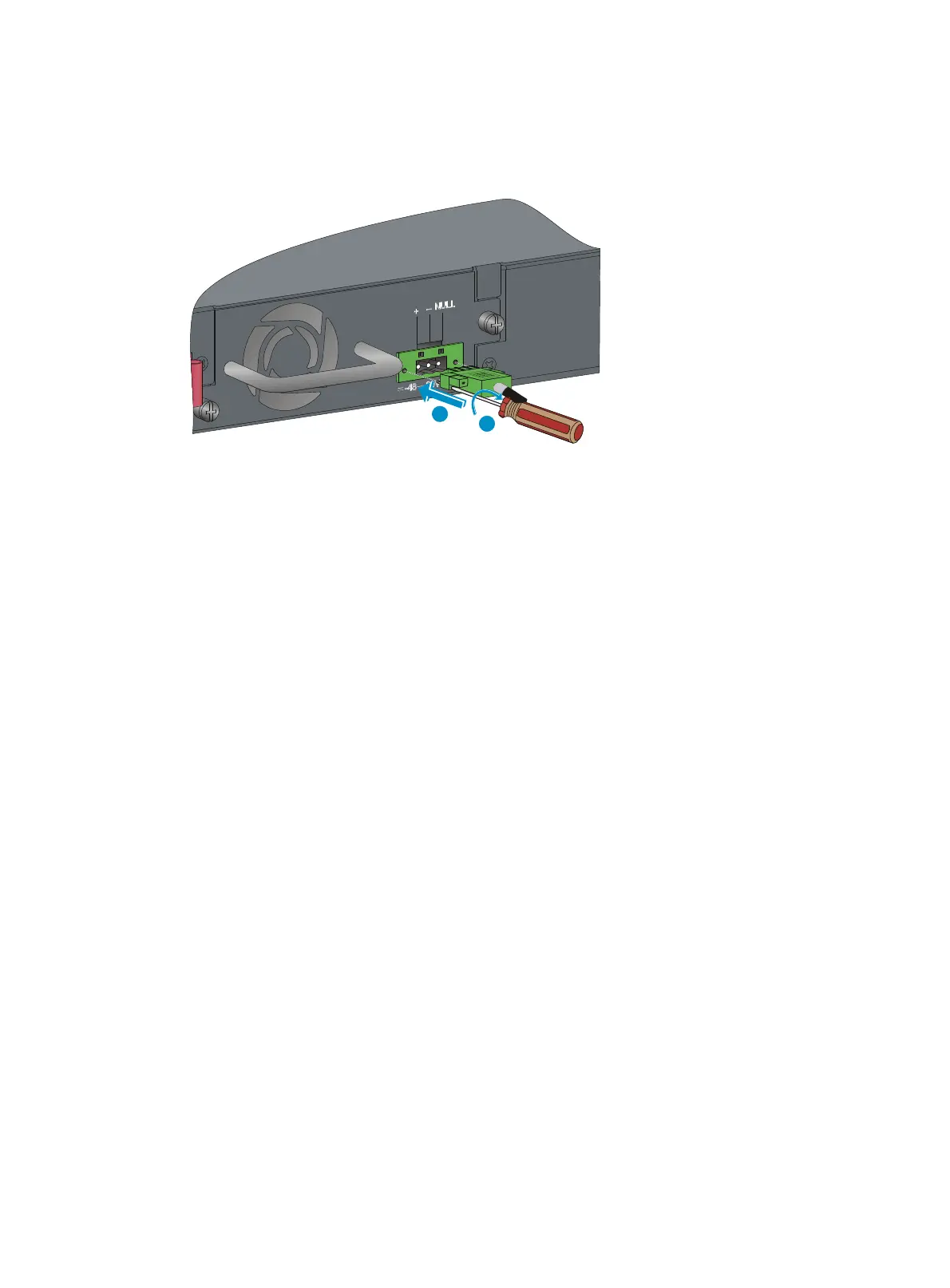

Figure 45 Connecting the PSR150-D1
Connecting the PSR360-56A/PSR720-56A/PSR1110-56A
The following takes the PSR720-56A as an example. The connection procedure for the PSR360-56A and
PSR1110 -56A is similar.
To connect the PSR720-56A:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Plug the female connector end of the AC power cord into the AC input socket of the power module
(see callout 1 in Figure 46).
3. Use a cable tie to secure th
e power cord to the handle of the power module (see callout 2 and
callout 3 in Figure 46).
4. Connect the other end of the AC power cord to an AC power outlet.
