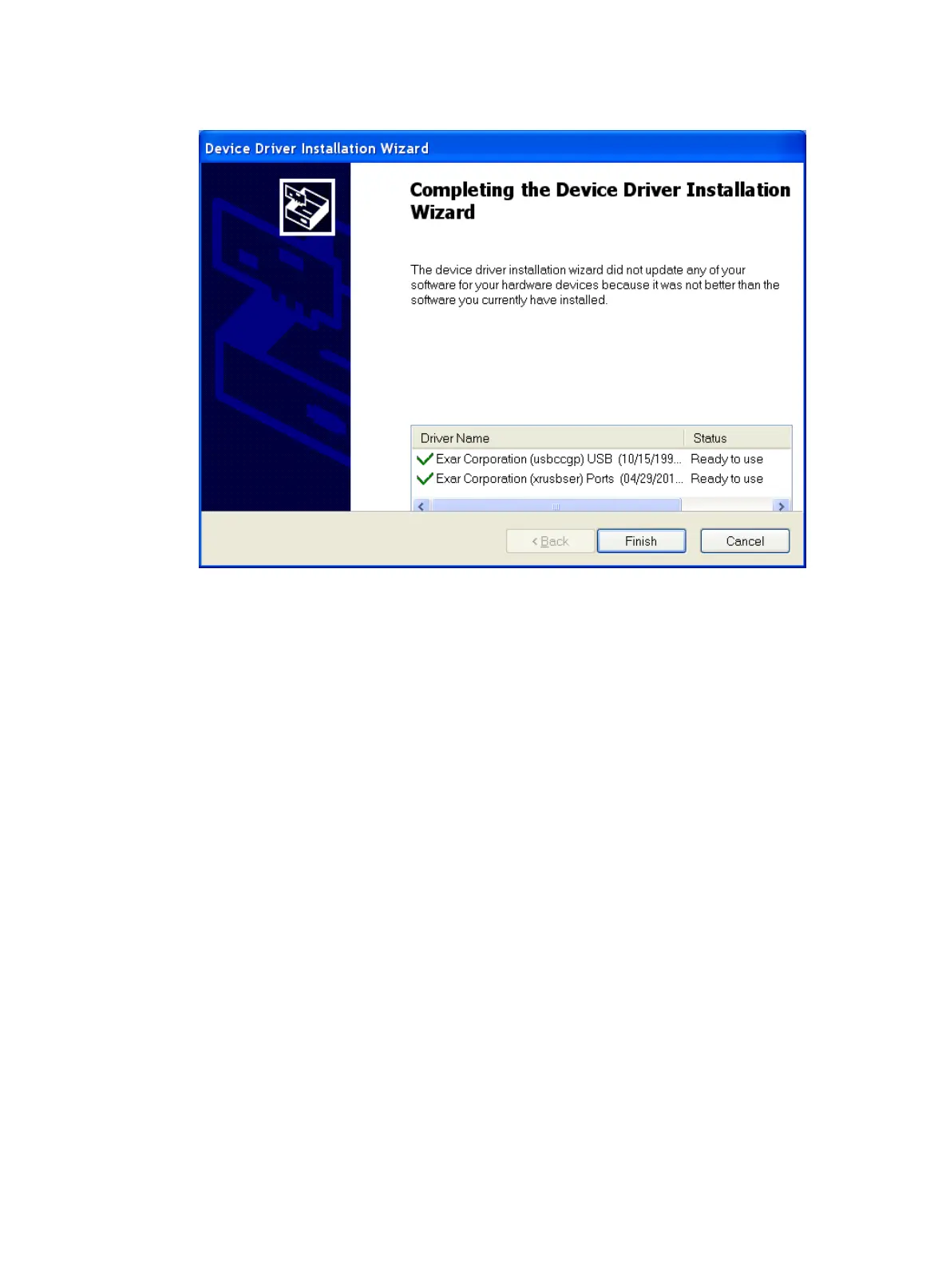

Figure 55 Completing the device driver installation wizard
Setting terminal parameters
To configure and manage the switch through the console port, you must run a terminal emulator program,
TeraTermPro or PuTTY, on your PC. You can use the emulator program to connect a network device, a
Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user
guides for these programs.
The following are the required terminal settings:
• Bits per second—9,600.
• Data bits—8.
• Parity—None.
• Stop bits—1.
• Flow control—None.
Powering on the switch
Before powering on the switch, verify that the following conditions are met:
• The power cord is correctly connected.
• The input power voltage meets the requirement of the switch.
• The console cable is correctly connected.
• The PC has started, and its serial port settings are consistent with the console port settings on the
switch.
