Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for corrosion
protection.

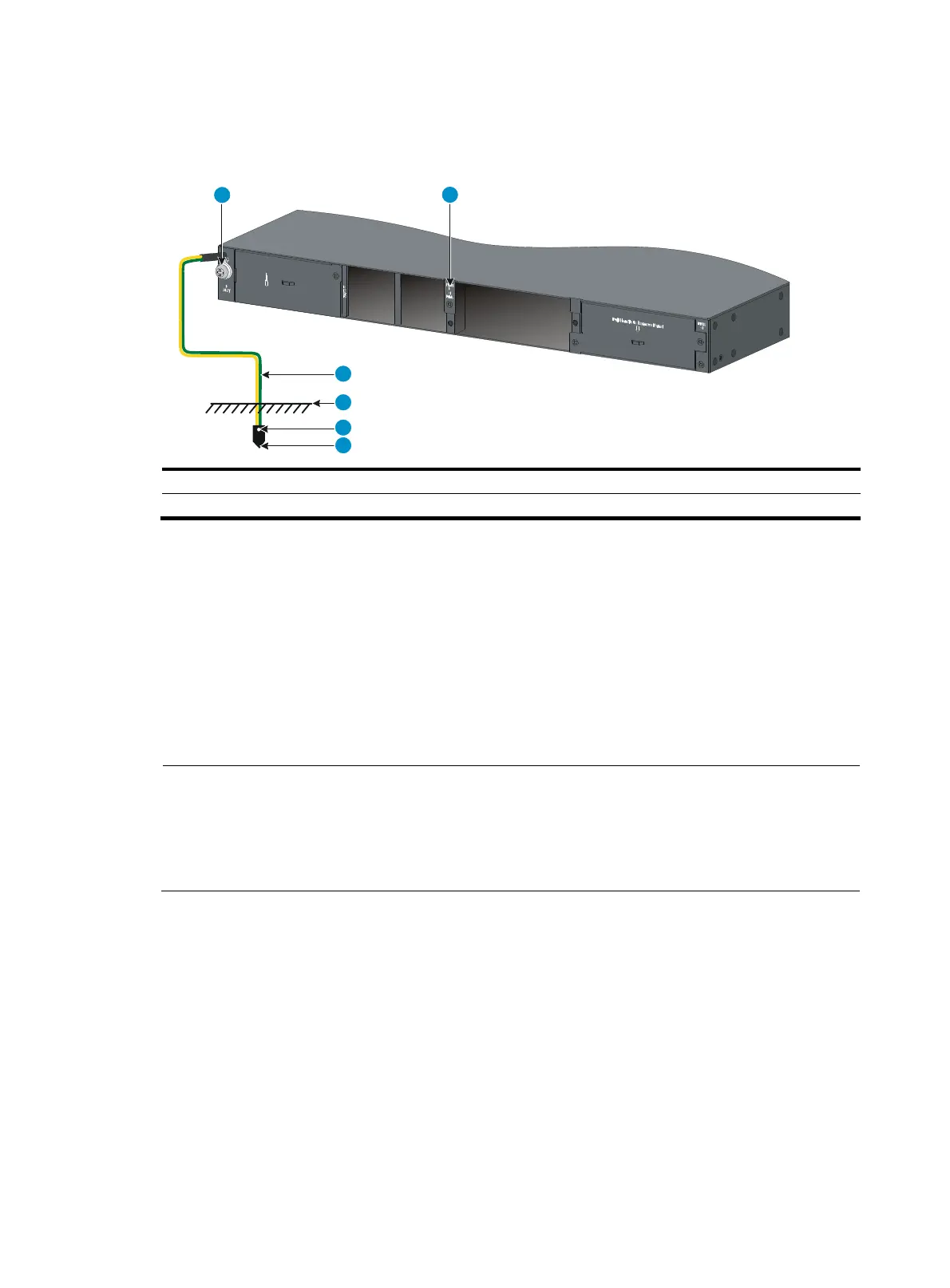

Figure 28 Grounding the switch by burying the grounding conductor into the earth ground
(1) Grounding screw (2) Chassis rear panel (3) Grounding cable
(4) Earth (5) Joint
(6) Groundin
conductor
Grounding the switch by using the AC power cord
If the installation site has no grounding strips or earth ground, you ground an AC-powered switch through
the PE wire of the power cord. Make sure of the following information:
• The power cord has a PE terminal.
• The ground contact in the power outlet is securely connected to the ground in the power distribution
room or on the AC transformer side.
• The power cord is securely connected to the power outlet.
NOTE:
• If the ground contact in the power outlet is not connected to the ground, report the problem and
reconstruct the grounding system.
• As a best practice to guarantee the grounding effect, ground the switch by connecting the grounding
cable provided with the switch to the grounding strip in the equipment room.
1
2
3
4
5
6
