9

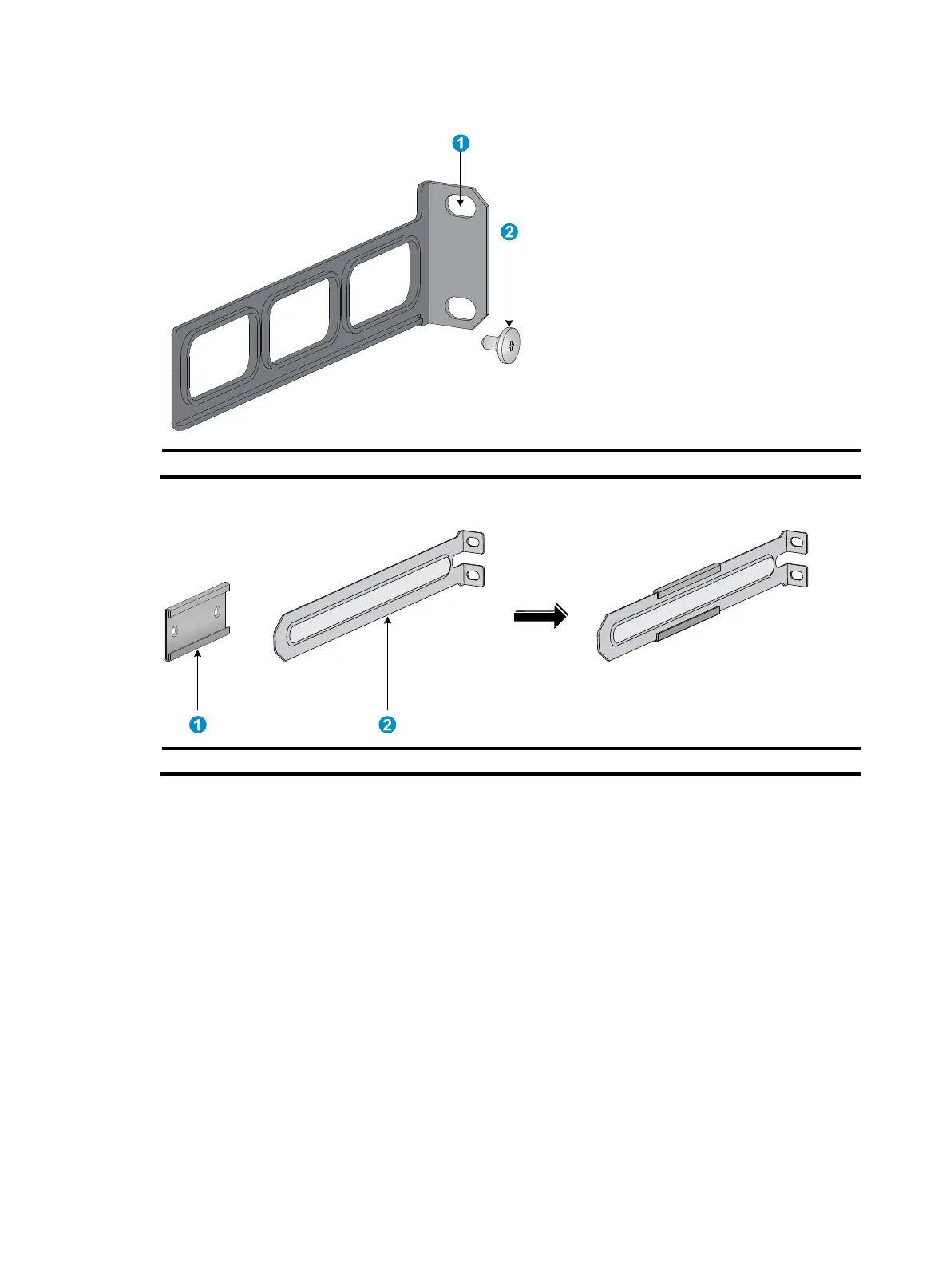

Figure 6 Rear mounting bracket and load-bearing screw
(1) Hole for attaching the bracket to a rack (2) Load-bearing screw
Figure 7 Rack mounting rail kit
(1) Chassis rail (2) Slide rail
Rack-mounting by using front mounting brackets
This task requires two people.
To install the switch in a 19-inch rack by using the front mounting brackets:
1. Identify the mounting positions.
2. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
3. Attach the front mounting brackets to the chassis:
a. Unpack the front mounting brackets and the M4 screws (supplied with the switch) for attaching
the brackets to the switch chassis.
b. Align the round holes in the wide flange of one front mounting bracket with the screw holes in
the chassis. The bracket mounting positions vary by switch model.
− Port side, power module side, or middle installation position for the S5560-30S-EI,
S5560-54S-EI, S5560-30F-EI, S5560-30C-EI, S5560-34C-EI, and S5560-54C-EI.
− Middle installation position for the S5560-30C-PWR-EI, S5560-54C-PWR-EI, and
S5560-54QS-EI.
