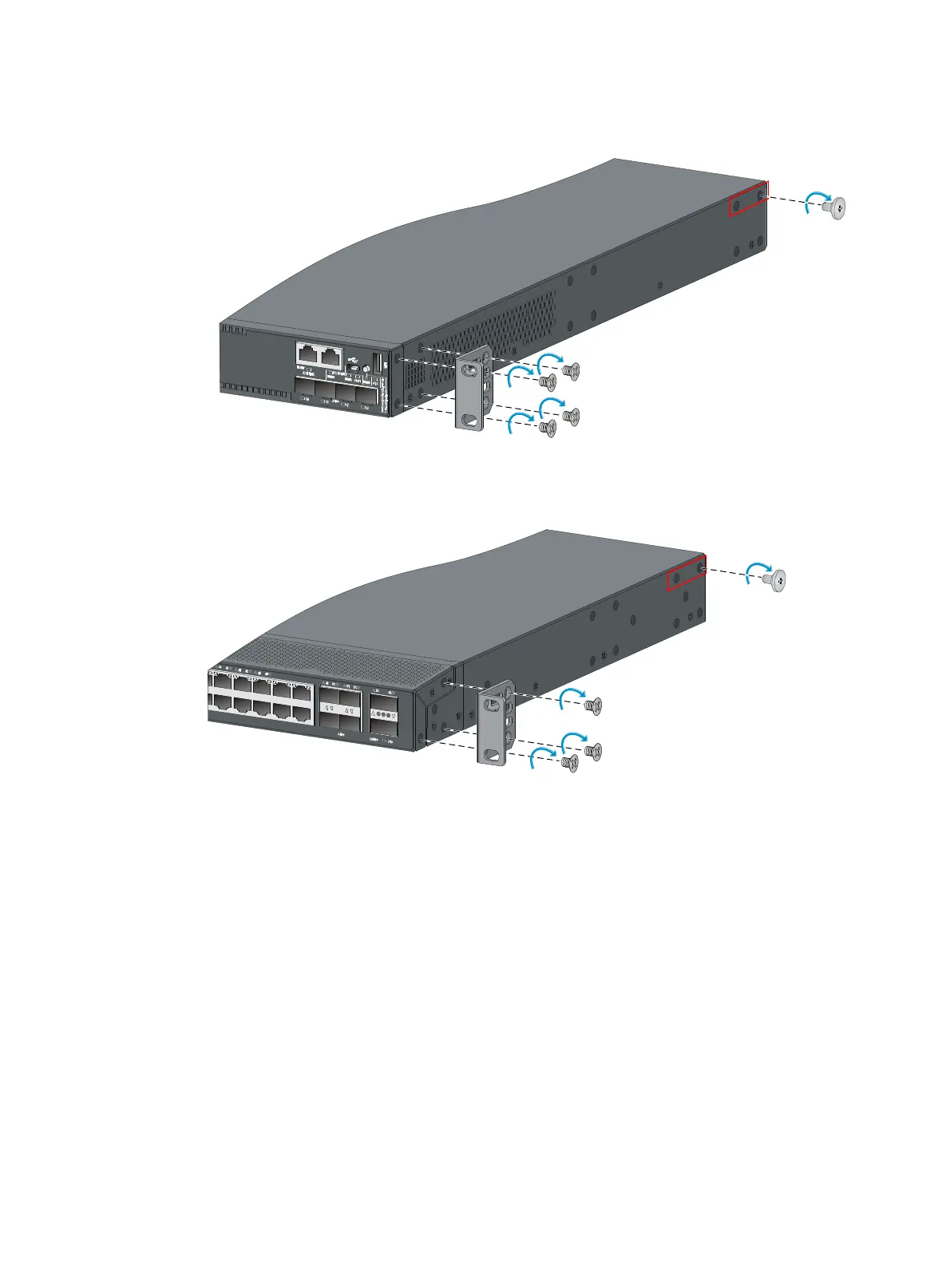

Figure 14 Attaching the front mounting brackets and load-bearing screws to the chassis
(S5560-30C-PWR-EI/S5560-54C-PWR-EI)
Figure 15 Attaching the front mounting brackets and load-bearing screws to the chassis
(S5560-54QS-EI)
3. Attach the rear mounting brackets to the rack:
Orient the rear mounting brackets with the wide flange inside or outside the rack as required.
a. Install cage nuts (user-supplied) in the mounting holes in the rear rack posts.
b. Attach the rear mounting brackets to the rear posts with M6 screws (user supplied), as shown
in Figure 16.
Do not fully tighten the M6 screws before mounting the switch in th
e rack.
