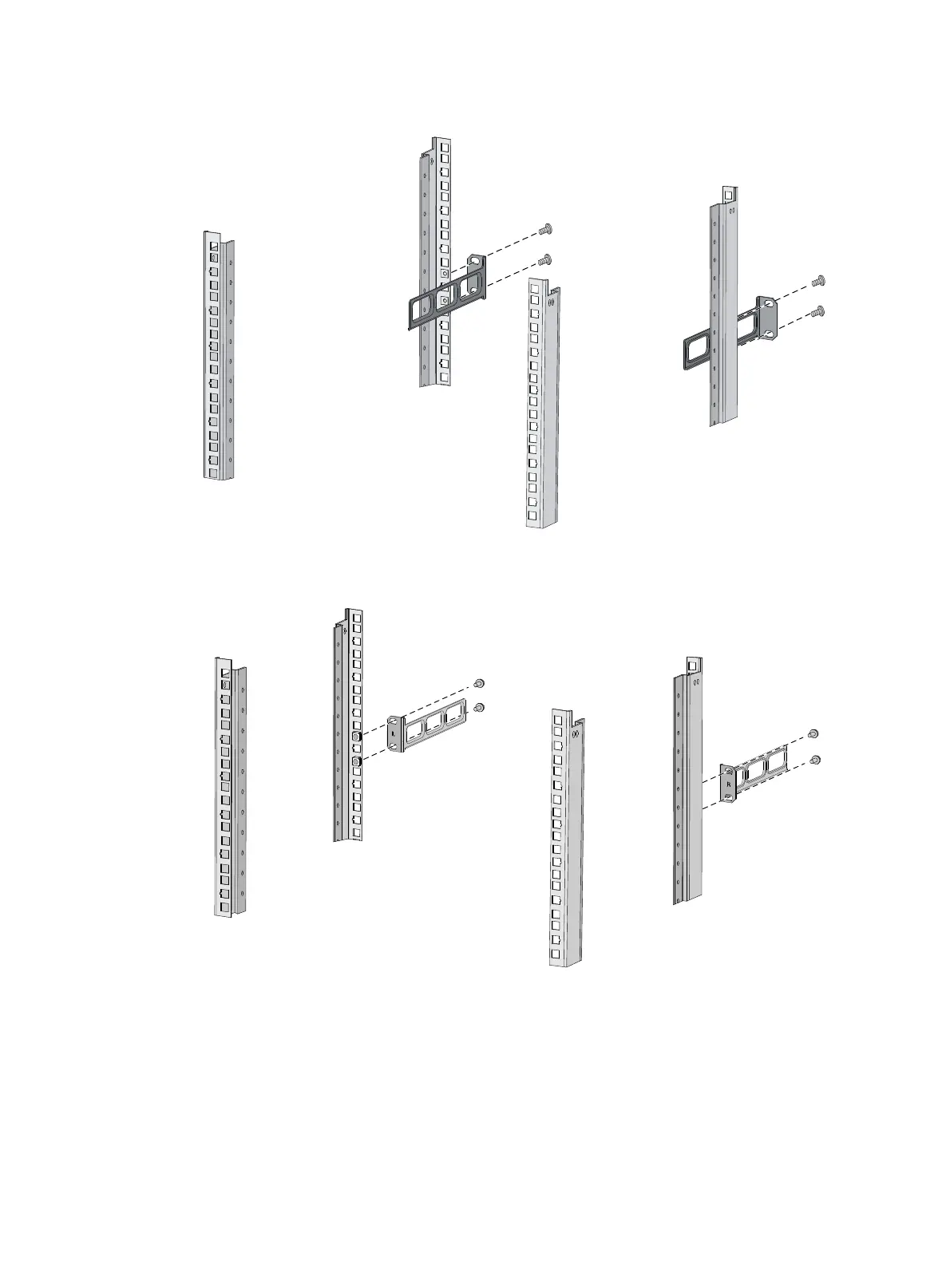

Figure 16 Attaching the rear mounting brackets to a rack with the wide flange inside the rack
Figure 17 Attaching the rear mounting brackets to a rack with the wide flange outside the rack
4. Mount the switch chassis in the rack:
a. One person supports the chassis bottom with one hand, holds the front part of the chassis with
the other hand, and pushes the chassis into the rack gently.
Make sure the load-bearing screws closely contact with the upper edges of the rear mounting
brackets, as shown in Figure 18.
