b. The other person aligns the oval holes in the front brackets with the mounting holes in the front
rack posts, and attaches the front mounting brackets with M6 screws (user supplied) to the front
rack posts.
Make sure the front and rear mounting brackets have securely attached the switch to the rack.

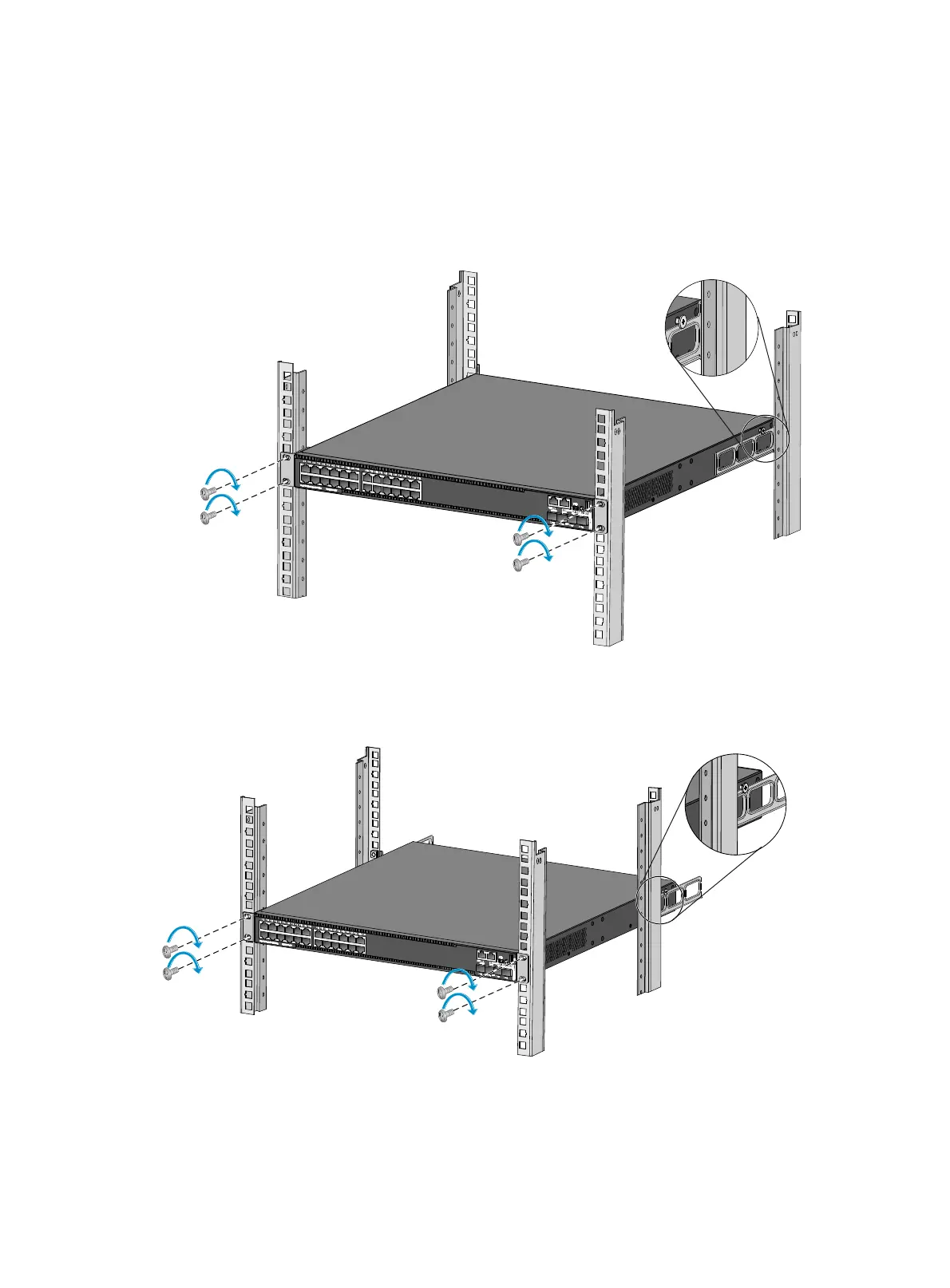

Figure 18 Mounting the switch in the rack (with the wide flange of the mounting brackets inside
the rack)
Figure 19 Mounting the switch in the rack (with the wide flange of the mounting brackets outside the
rack)
