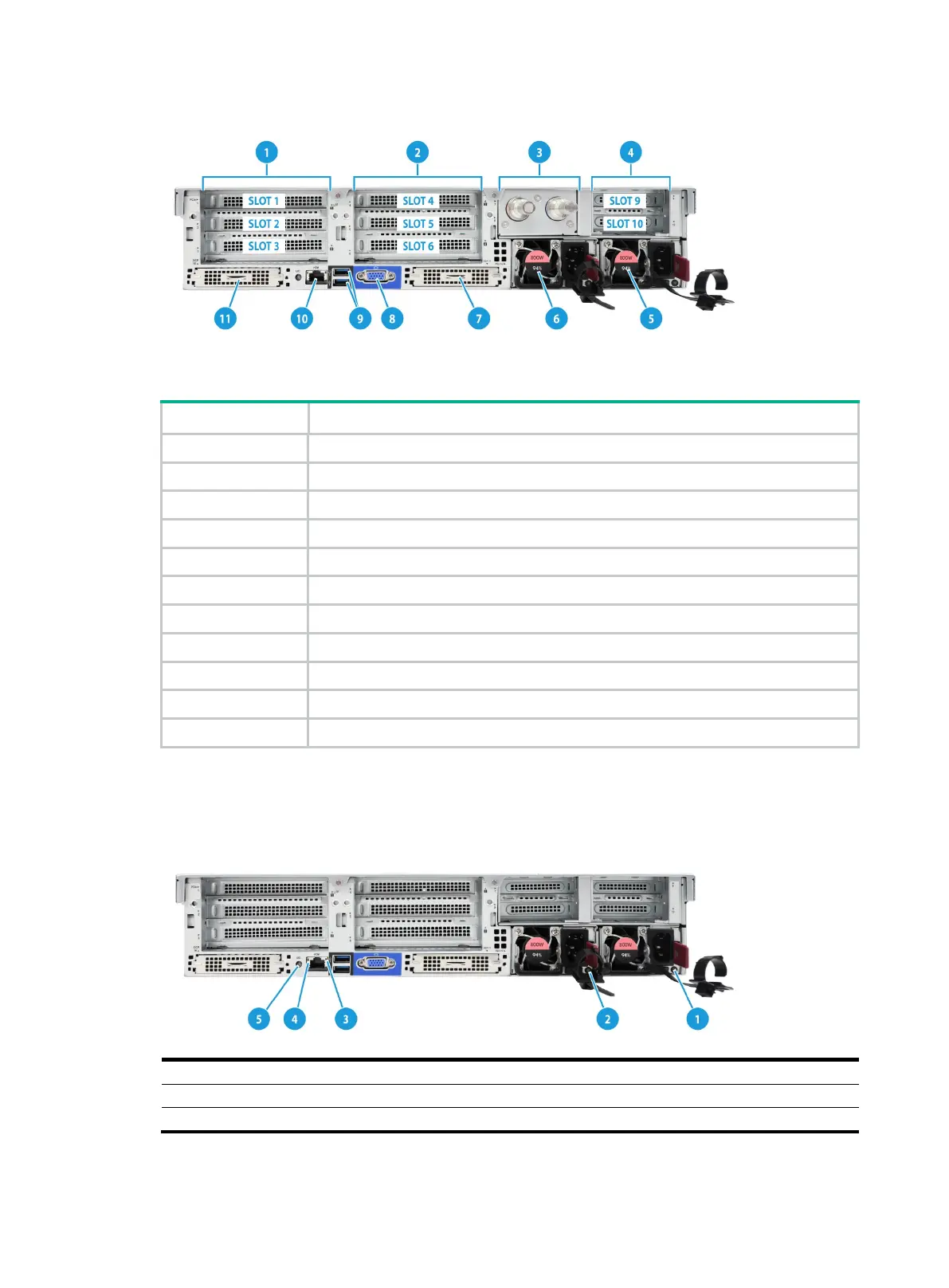

Figure 10 Rear panel components (with liquid-cooled module installed)
Table 10 Rear panel description (with liquid-cooled module installed)
Item
Description
1 PCIe riser bay 1: PCIe slots 1 through 3
2 PCIe riser bay 2: PCIe slots 4 through 6
3
Liquid inlet (blue) and outlet (red)
4 PCIe riser bay 4: PCIe slots 9 and 10
5 Power supply 2
6 Power supply 1
7 OCP 3.0 network adapter or serial & DSD module (in slot 17) (optional)
8 VGA connector
9 Two USB 3.0 connectors
10
HDM dedicated network port (1Gbps, RJ-45, default IP address 192.168.1.2/24)
11 OCP 3.0 network adapter (in slot 16) (optional)
LEDs
Figure 11 Rear panel LEDs
(1) Power supply LED for power supply 2
(2) Power supply LED for power supply 1
(3) Activity LED of the Ethernet port
(4) Link LED of the Ethernet port
(5) UID LED
