H3C UniServer R4900 G6 Ultra - Pca-R4900-4 Gpu-G6

36
PCA-R4900-4GPU-G6

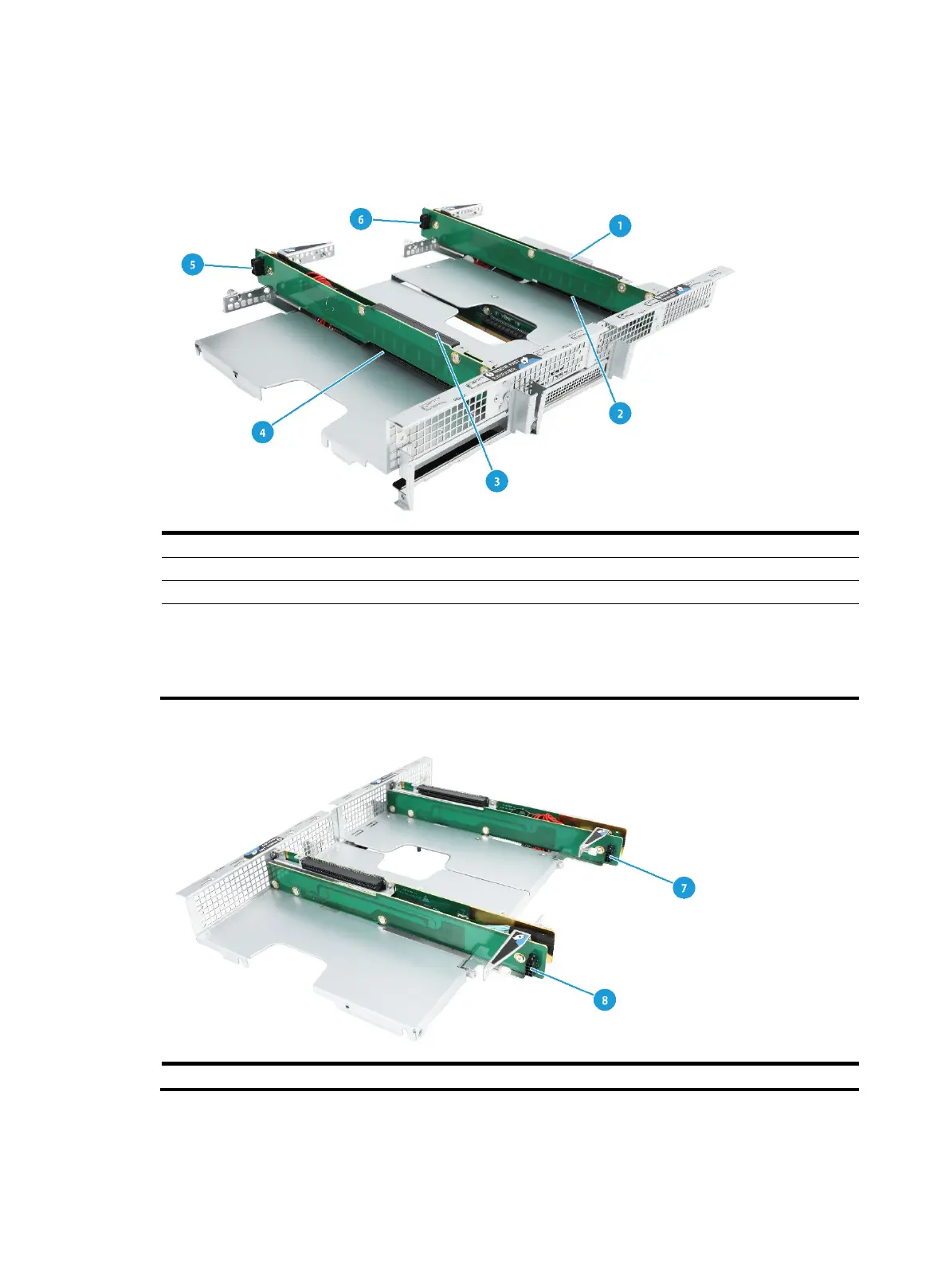

Figure 54 PCA-R4900-4GPU-G6 (1)
(1) PCIe5.0 x16 (8,4,2,1) slot 14
(2) PCIe5.0 x16 (8,4,2,1) slot 13
(3) PCIe5.0 x16 (8,4,2,1) slot 12
(4) PCIe5.0 x16 (8,4,2,1) slot 11
(5) GPU module power connector
(6) GPU module power connector
PCIe5.0 x16 (8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (8,4,2,1): Compatible bus bandwidth, including x8, x4, x2, and x1.
Figure 55 PCA-R4900-4GPU-G6 (2)
(7) GPU module power connector
(8) GPU module power connector
