H3C UniServer R4900 G6 Ultra User Manual

15

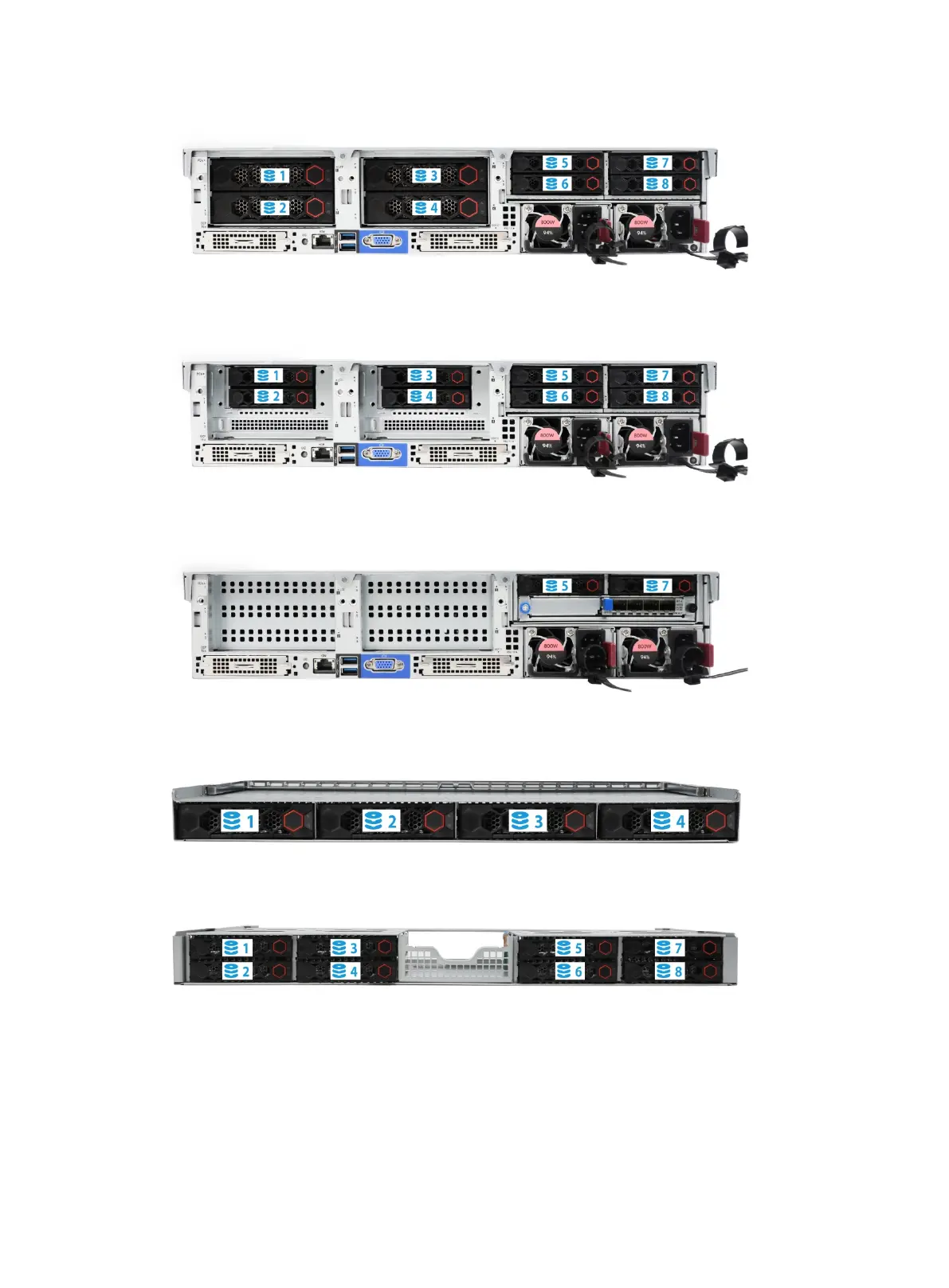

Figure 19 Drive numbering for rear 4LFF+4SFF drive configuration
Figure 20 Drive numbering for rear 2SFF+2SFF+4SFF drive configuration
Figure 21 Drive numbering for the rear OCP adapter configuration
Figure 22 Drive numbering for the mid 4LFF drive configuration
Figure 23 Drive numbering for the mid 8SFF drive configuration
Drive LEDs
The server supports SAS, SATA, and NVMe drives. You can use the LEDs on a drive to identify its
status.
Figure 24 and Figure 25 shows the location of the LEDs on a drive.

H3C UniServer R4900 G6 Ultra Specifications

General

Processor	Intel Xeon Scalable Processors
Maximum Processors	2
Memory Slots	32 DIMM slots
Form Factor	2U Rack Server
Storage	Up to 24x 2.5" or 3.5" drives
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	Up to 8 PCIe slots
