35
(1) SLOT 2 cable
(2) AUX connector
(3) PCIe5.0 x16 (8,4,2,1) slot 8
(4) PCIe5.0 x16 (8,4,2,1) slot 7
(5) Power connector
(6) SLOT 1 cable
PCIe5.0 x16 (8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (8,4,2,1): Compatible bus bandwidth, including x8, x4, x2, and x1.
RC-5HHHL-R5-2U-G5

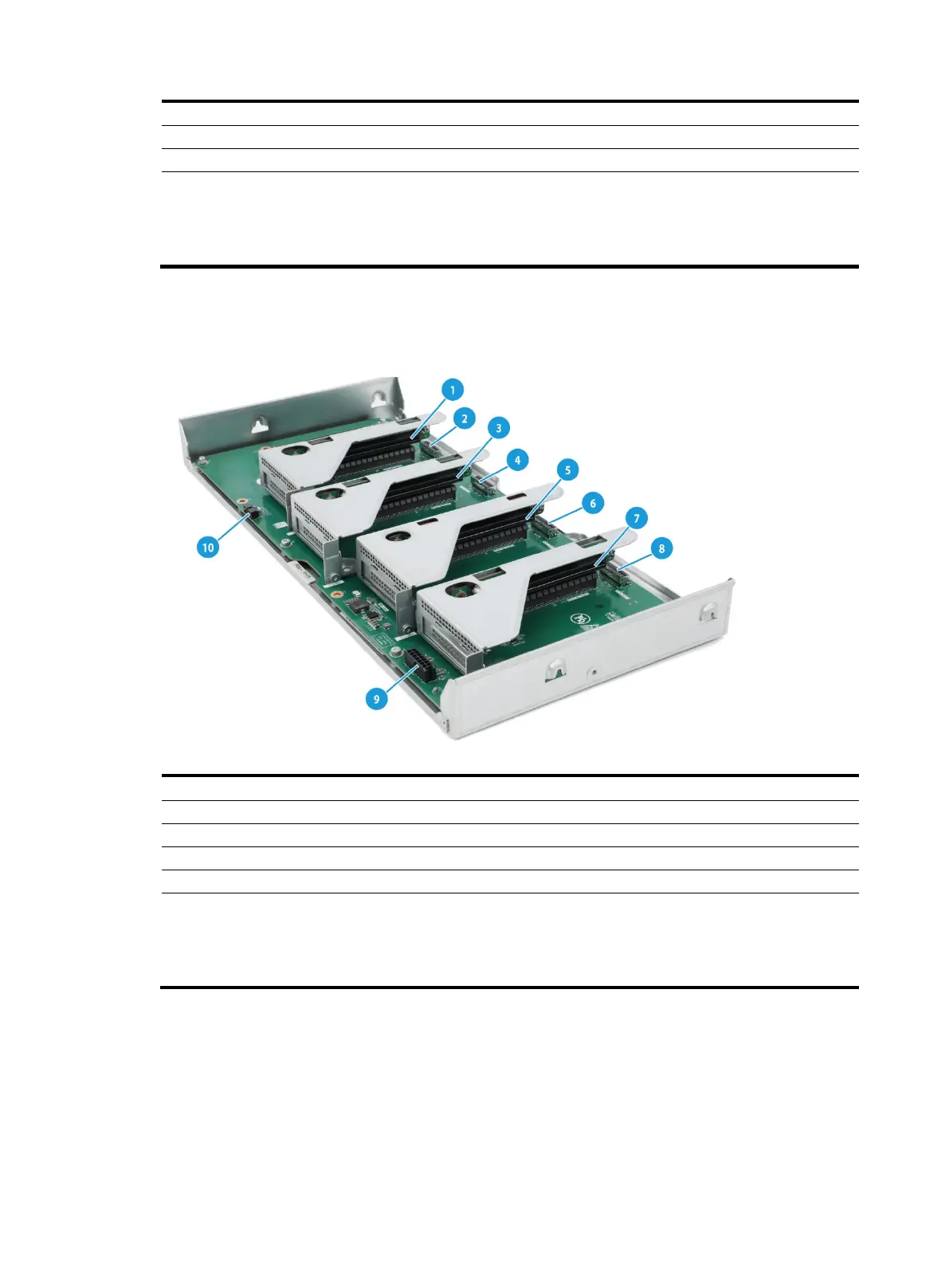

Figure 53 RC-5HHHL-R5-2U-G5
(1) PCIe5.0 x16 (8,4,2,1) slot 12
(2) MCIO connector 2
(3) PCIe5.0 x16 (8,4,2,1) slot 13
(4) MCIO connector 3
(5) PCIe5.0 x16 (8,4,2,1) slot 14
(6) MCIO connector 4
(7) PCIe5.0 x16 (8,4,2,1) slot 15
(8) MCIO connector 5
(9) Power connector
(10) AUX connector
PCIe5.0 x16 (8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (8,4,2,1): Compatible bus bandwidth, including x8, x4, x2, and x1.
