H3C UniServer R4900 G6 Ultra - Rc-Fhhl-2 U-G6

31

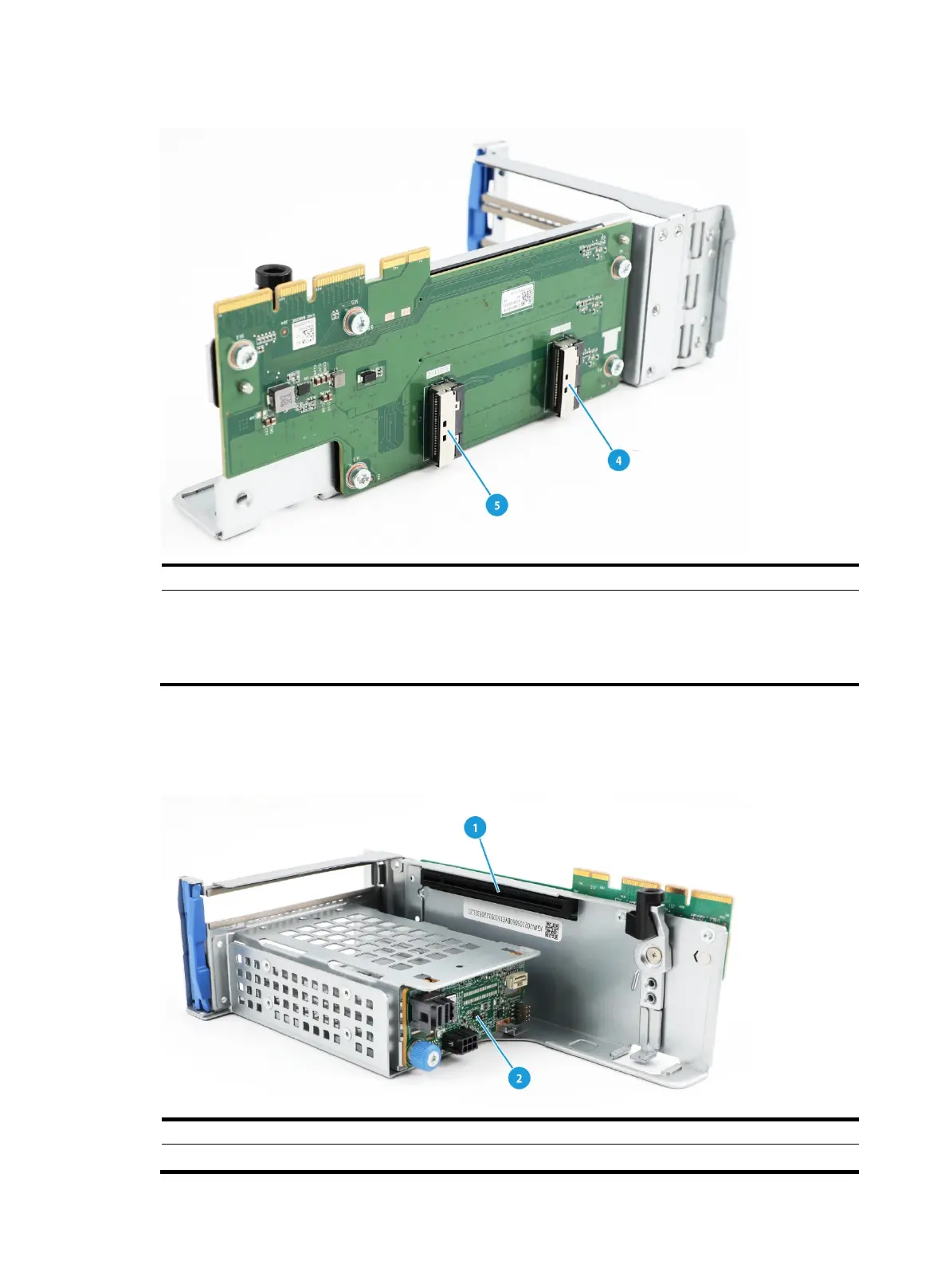

Figure 47 RC-3FHHL-2U-G6 (2)
(4) MCIO connector 1-A
(5) MCIO connector 1-C
PCIe5.0 x16 (16,8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
RC-FHHL-2U-G6
Figure 48 RC-FHHL-2U-G6
(1) PCIe5.0 x16 (16,8,4,2,1) slot 3/6*
(2) Rear 2SFF SAS/SATA drive backplane
PCIe5.0 x16 (16,8,4,2,1) description:
