39

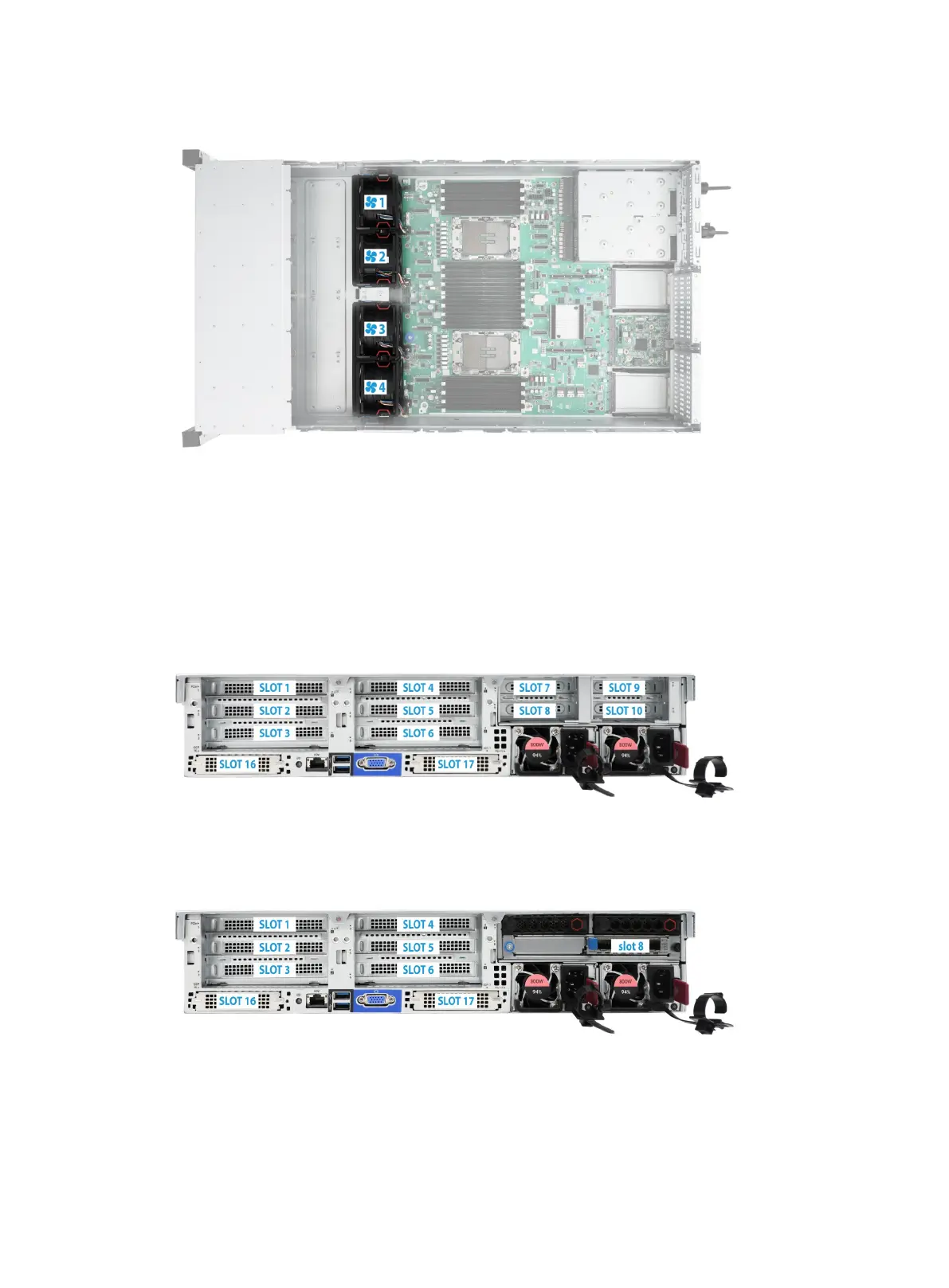

Figure 59 Fan module layout
PCIe slot
The server supports installing mid GPU adapters in the server middle and supports installing riser
cards, rear GPU modules, and OCP 3.0 adapters at the server rear. The PCIe slot numbers vary by
configuration.
Figure 60 PCIe slot numbering when riser cards are installed at the server rear
Figure 61 PCIe slot numbering when 2UniBay drive backplanes and OCP 3.0 adapters are
installed at the server rear
Figure 62 PCIe slot numbering when rear GPU modules are installed
