H3C UniServer R4900 G6 Ultra - Serial & DSD Module; Riser Cards and Pcie Modules

45
(1) VGA connector
(2) Two USB 3.0 connectors
(3) HDM dedicated management interface
(4) UID LED
(5) HDM serial port
(6) iFIST module (optional)
(7) NCSI connector
Serial & DSD module
The serial & DSD module is installed in the slot on the server rear panel. The module provides two
SD slots and forms RAID 1 by default.
To avoid the waste of SD card storage space, install two SD cards that have the same storage
capacity.

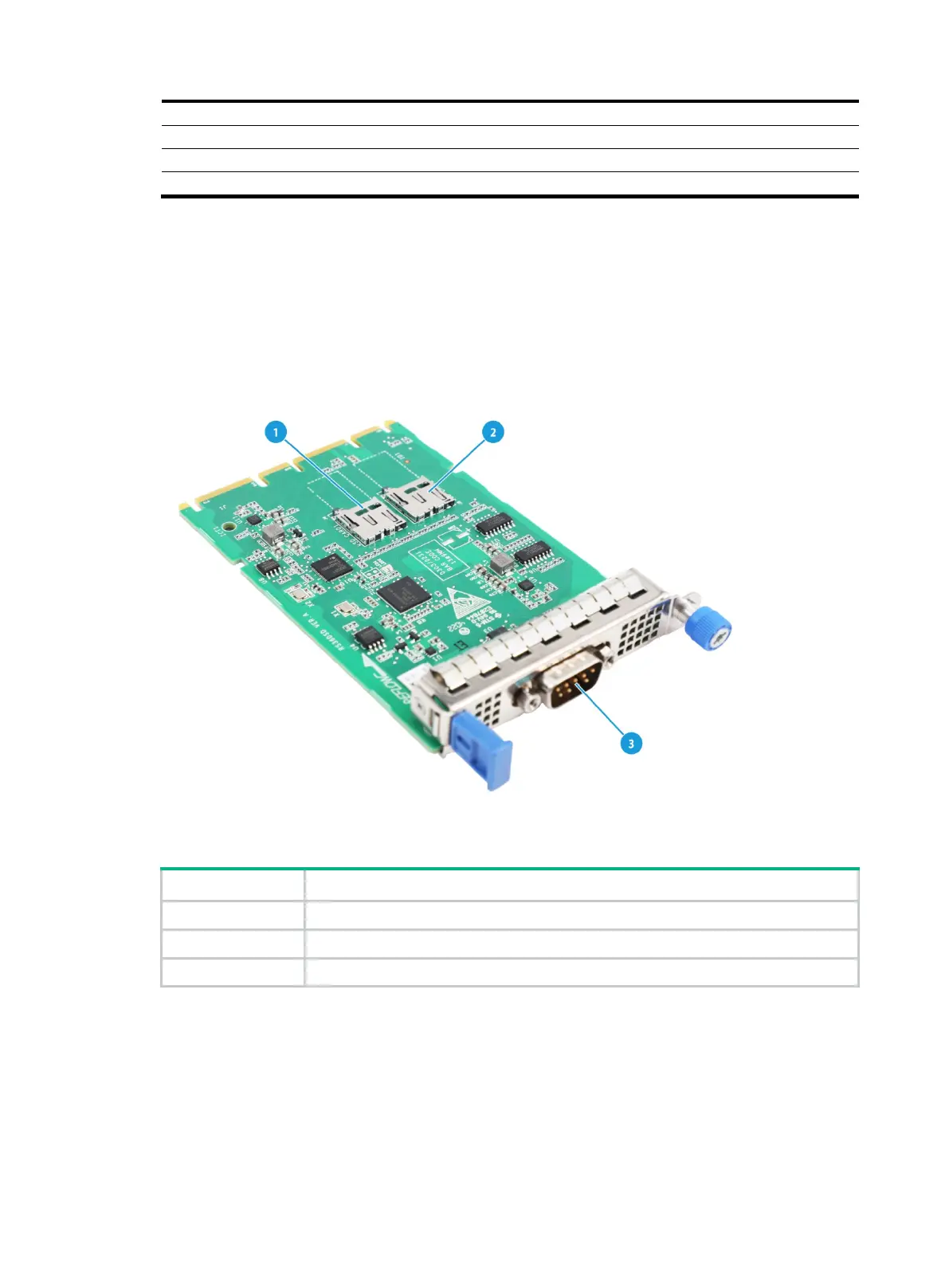

Figure 68 Serial & DSD module
Table 19 Component description
Item
Description
1 SD card slot 1
2 SD card slot 2
3 Serial port
Riser cards and PCIe modules
Typically, the PCIe modules are available in the following standard form factors:
• LP—Low profile.
• FHHL—Full height and half length.
• FHFL—Full height and full length.
