Rear panel
Rear panel view

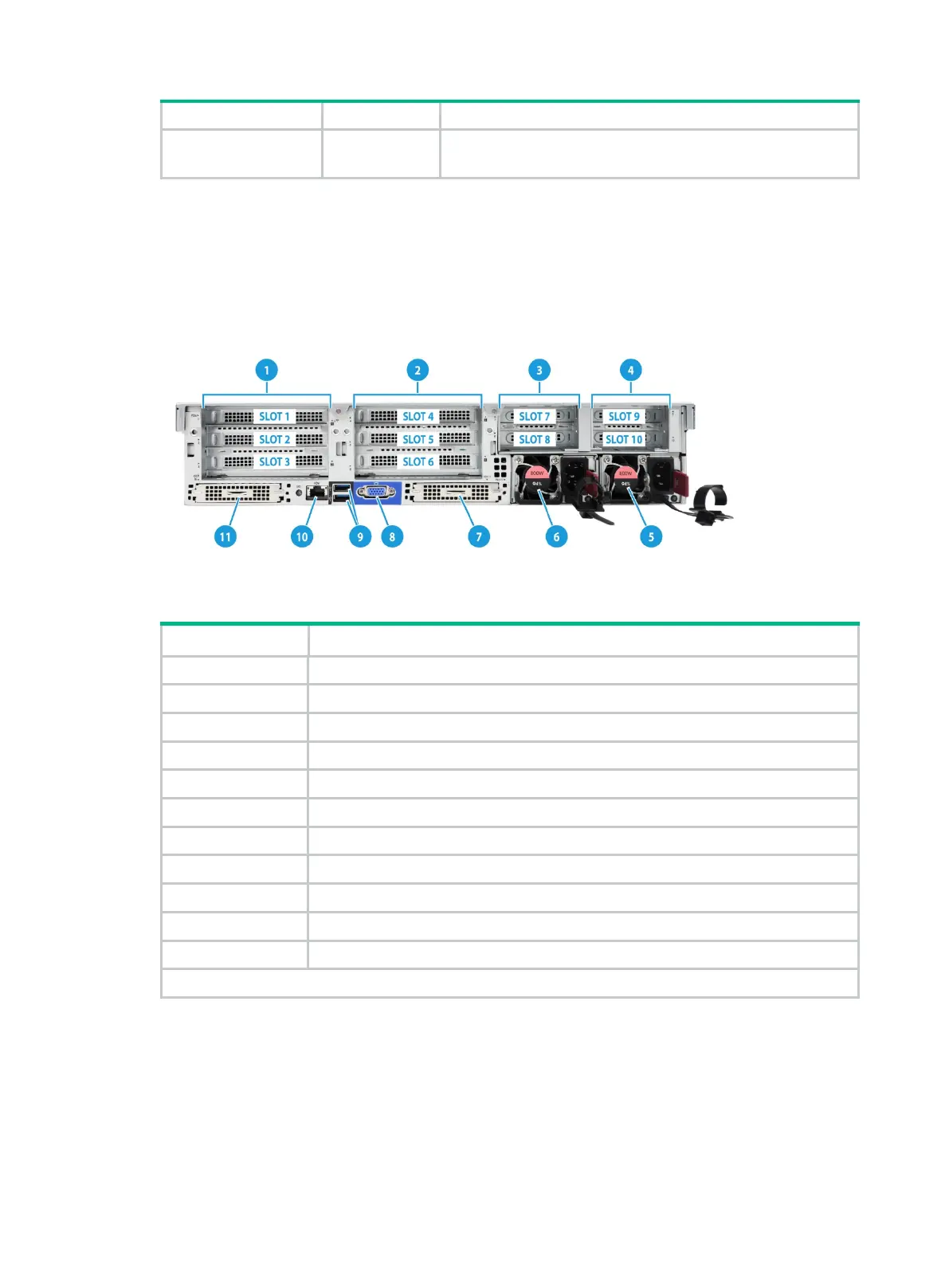

Figure 9 Rear panel components
Table 9 Rear panel description
Item
Description
1 PCIe riser bay 1: PCIe slots 1 through 3
2 PCIe riser bay 2: PCIe slots 4 through 6
3 PCIe riser bay 3: PCIe slots 7 and 8
4 PCIe riser bay 4: PCIe slots 9 and 10
5
Power supply 2
6 Power supply 1
7 OCP 3.0 network adapter/Serial & DSD module (in slot 17) (optional)
8 VGA connector
9 Two USB 3.0 connectors
10 HDM dedicated network port (1Gbps, RJ-45, default IP address 192.168.1.2/24)
11 OCP 3.0 network adapter (in slot 16) (optional)
For more information about the serial & DSD module, see "Serial & DSD module."
