H3C UniServer R4900 G6 Ultra - OCP Adapter

37

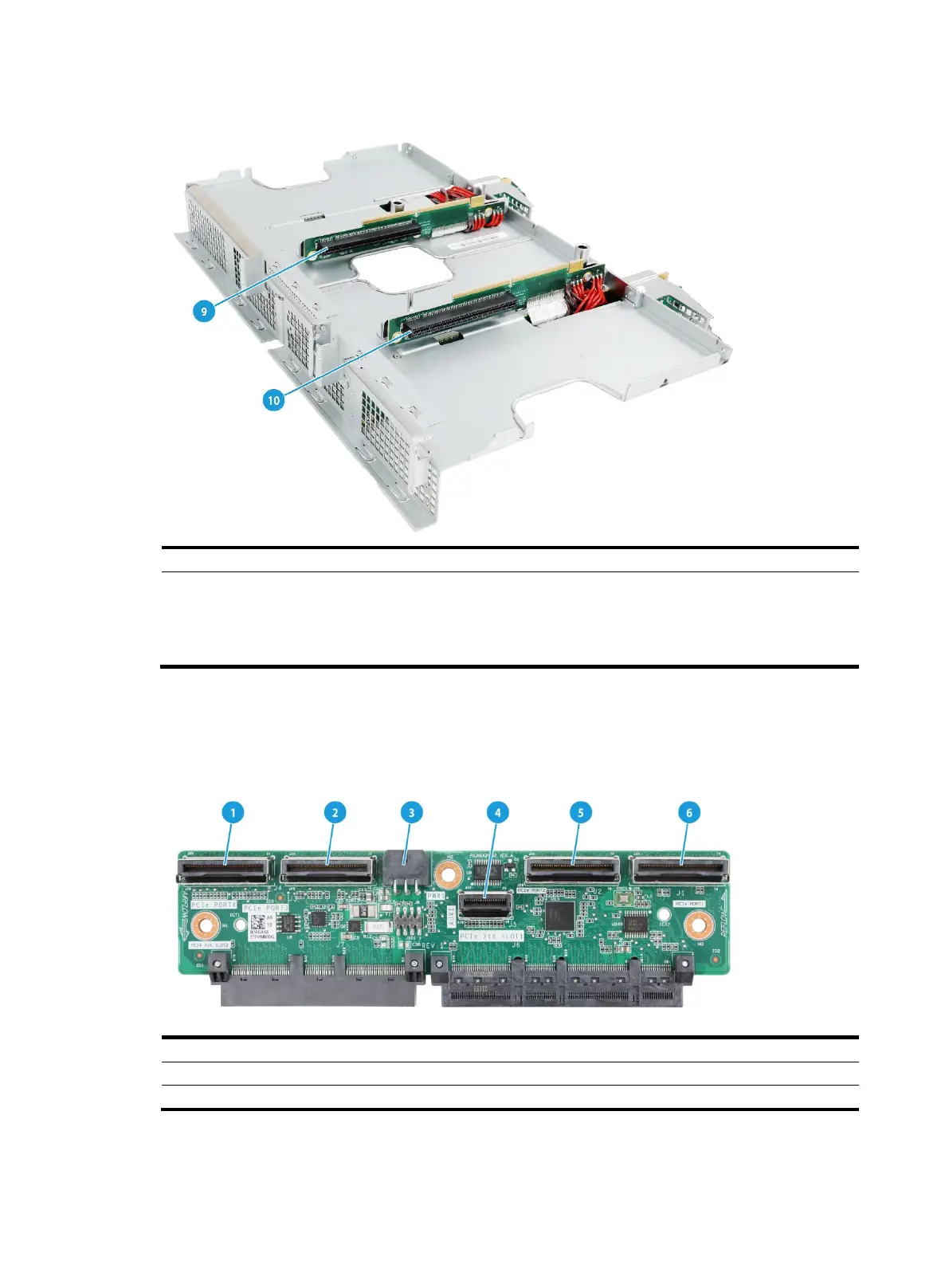

Figure 56 PCA-R4900-4GPU-G6 (3)
(9) PCIe5.0 x16 (16,8,4,2,1) slot 6
(10) PCIe5.0 x16 (16,8,4,2,1) slot 3
PCIe5.0 x16 (16,8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
OCP adapter
Figure 57 OCP adapter
(1) MCIO connector 4
(2) MCIO connector 3
(3) Power connector
(4) AUX connector
(5) MCIO connector 2
(6) MCIO connector 1
