H3C UniServer R4900 G6 Ultra User Manual

23

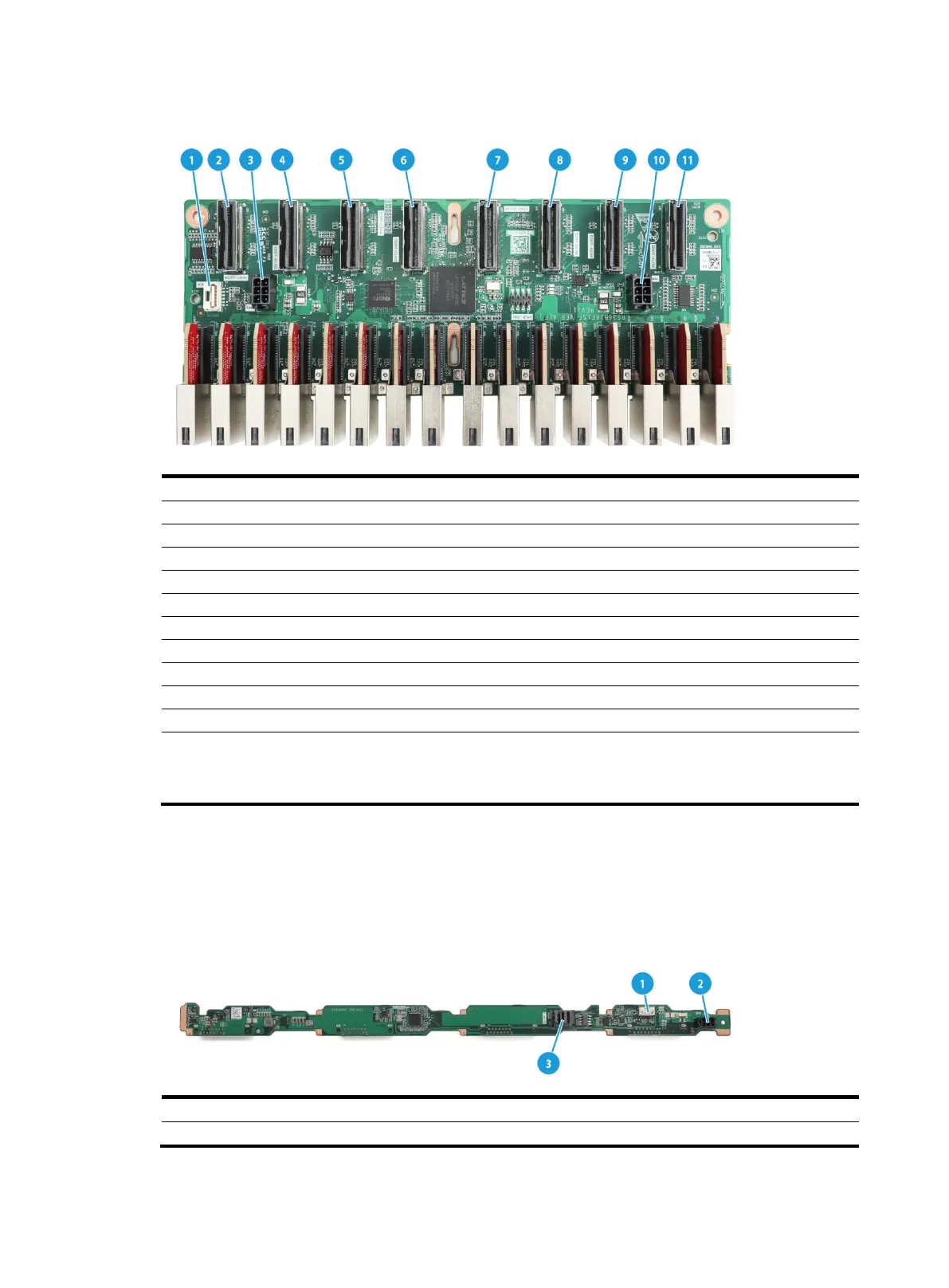

Figure 34 16E1.S drive backplane
(1) AUX connector (AUX 1)
(2) MCIO connector D3/D4 (PCIe5.0 x8)(EDSFF-D3/D4)
(3) Power connector 1 (PWR 1)
(4) MCIO connector D1/D2 (PCIe5.0 x8)(EDSFF-D1/D2)
(5) MCIO connector C3/C4 (PCIe5.0 x8)(EDSFF-C3/C4)
(6) MCIO connector C1/C2 (PCIe5.0 x8)(EDSFF-C1/C2)
(7) MCIO connector B3/B4 (PCIe5.0 x8)(EDSFF-B3/B4)
(8) MCIO connector B1/B2 (PCIe5.0 x8)(EDSFF-B1/B2)
(9) MCIO connector A3/A4 (PCIe5.0 x8)(EDSFF-A3/A4)
(10) Power connector 2 (PWR 2)
(11) MCIO connector A1/A2 (PCIe5.0 x8)(EDSFF-A1/A2)
PCIe5.0 x8 description:
• PCIe5.0: Fifth-generation signal speed.
• x8: Bus bandwidth.
Mid 4LFF SAS/SATA backplane
The PCA-BP-4LFF-2U-M-G6 4LFF drive backplane can be installed in the mid 4LFF drive cage on
the server to support four 3.5-inch SAS/SATA drives.
Figure 35 4LFF SAS/SATA drive backplane
(1) AUX connector (AUX1)
(2) Power connector (PWR 1)
(3) x4 Mini-SAS-HD connector (SAS PORT1)

H3C UniServer R4900 G6 Ultra Specifications

General

Processor	Intel Xeon Scalable Processors
Maximum Processors	2
Memory Slots	32 DIMM slots
Form Factor	2U Rack Server
Storage	Up to 24x 2.5" or 3.5" drives
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	Up to 8 PCIe slots
