H3C UniServer R4900 G6 Ultra - Rc-1 Fhfl-R3-2 U-G6

32
(1) PCIe5.0 x16 (16,8,4,2,1) slot 3/6*
(2) Rear 2SFF SAS/SATA drive backplane
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
NOTE:
slot
3/6: When the riser card is installed in PCIe riser card slot 1, this slot corresponds to PCIe slot
3.
When
the riser card is installed in PCIe riser card slot 2, this slot corresponds to PCIe slot
6. This rule
applies to all the other PCIe riser card slots. For information about PCIe slots, see "Rear panel view."
RC-1FHFL-R3-2U-G6

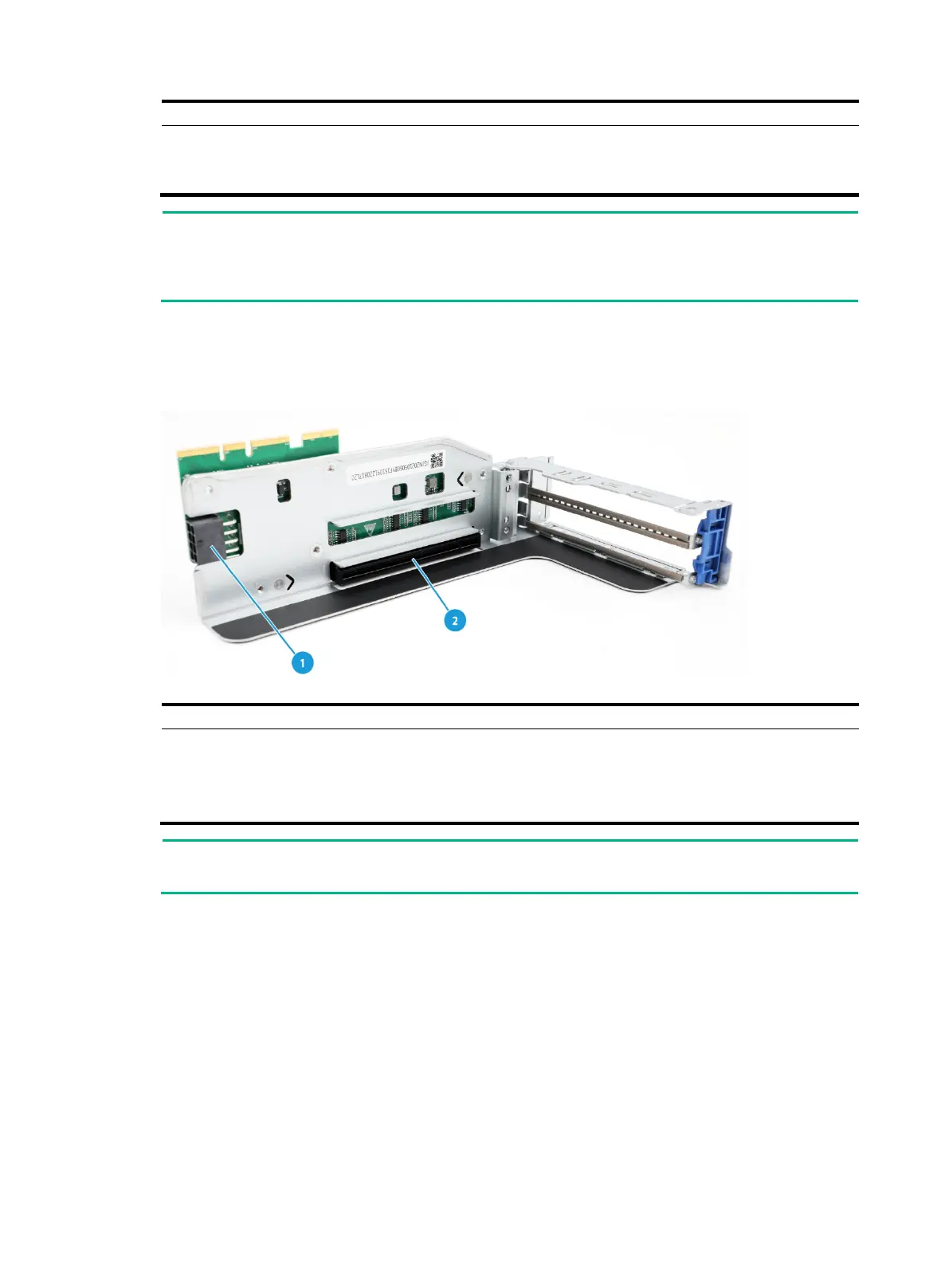

Figure 49 RC-1FHFL-R3-2U-G6
(1) GPU module power connector
(2) PCIe5.0 x16 (16,8,4,2,1) slot 7
PCIe5.0 x16 (16,8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
NOTE:
This type is riser card is not supported when liquid-cooled modules are installed on the server.
