H3C UniServer R4900 G6 Ultra - Front Panel; Front Panel View of the Server

2
Item
Description
(37) CPU heatsink Cools the processor.
(38) CPU liquid-cooled module Cools the processor.
Front panel
Front panel view of the server

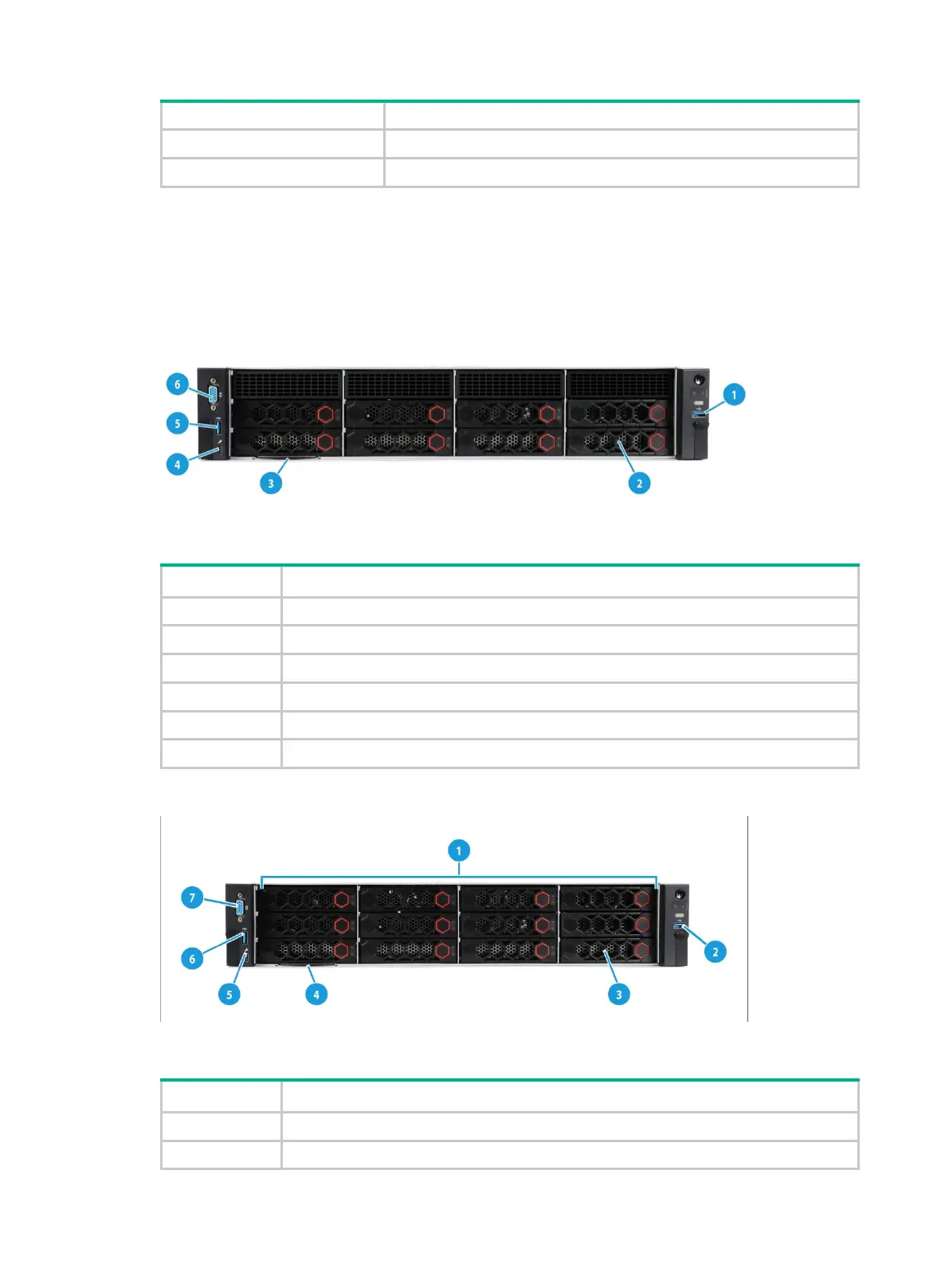

Figure 2 8LFF front panel
Table 1 8LFF front panel description
Item
Description
1 USB 3.0 connector
2 Drive or LCD mart management module (optional)
3 Serial label pull tab
4 Dedicated management connector
5 USB 2.0 connector
6 VGA connector
Figure 3 12LFF front panel
Table 2 12LFF front panel description
Item
Description
1 12LFF UniBay drives*
2 USB 3.0 connector
