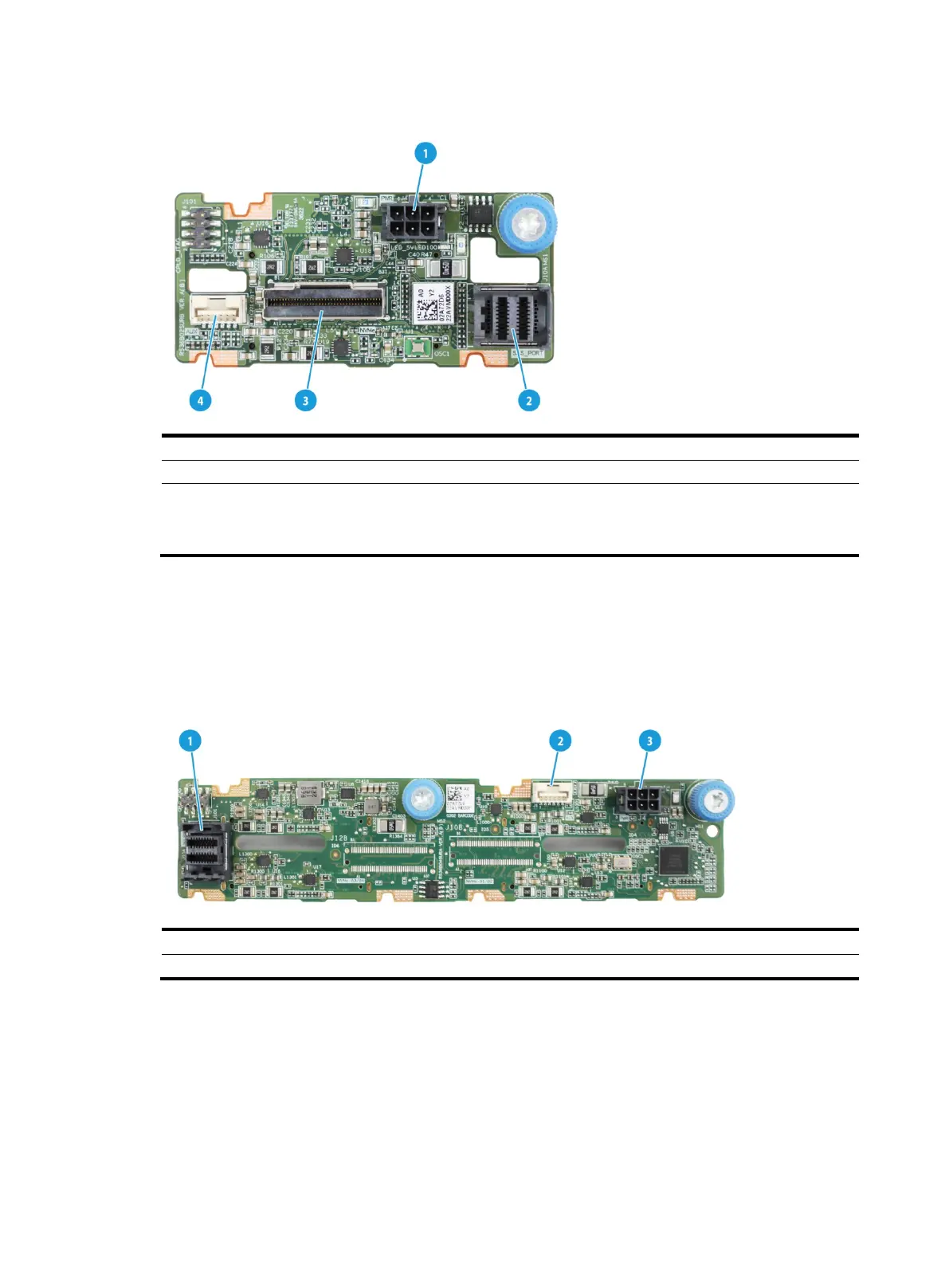

Figure 40 2SFF UniBay drive backplane
(1) Power connector (PWR)
(2) x4 Mini-SAS-HD connector (SAS PORT)
(3) SlimSAS connector (PCIe4.0 x8)(NVME)
(4) AUX connector (AUX)
PCIe4.0 x8 description:
• PCIe4.0: Fifth-generation signal speed.
• x8: Bus bandwidth.
Rear 4SFF SAS/SATA drive backplane
The PCA-BP-4SFF-2U-G6 4SFF SAS/SATA drive backplane is installed at the server rear to support
four 2.5-inch SAS/SATA drives.
Figure 41 4SFF SAS/SATA drive backplane
(1) x4 Mini-SAS-HD connector (SAS PORT)
(2) AUX connector (AUX)
(3) Power connector (PWR)
Rear 4SFF UniBay drive backplane
The PCA-BP-4SFF-4UniBay-2U-G6 4SFF UniBay drive backplane is installed at the server rear to
support four 2.5-inch SAS/SATA/NVMe drives.

H3C UniServer R4900 G6 Ultra Specifications

General

Processor	Intel Xeon Scalable Processors
Maximum Processors	2
Memory Slots	32 DIMM slots
Form Factor	2U Rack Server
Storage	Up to 24x 2.5" or 3.5" drives
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	Up to 8 PCIe slots
