H3C UniServer R4900 G6 Ultra User Manual

18
Front 8SFF UniBay drive backplane
The PCA-BP-8UniBay-2U-G6 8SFF UniBay drive backplane can be installed at the server front to
support eight 2.5-inch SAS/SATA/NVMe drives.

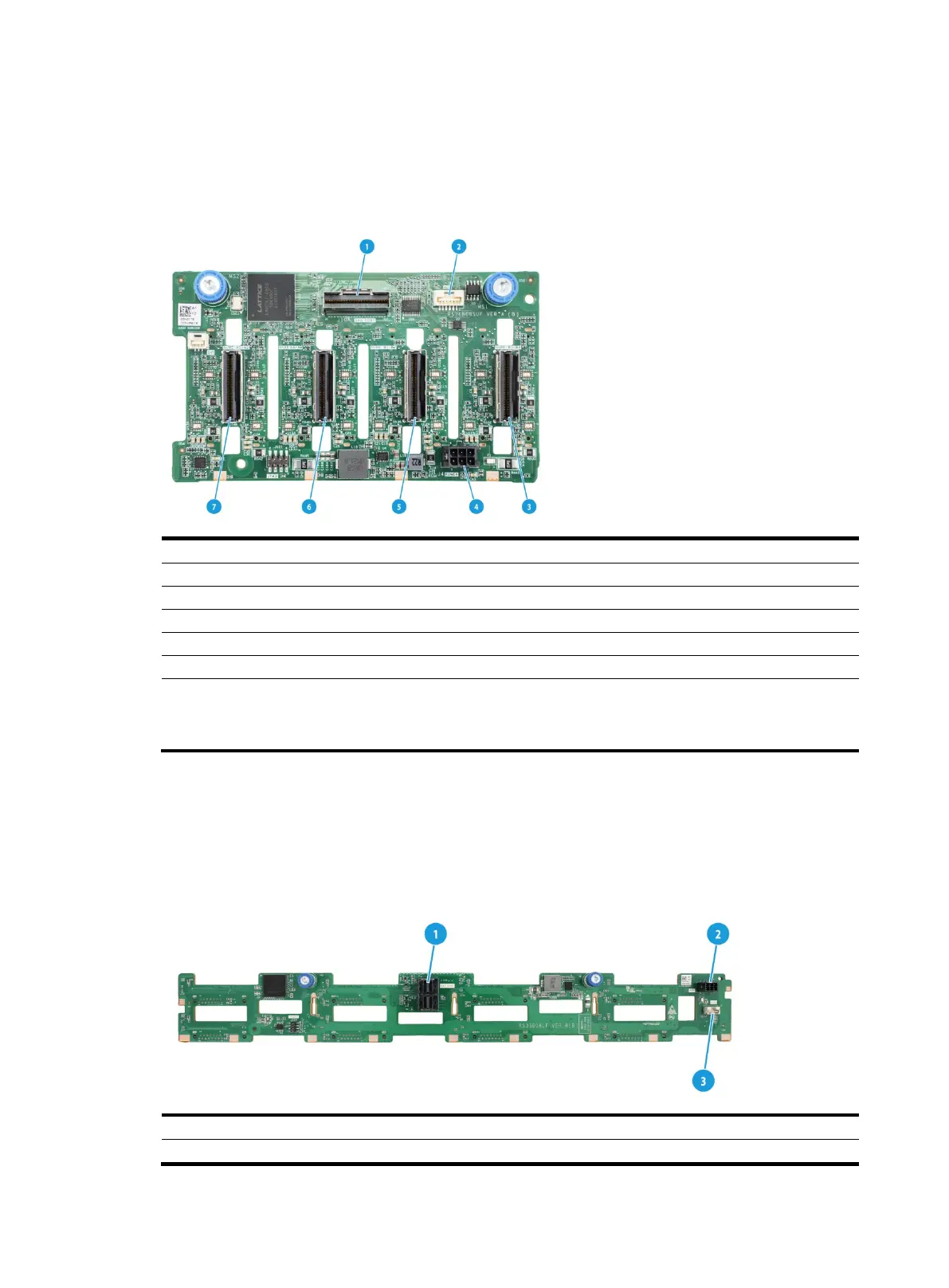

Figure 27 8SFF UniBay drive backplane
(1) x8 SlimSAS connector (SAS PORT)
(2) AUX ( AUX)
(3) MCIO connector B3/B4 (PCIe5.0 x8)(NVMe B3/B4)
(4) Power connector (POWER)
(5) MCIO connector B1/B2 (PCIe5.0 x8)(NVMe B1/B2)
(6) MCIO connector A3/A4 (PCIe5.0 x8)(NVMe A3/A4)
(7) MCIO connector A1/A2 (PCIe5.0 x8)(NVMe A1/A2)
PCIe5.0 x8 description:
• PCIe5.0: Fifth-generation signal speed.
• x8: Bus bandwidth.
Front 8LFF SAS/SATA drive backplane
The PCA-BP-8LFF-2U-G6 8LFF SAS/SATA drive backplane can be installed at the server front to
support eight 3.5-inch SAS/SATA drives.
Figure 28 8LFF SAS/SATA drive backplane
(1) X8 Mini-SAS-HD connector (SAS PORT)
(2) Power connector (PWR)
(3) AUX connector (AUX)

H3C UniServer R4900 G6 Ultra Specifications

General

Processor	Intel Xeon Scalable Processors
Maximum Processors	2
Memory Slots	32 DIMM slots
Form Factor	2U Rack Server
Storage	Up to 24x 2.5" or 3.5" drives
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	Up to 8 PCIe slots
