RC-3FHHL-2U-G6

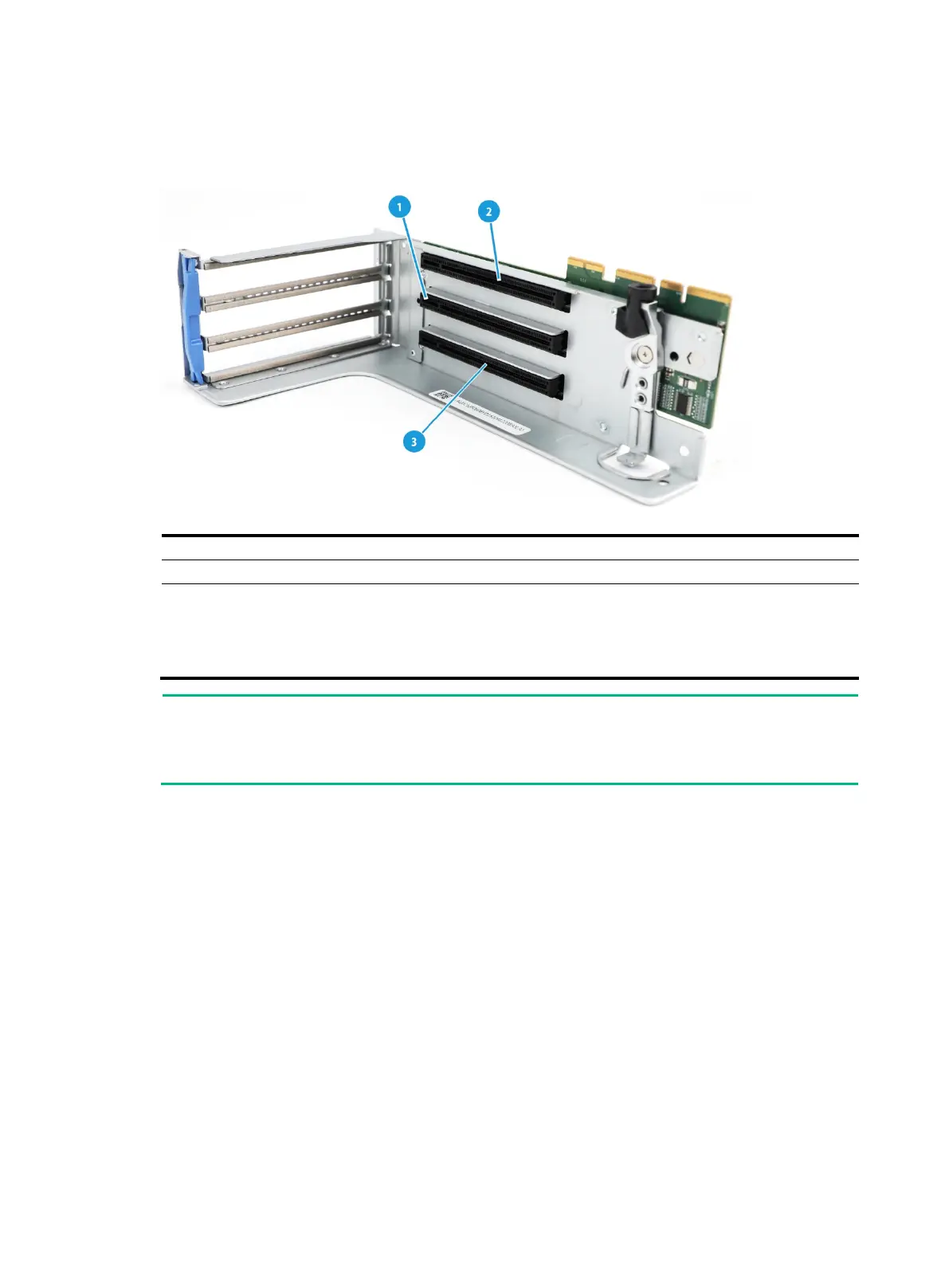

Figure 46 RC-3FHHL-2U-G6 (1)
(1) PCIe5.0 x16 (16,8,4,2,1) slot 2/5
(2) PCIe5.0 x16 (16,8,4,2,1) slot 3/6
(3) PCIe5.0 x16 (16,8,4,2,1) slot 1/4*
PCIe5.0 x16 (16,8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
• x16: Connector bandwidth.
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
1/4: When the riser card is installed in PCIe riser card slot 1, this slot corresponds to PCIe slot 1
the riser card is installed in PCIe riser card slot 2, this slot corresponds to PCIe slot
2. This rule
applies to all the other PCIe riser card slots. For information about PCIe slots, see "Rear panel view."
