Installation with a power cord
• Connect the power cord to an electrical box with applicable rated switch and protective earth
ground.
• Connected through a cable gland (strain relief) that holds the power cable securely and seals the
enclosure when tightened.
• Connect equipment in accordance with local, state or national electrical codes.
Refer to the power requirements in Specifications on page 3. The analyzer must have a dedicated,
unswitched circuit. Do not connect the analyzer to a circuit that supplies power to other equipment,
so power is not accidentally removed from the analyzer. Connect the AC power as follows:
1. Open the analyzer. Refer to Open the analyzer door on page 13.

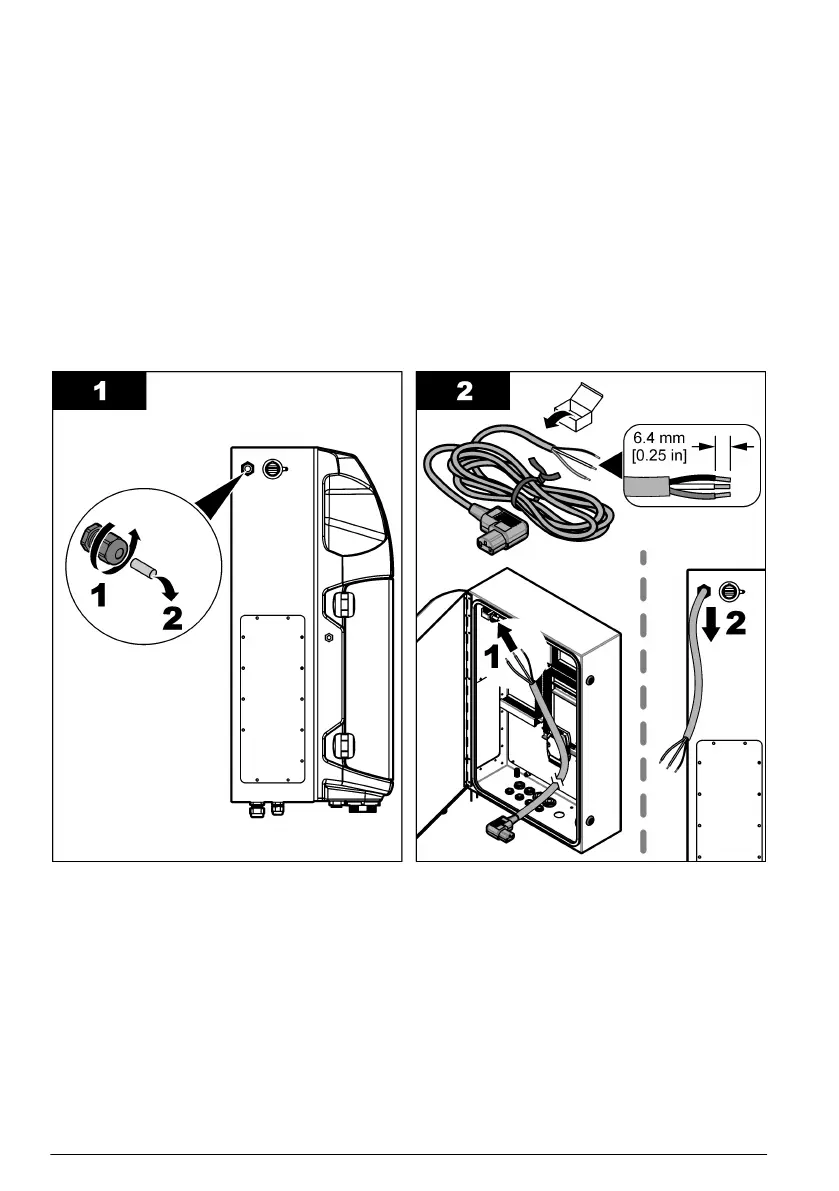

2. Put the power cord through the strain relief fittng for the AC power cord. Refer to the illustrated
steps that follow and Table 4.
3. Tighten the strain relief fitting.
4. Close the analyzer.
16 English
