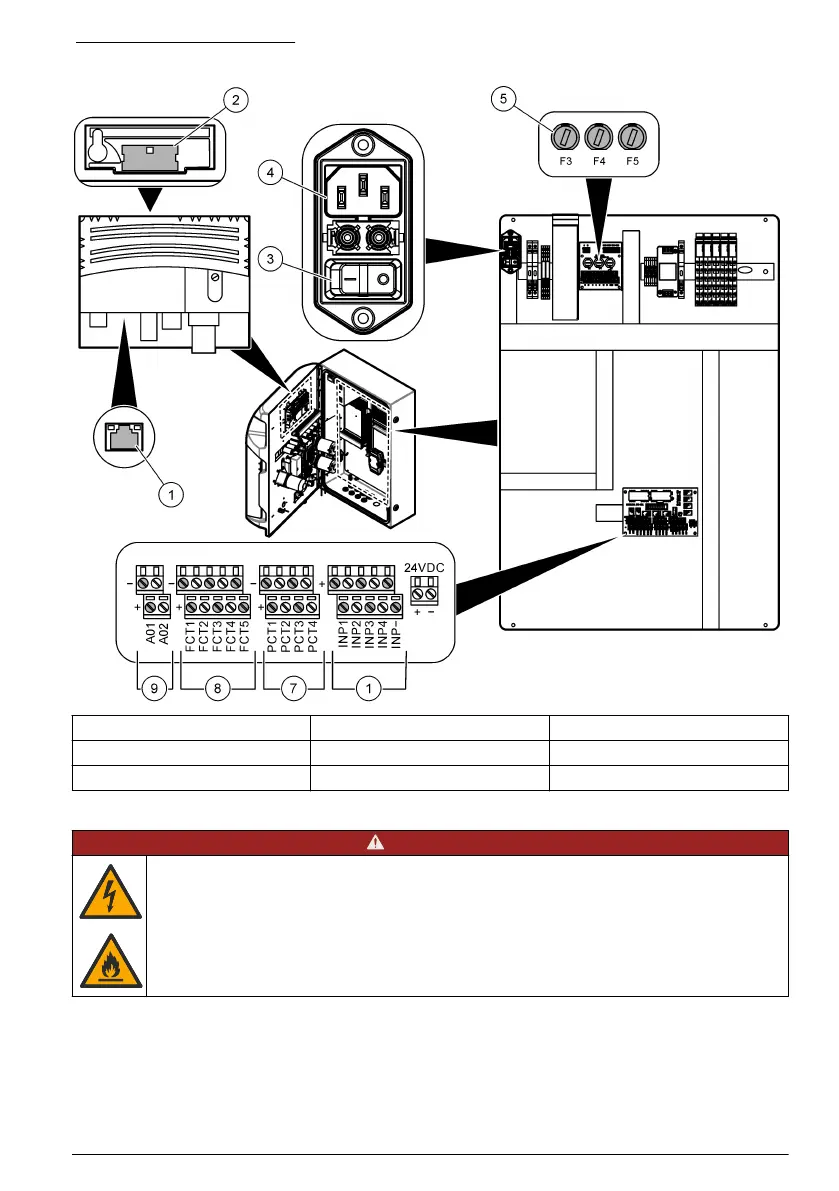

Figure 5 Electrical overview
1 Ethernet connection 4 Power receptacle 7 Power contacts (digital outputs)
2 Battery cover 5 Fuses 8 Free contacts (digital output)
3 Power switch 6 Digital inputs 9 Analog outputs
5.3.3 Connect to AC power
D A N G E R
Make sure that the supplied cord meets the applicable country code requirements.
Connect to AC power with the supplied AC power cord. Make sure that a circuit breaker with
sufficient electrical current capacity is installed in the power line.
